Ignition Timing Connector: Locations

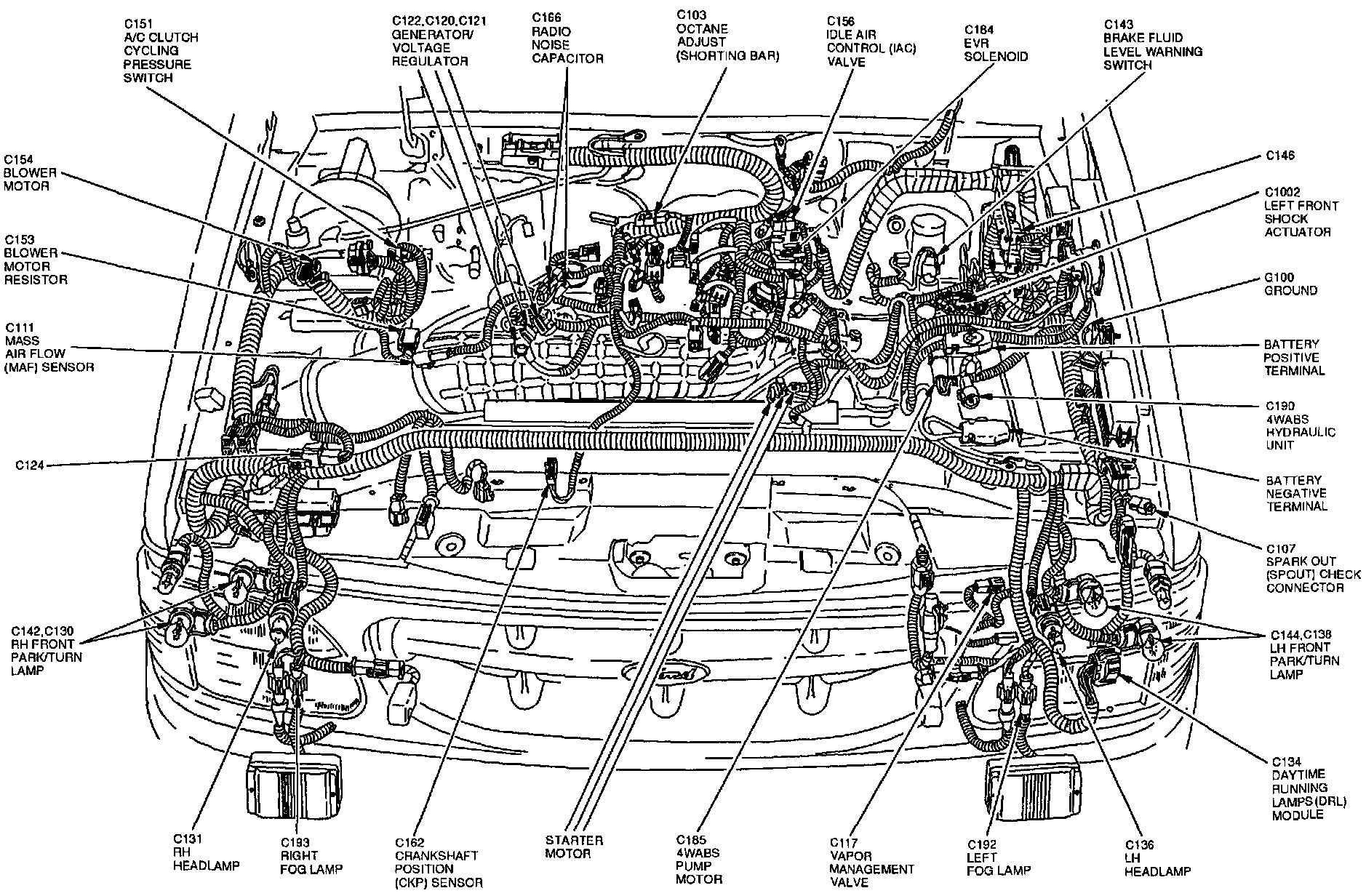

Connector Location:
The SPOUT check connector (C107) is located at the LF corner of engine compartment.
