Ignition Control Module
Ignition Control Module

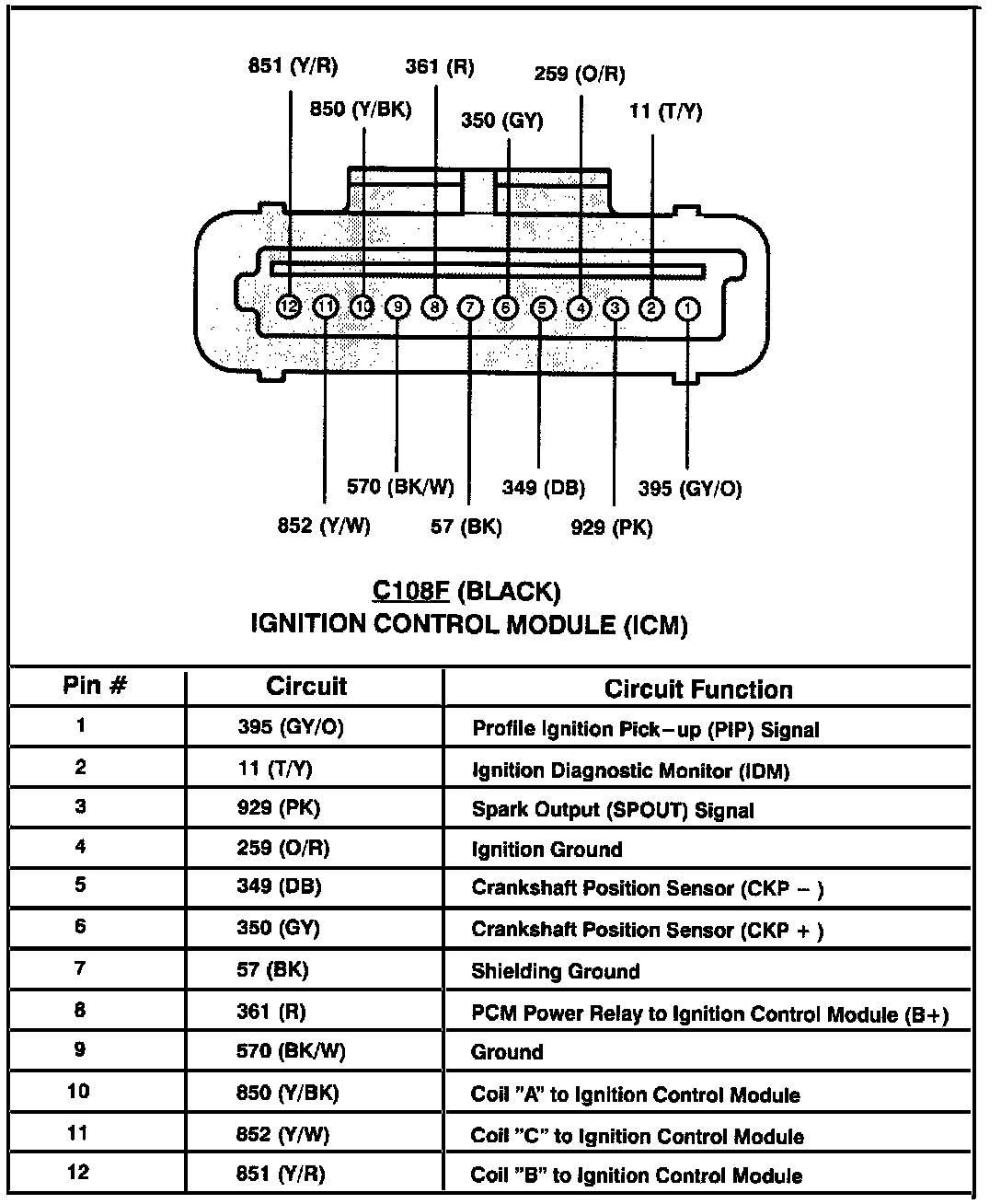

Ignition Control Module:
Connector View

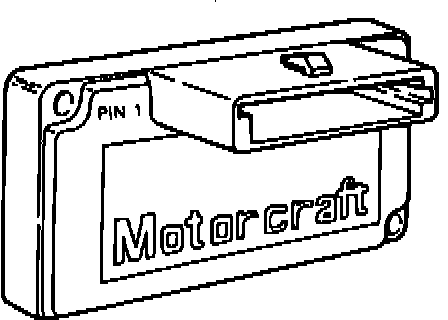

Electronic Distributorless Ignition System (EDIS) Module:
Ignition Control Module
(ICM)

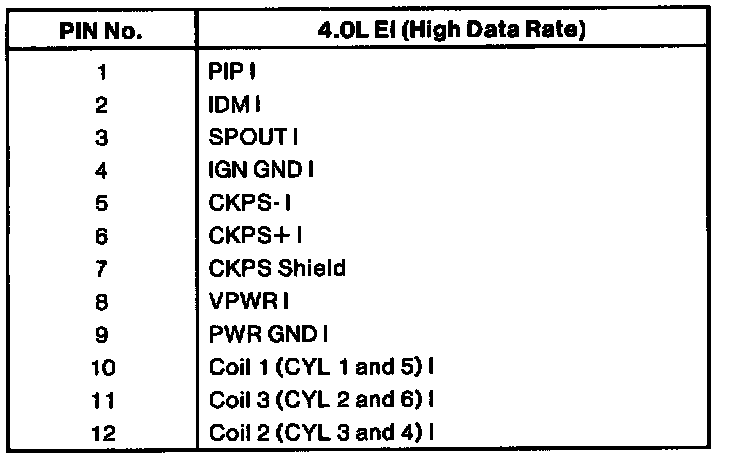

Pin-Out
