Home >> Ford >> 1995 >> Explorer 2WD V6-245 4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module >> Generic Electronic Module

Generic Electronic Module

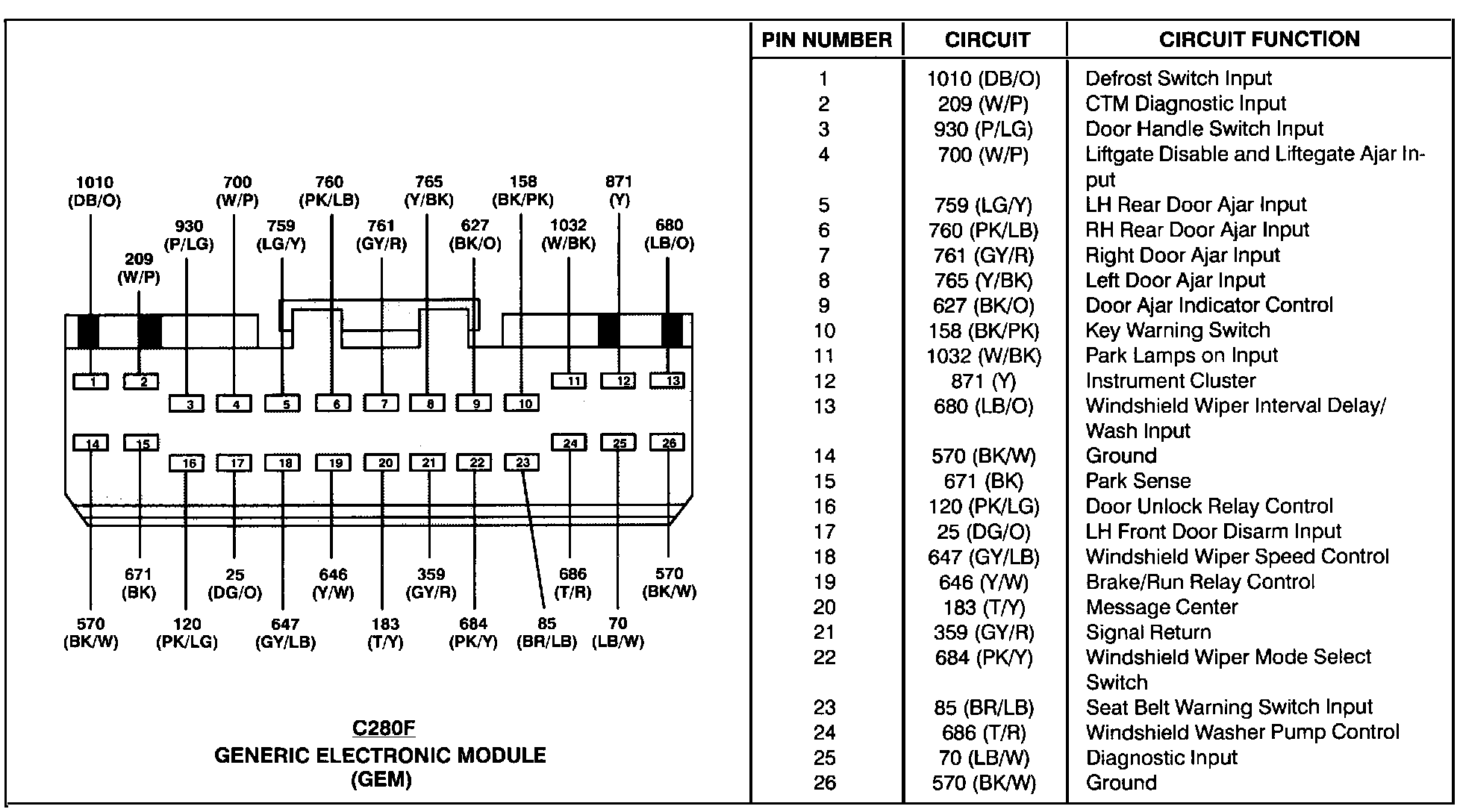

Generic Electronic Module (C280F):

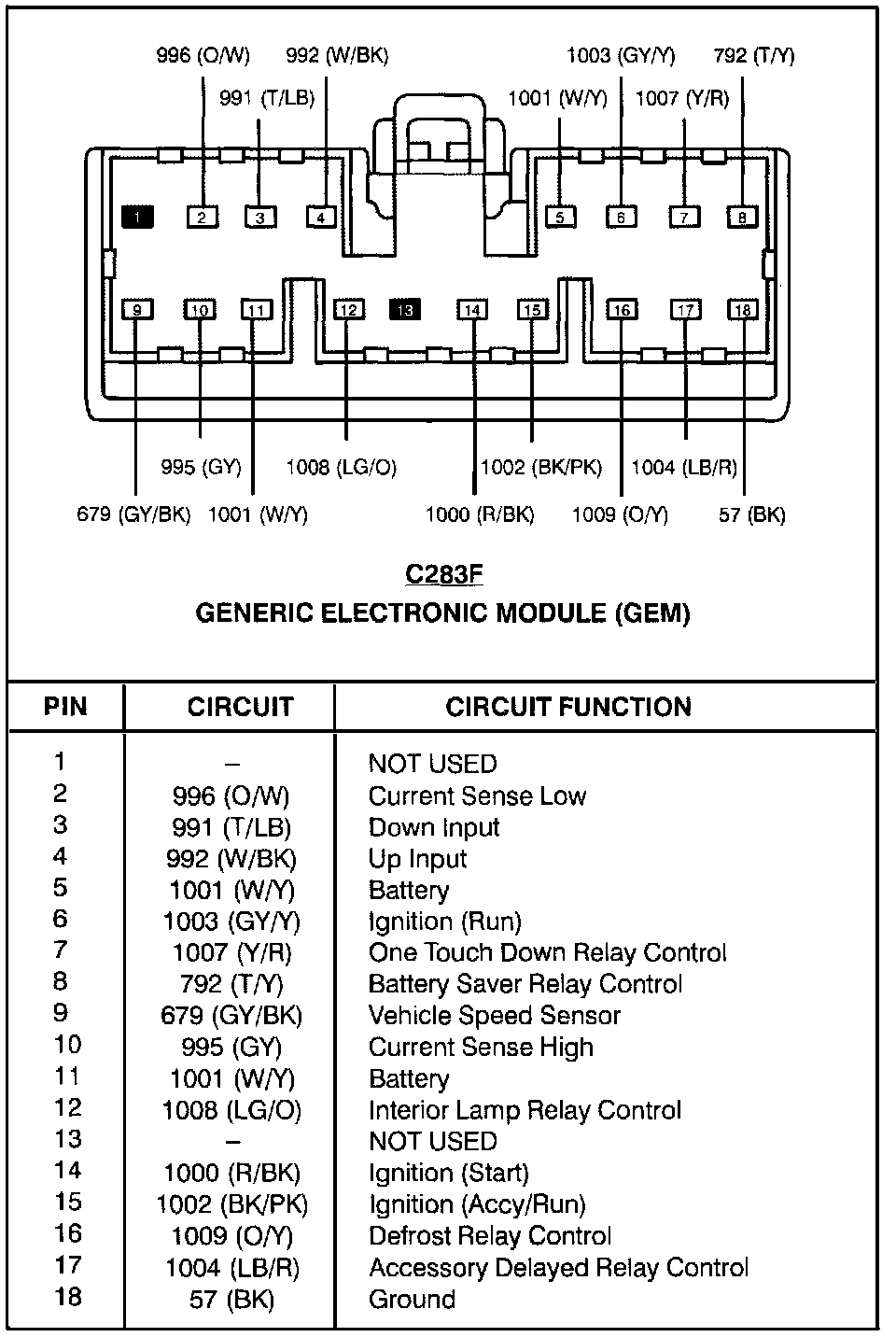

Generic Electronic Module (C283F):

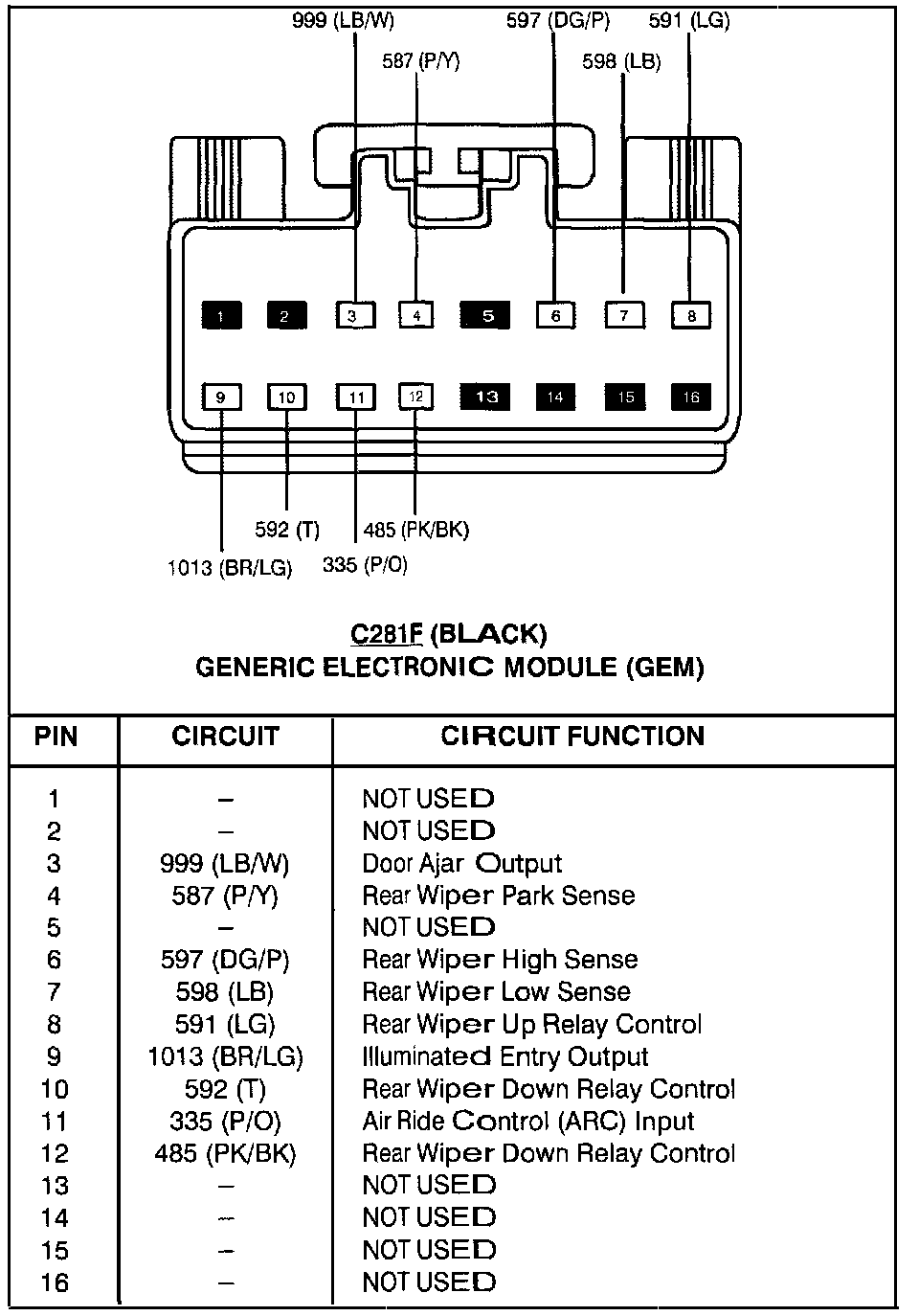

Generic Electronic Module (C281F):

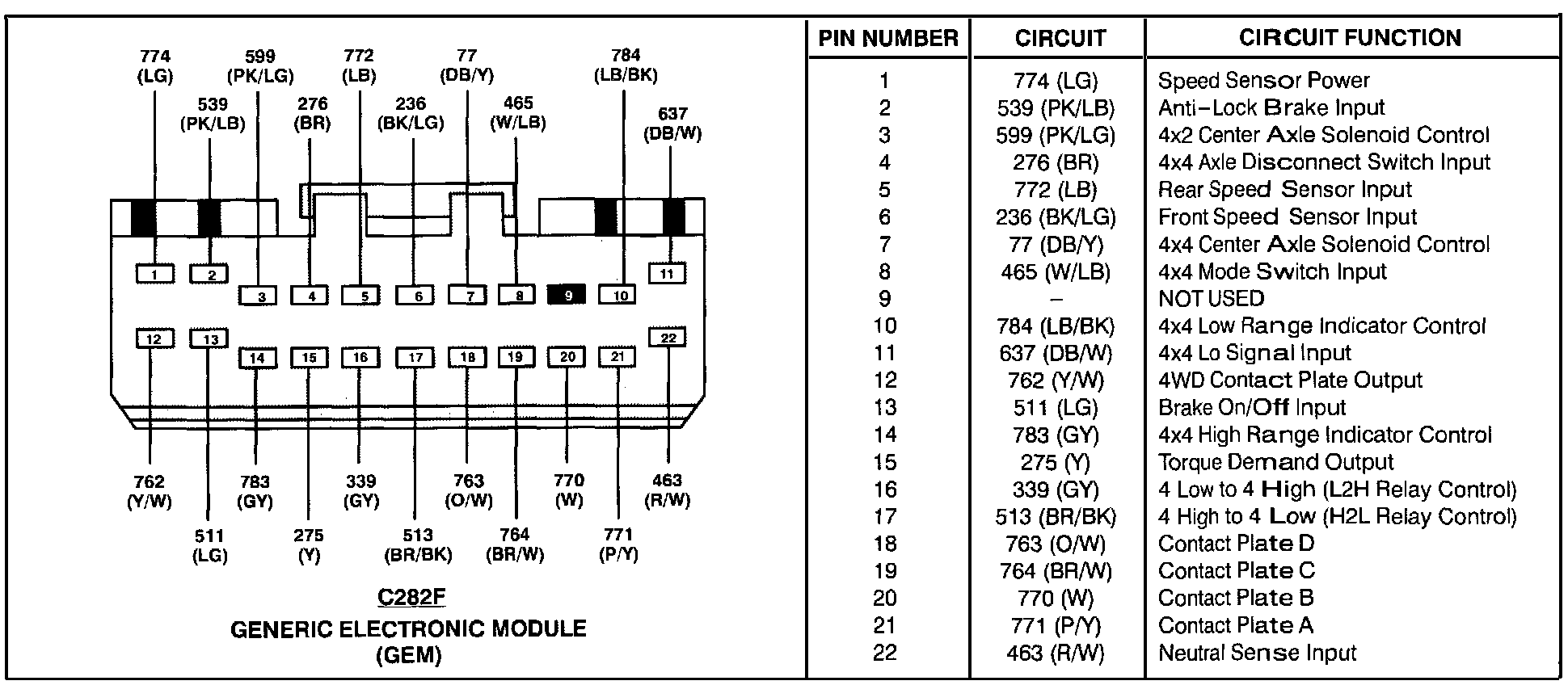

Generic Electronic Module (C282F):
