Air Bag Control Module
Air Bag Control Module

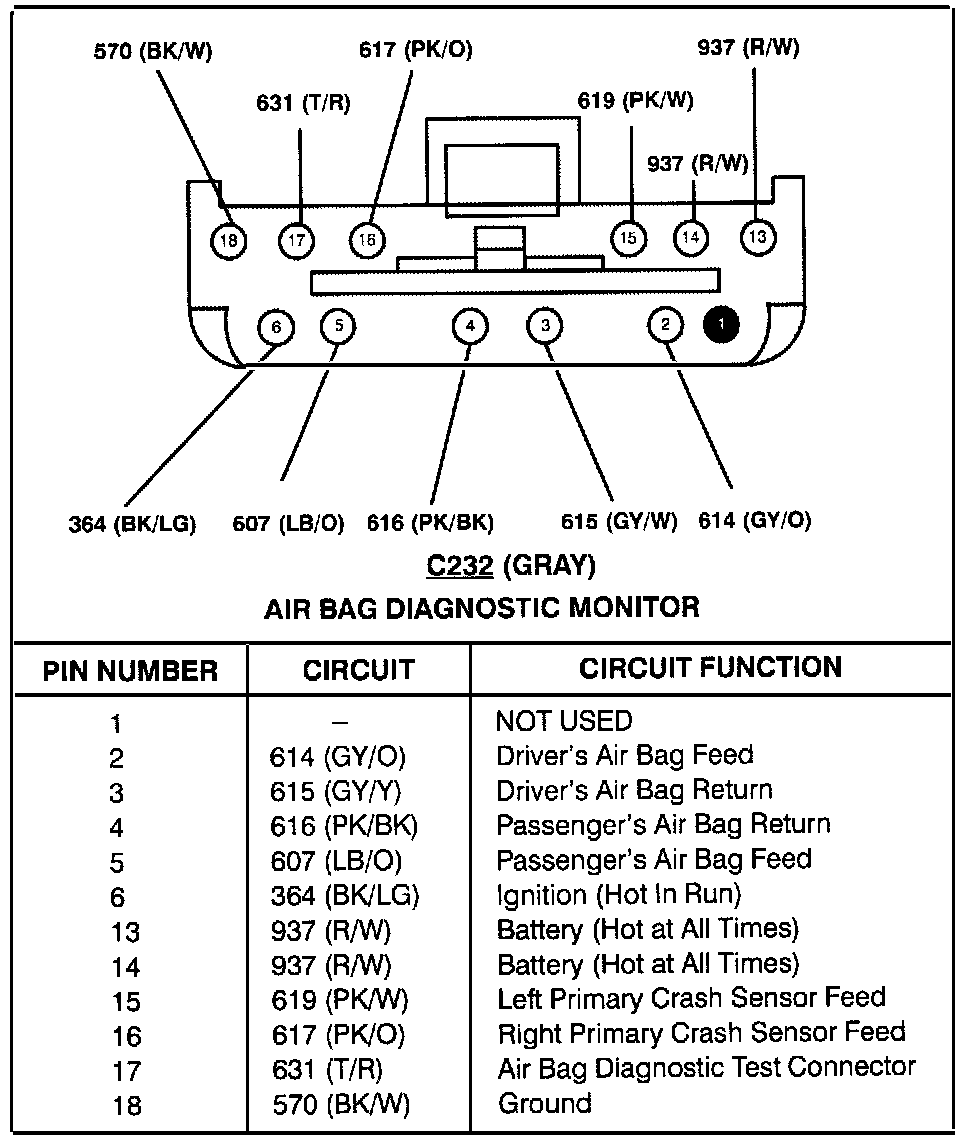

Air Bag Diagnostic Monitor (C232):

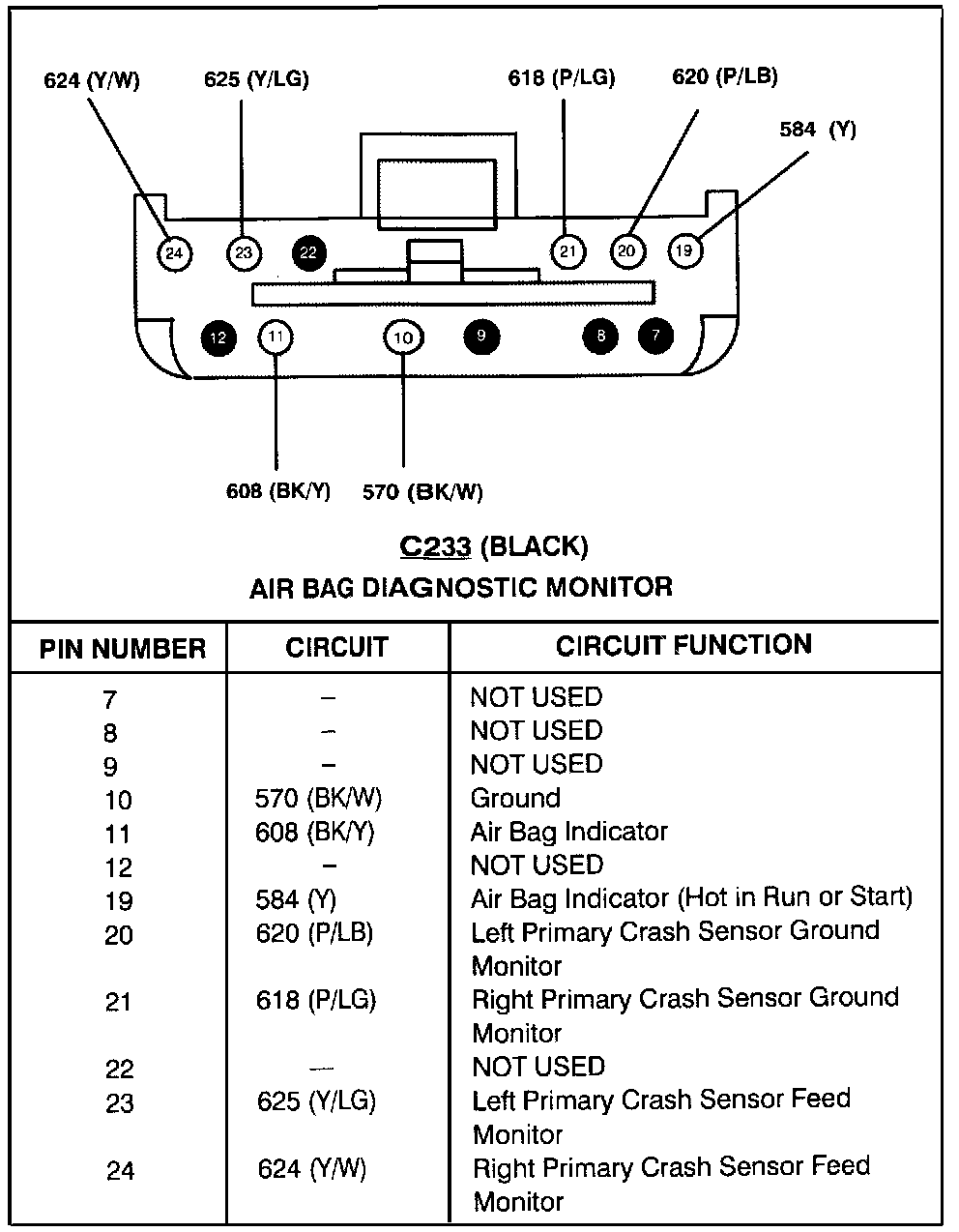

Air Bag Diagnostic Monitor (C233):
