Transmission Position Sensor/Switch: Diagrams

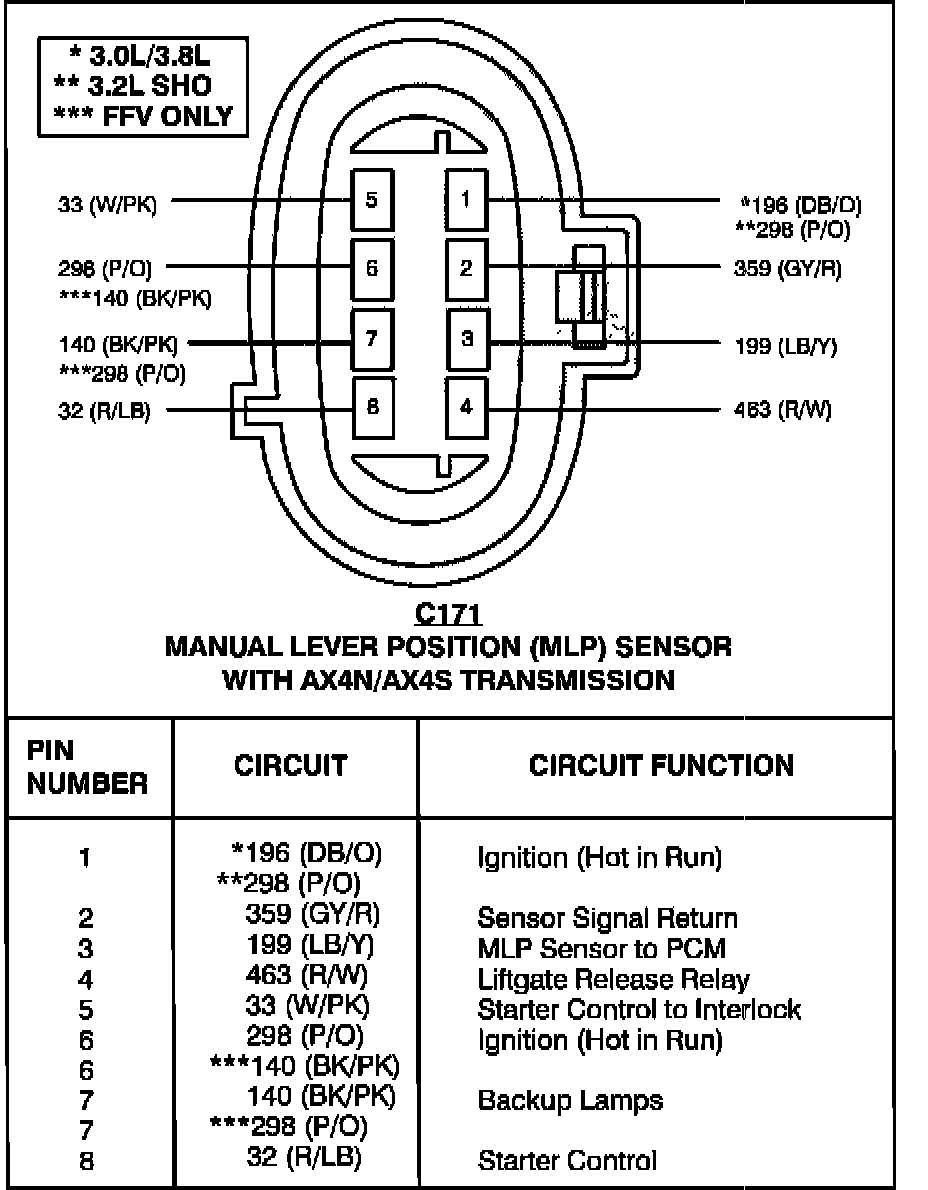

Manual Lever Position (MLP) Sensor With AX4N/AX4S Transmission:
