Ford
>>
1994
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor HVAC
>>
Compressor Clutch
Compressor Clutch

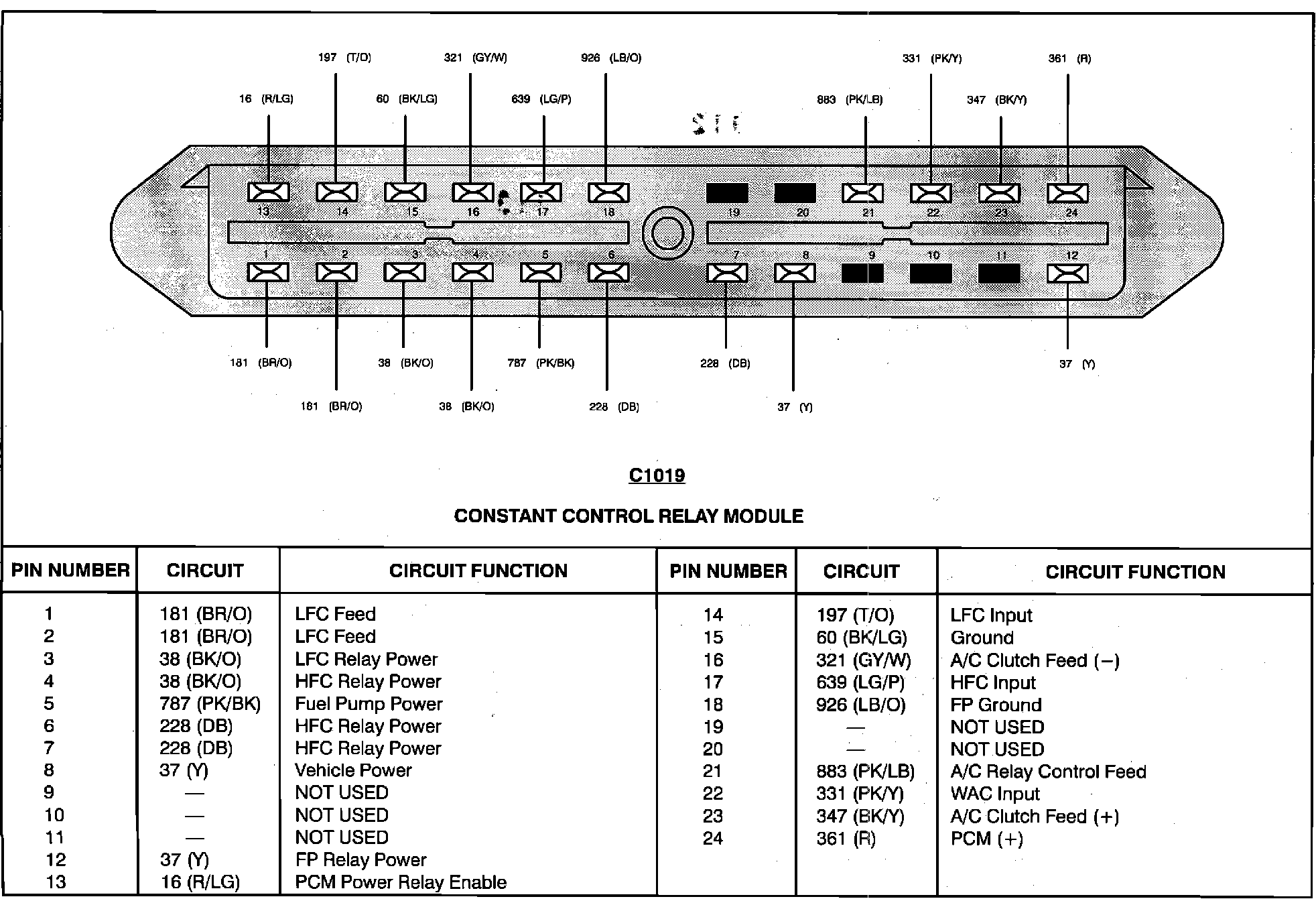

Constant Control Relay Module:
