Combination Switch
>>
Multi-Function Switch Connector Views
Multi-Function Switch Connector Views

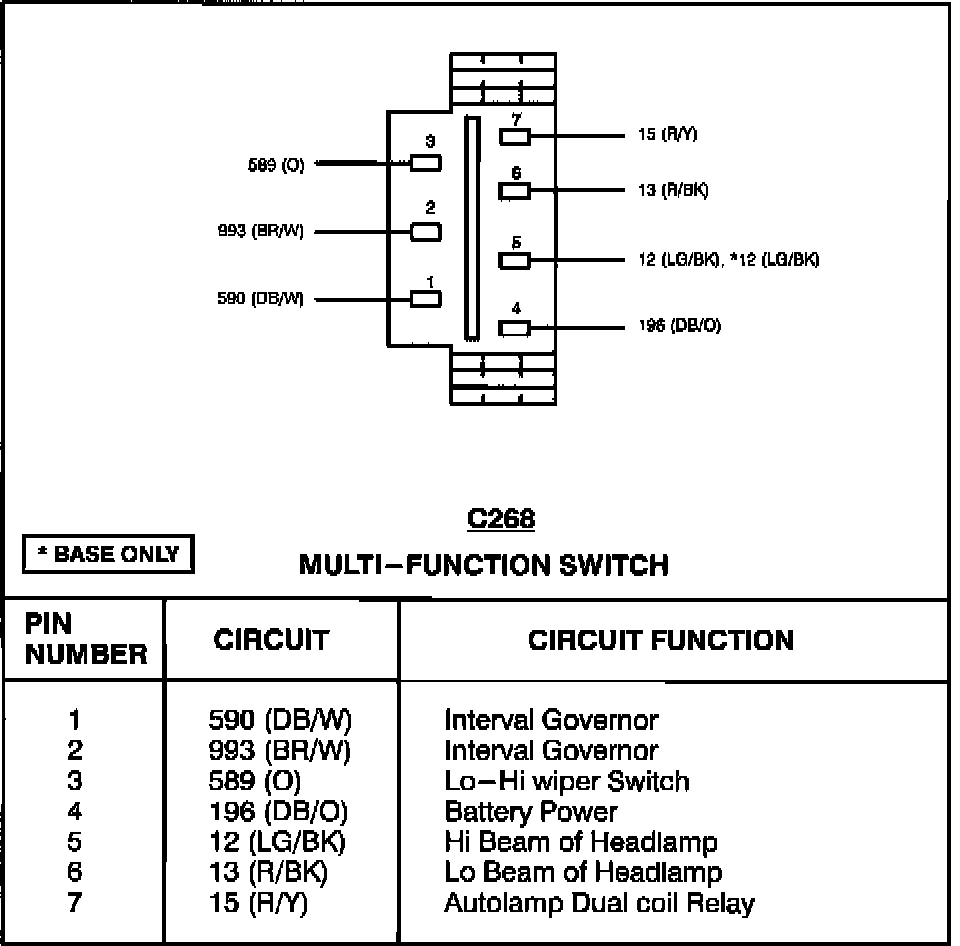

Multi-function Switch:

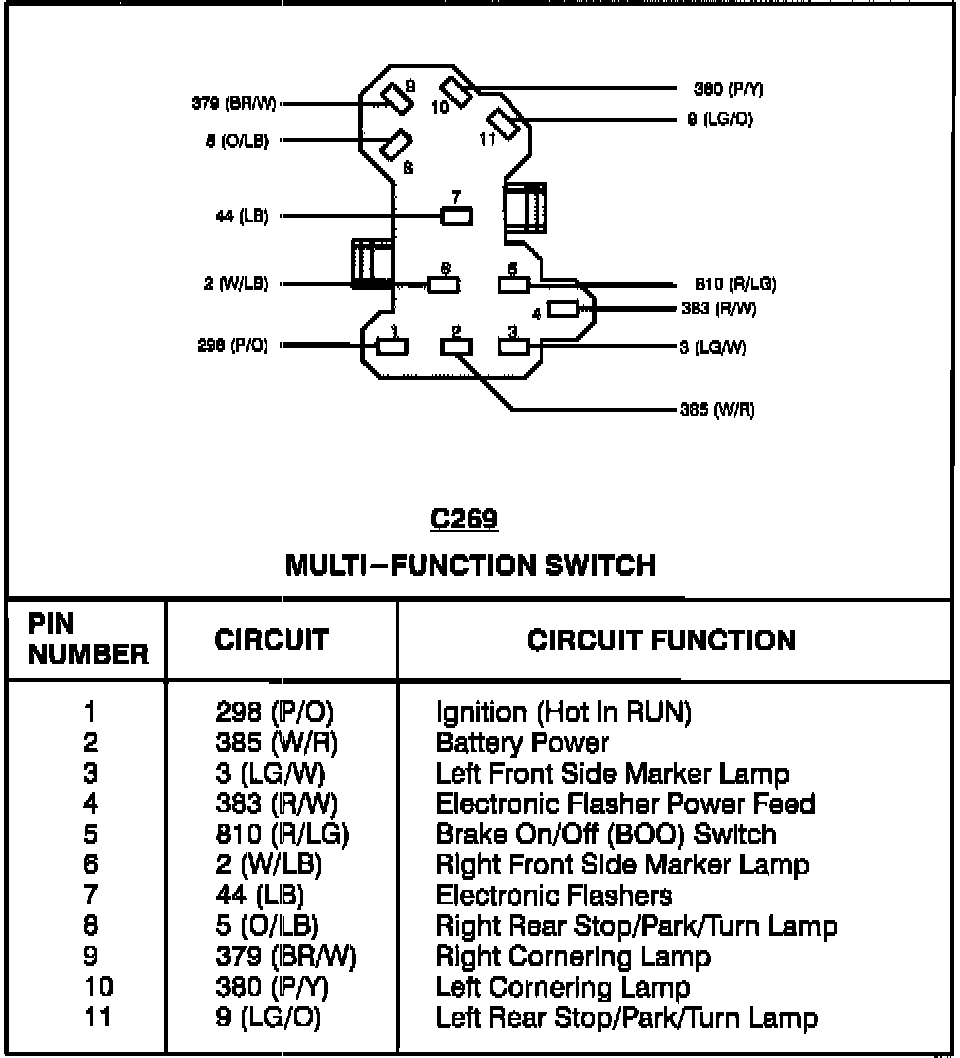

Multi-function Switch:
