Combination Switch
>>

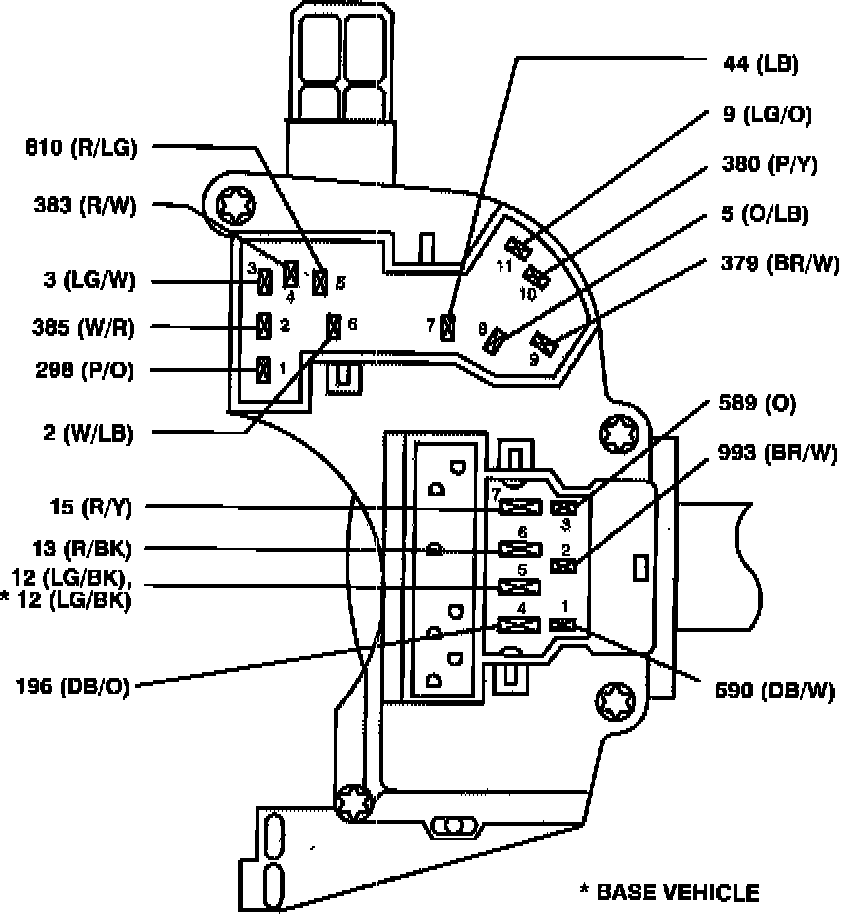

Multi-Function Switch Component Side
Multi-Function Switch Component Side
Terminal ID:
