Air Bag Control Module
Air Bag Control Module

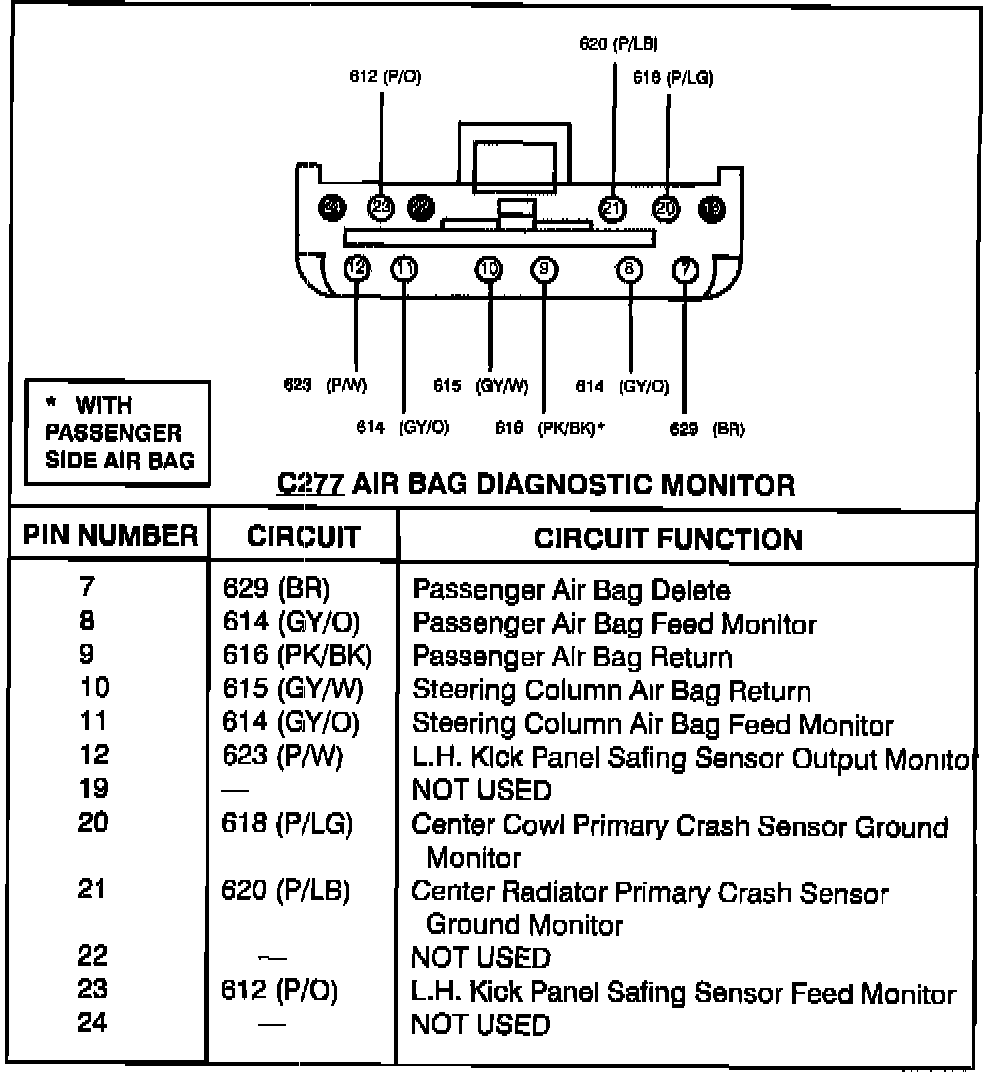

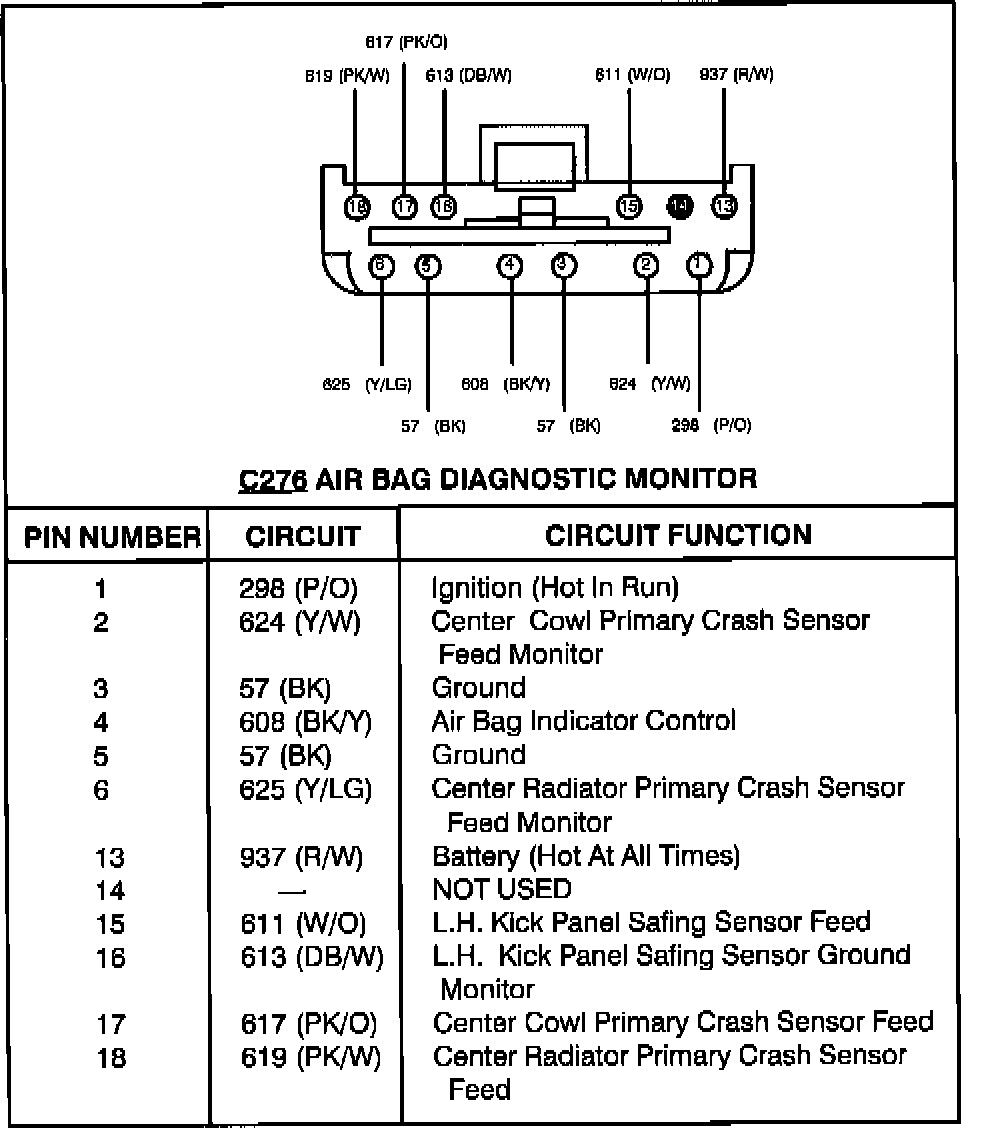

Air Bag Diagnostic Monitor:
Air Bag Diagnostic Monitor:
