Home >> Ford >> 1994 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

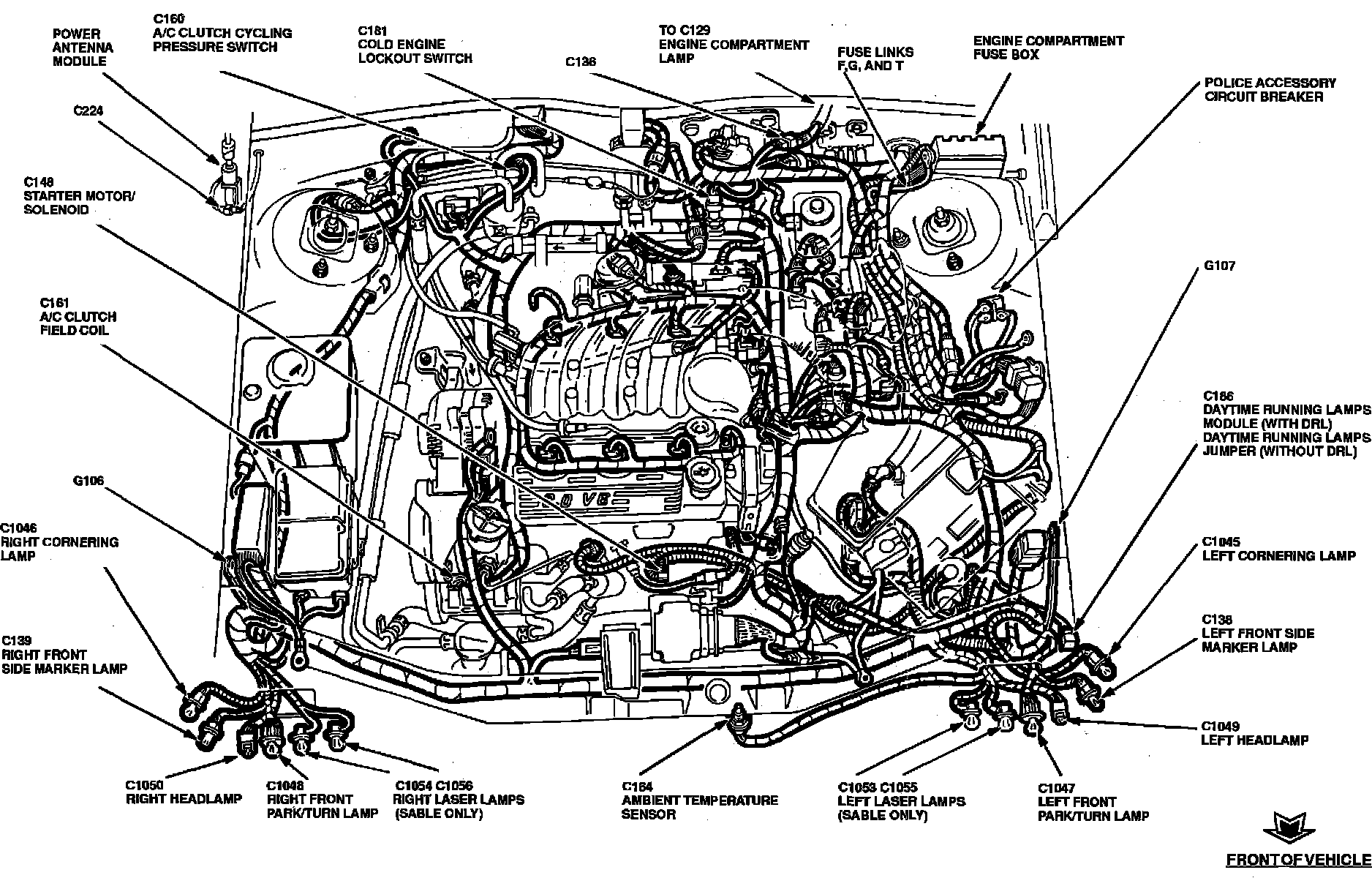

Component Locations:

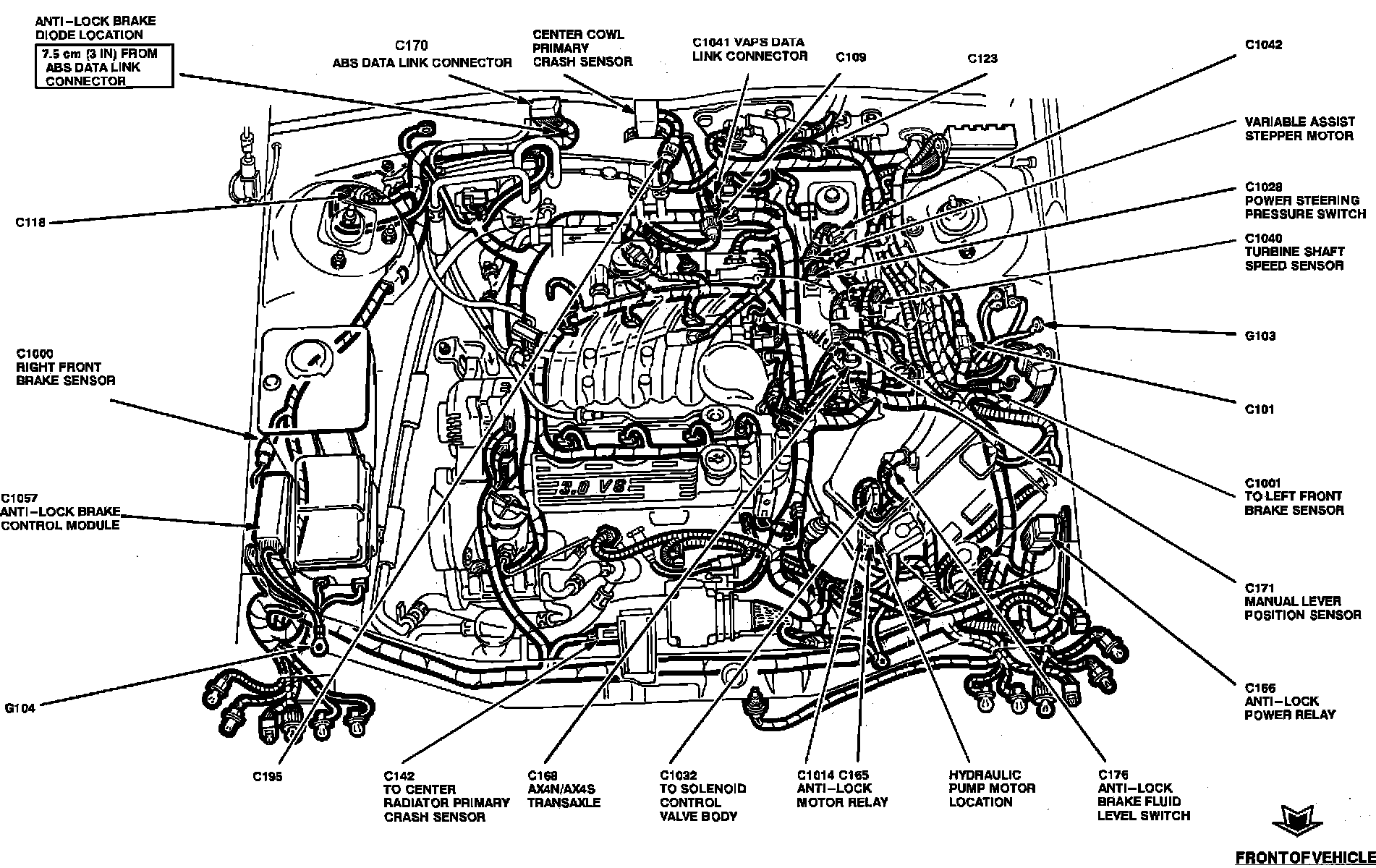

Component Locations:

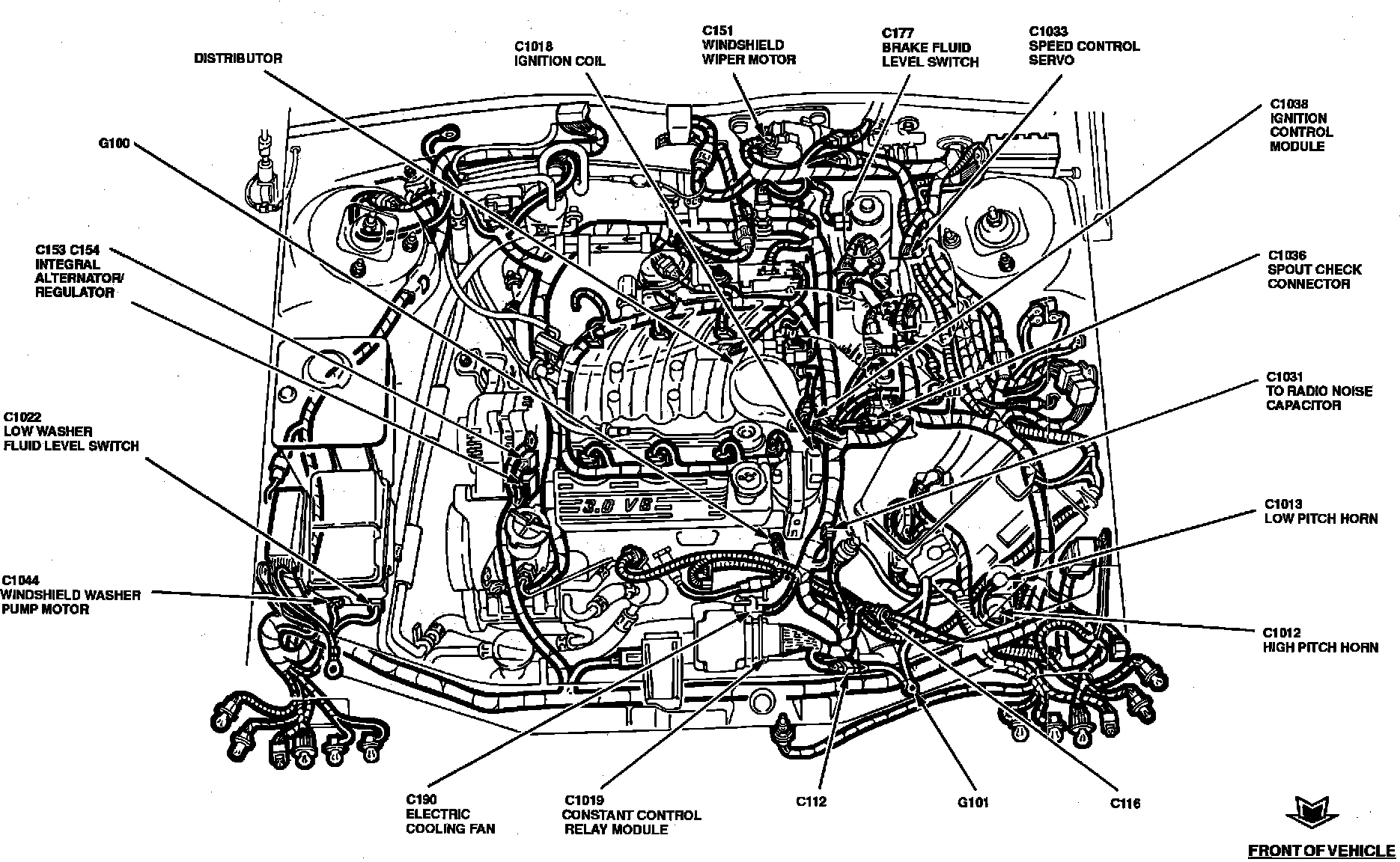

Component Locations:




Component Locations:
