Oscilloscope Patterns and Waveforms
Oscilloscope Patterns and Waveforms

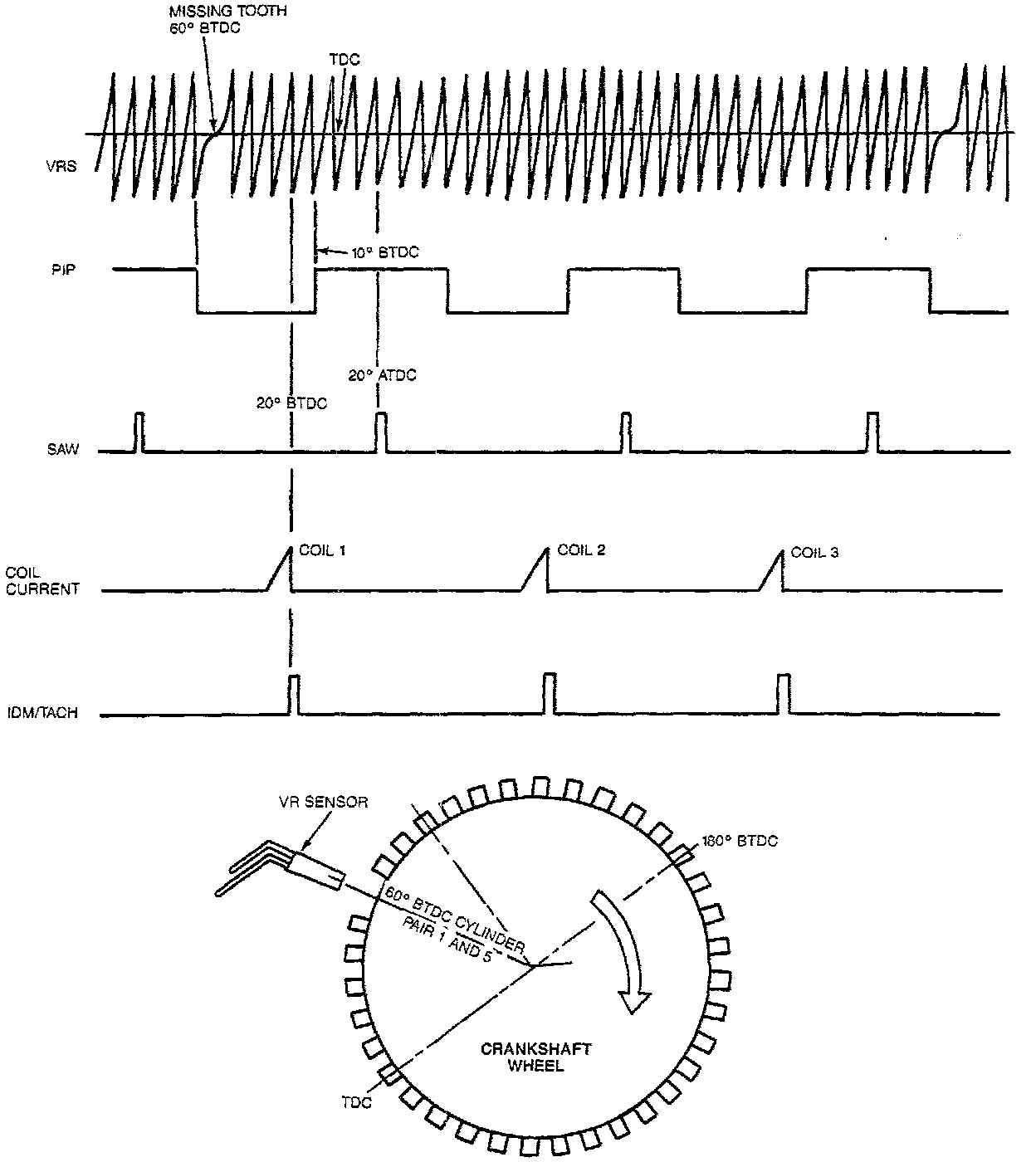

3.0L Flexible Fuel EI Waveforms:
3.0L Flexible Fuel EI Waveforms:
