Home >> Ford >> 1994 >> Probe V6-153 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Part 2 of 2

Part 2 of 2

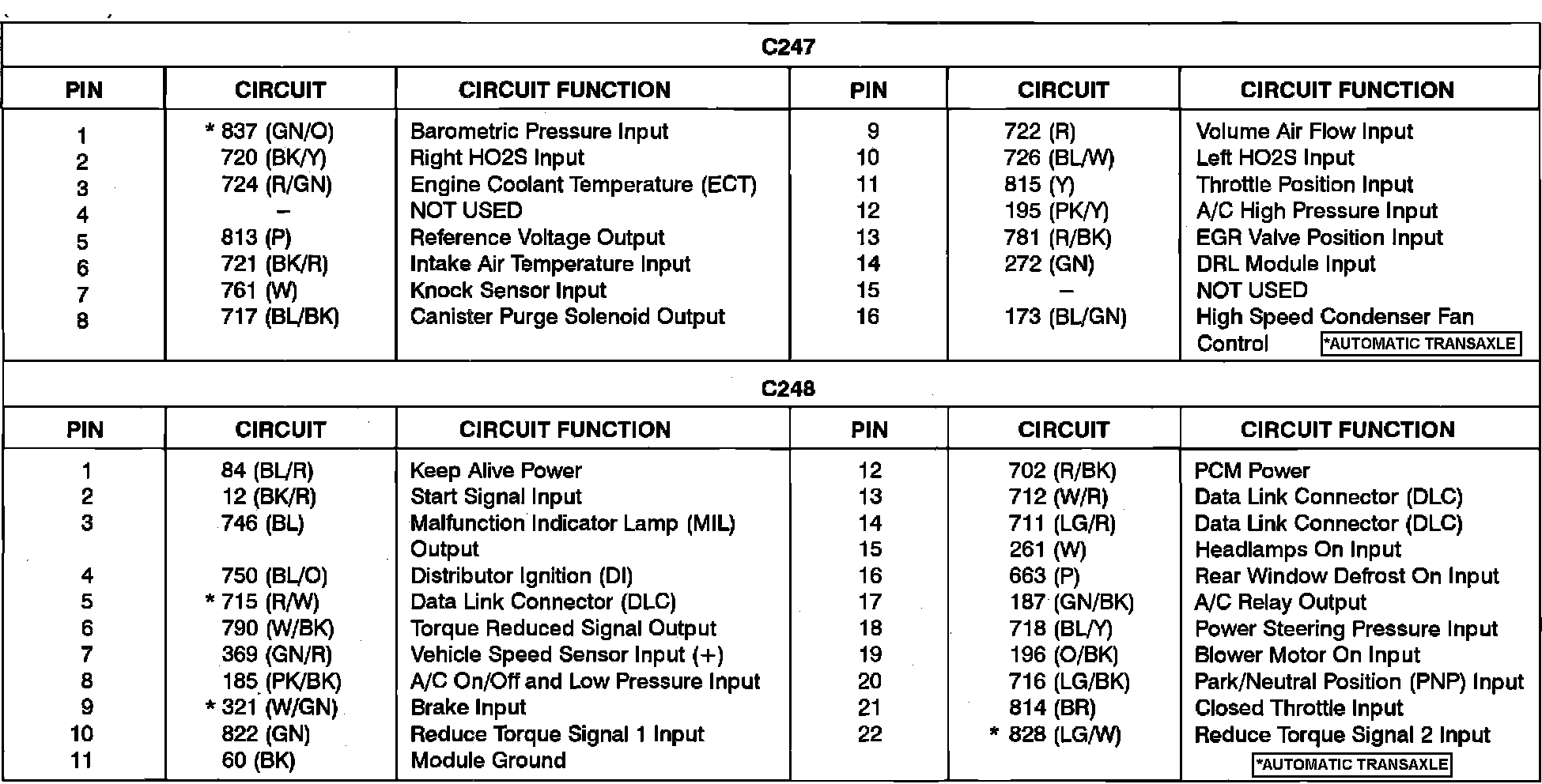

Powertrain Control Module (PCM) Pinout Chart:
