Home >> Ford >> 1994 >> Mustang V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

Air Flow Meter/Sensor: Locations

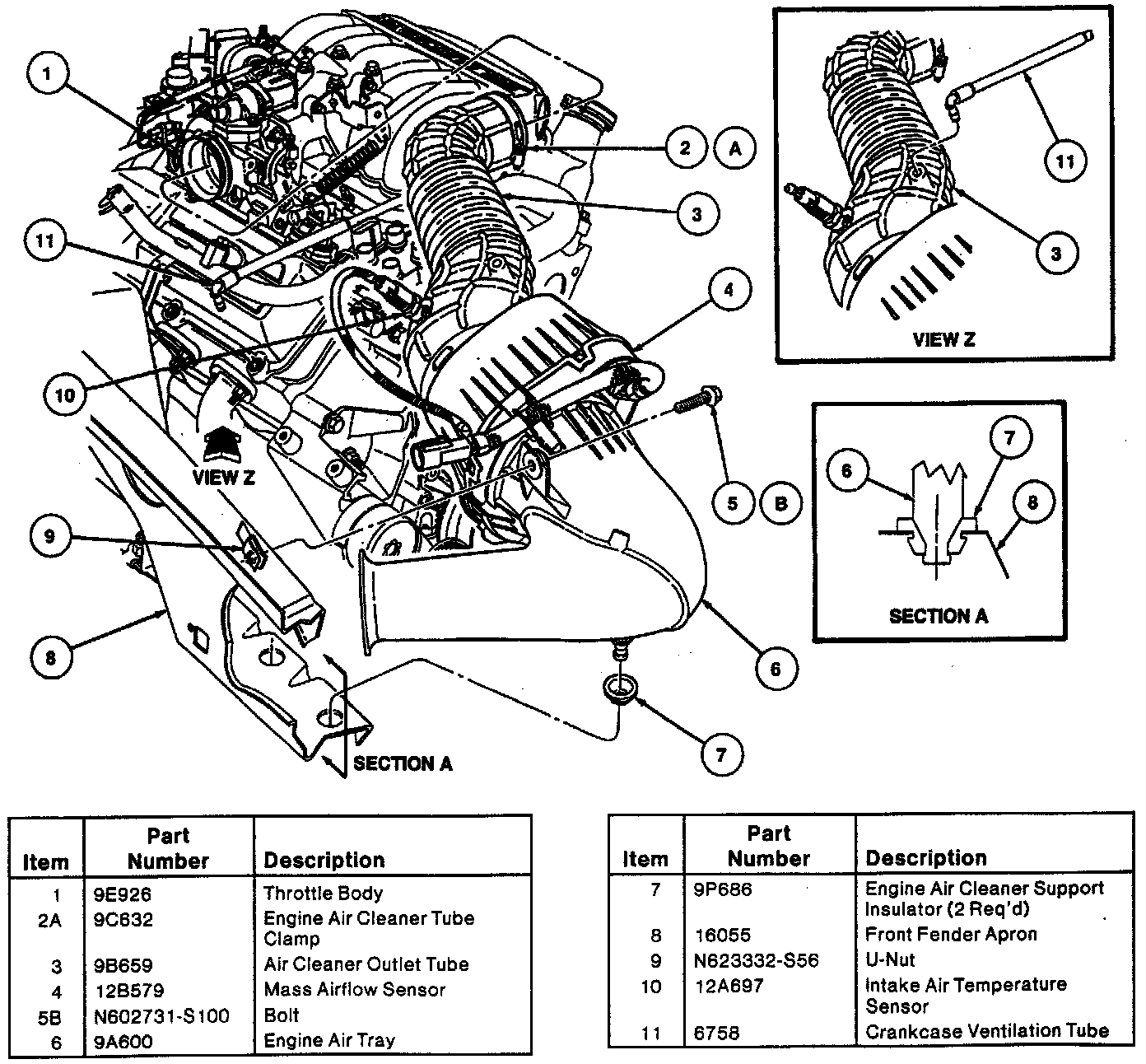

Air Intake Components:






Right hand side of engine compartment, rear of air cleaner assembly.
