lemon-mirror
:
Home
>>
Ford
>>
1994
>>
Mustang V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Engine Control Module
>>
Part 1 of 2
Part 1 of 2

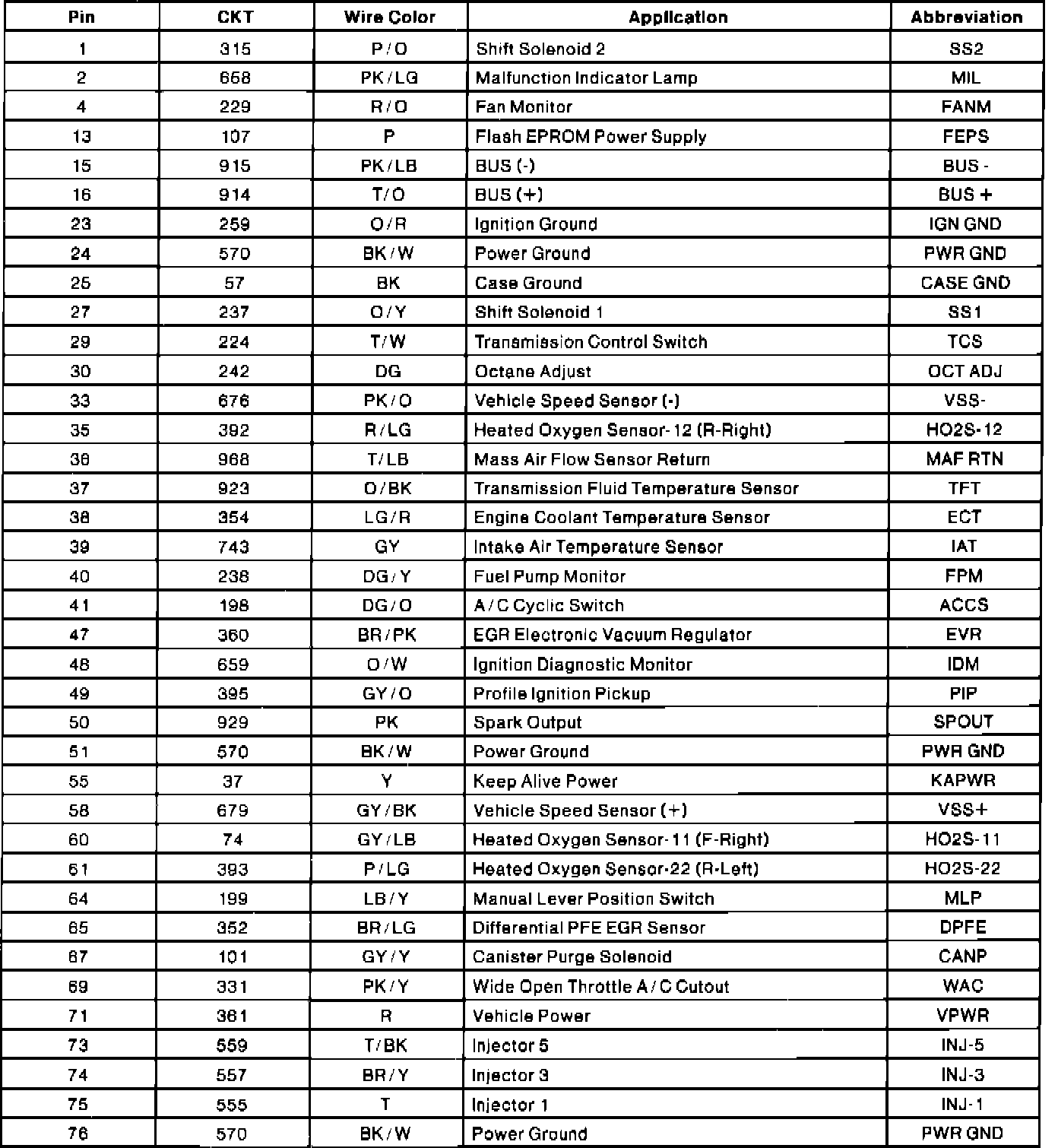

PCM Connector Pin Usage (part 1 Of 2):
