Home >> Ford >> 1993 >> Tempo V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

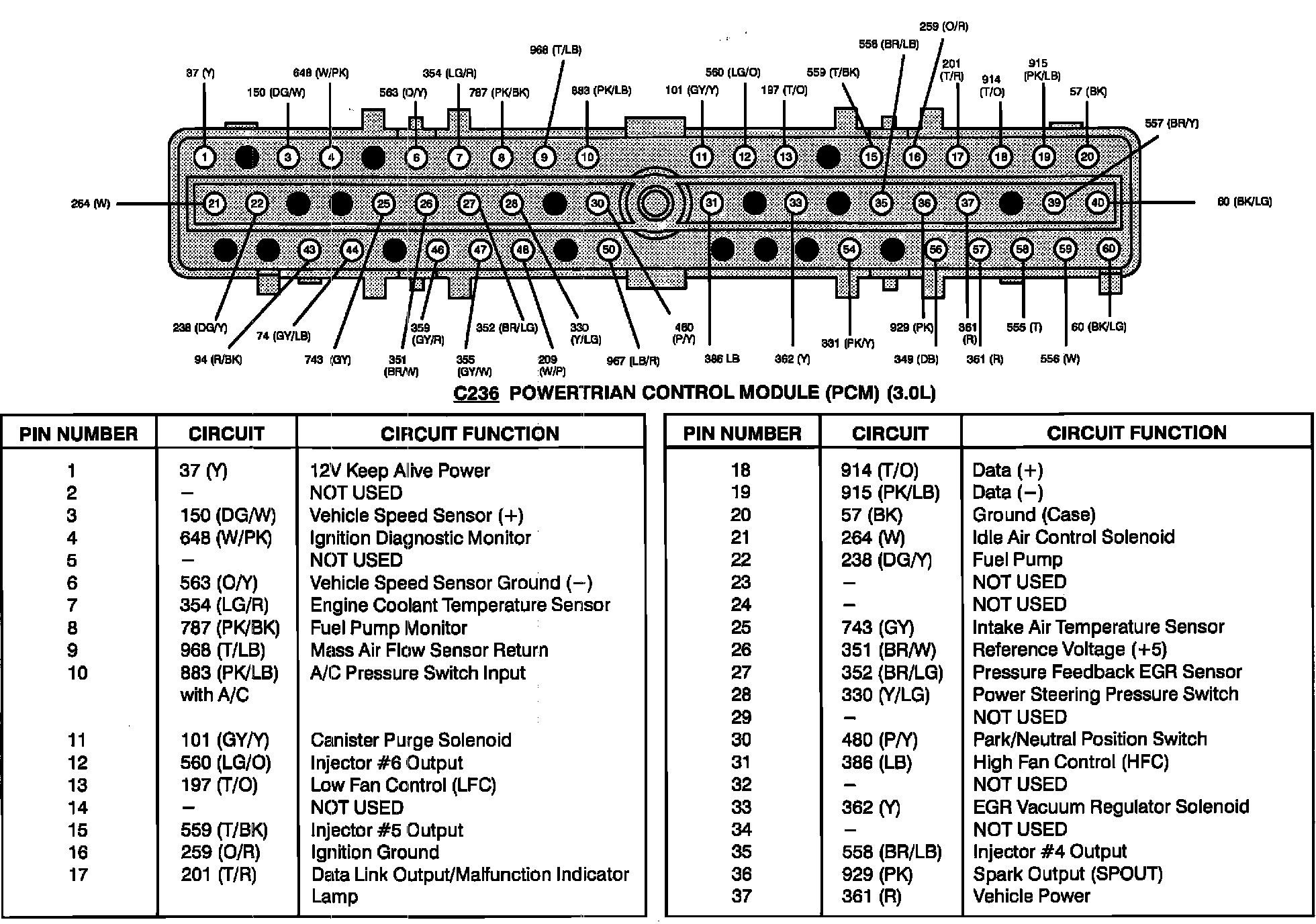

Powertrain Control Module (PCM):

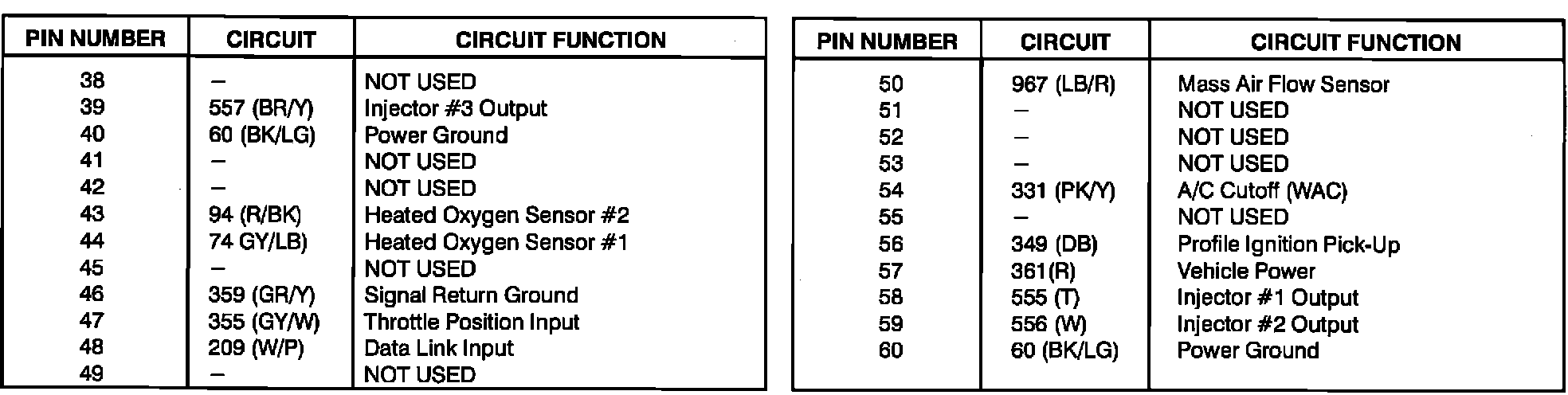

Powertrain Control Module (PCM):
