Home >> Ford >> 1993 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column >> With Console Shift

With Console Shift




Steering with Console Shift

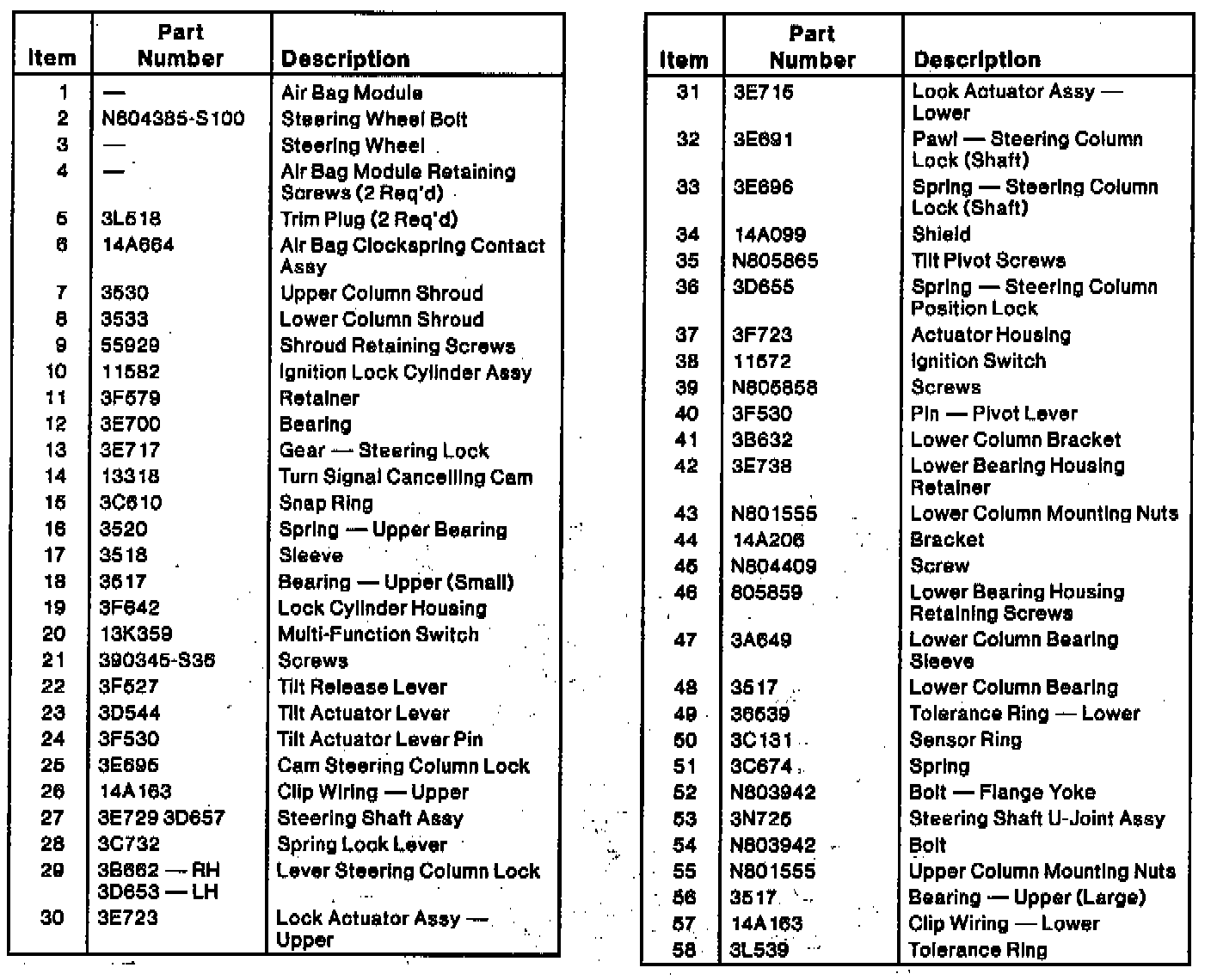

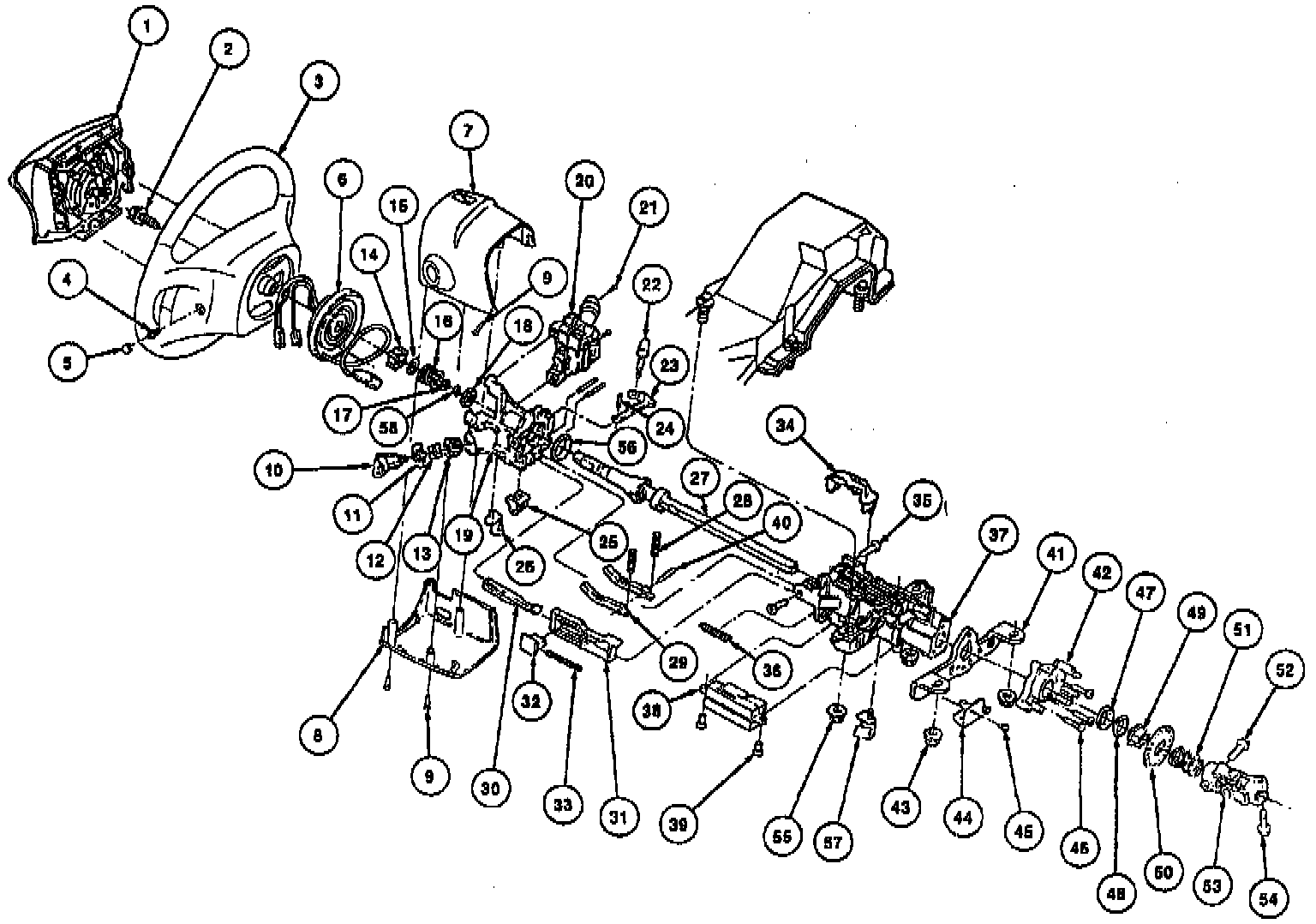

Fig. 7 Exploded View Of Steering Column W/Console Shift:






Fig. 7 Exploded View Of Steering Column W/Console Shift:
