Engine Control Module

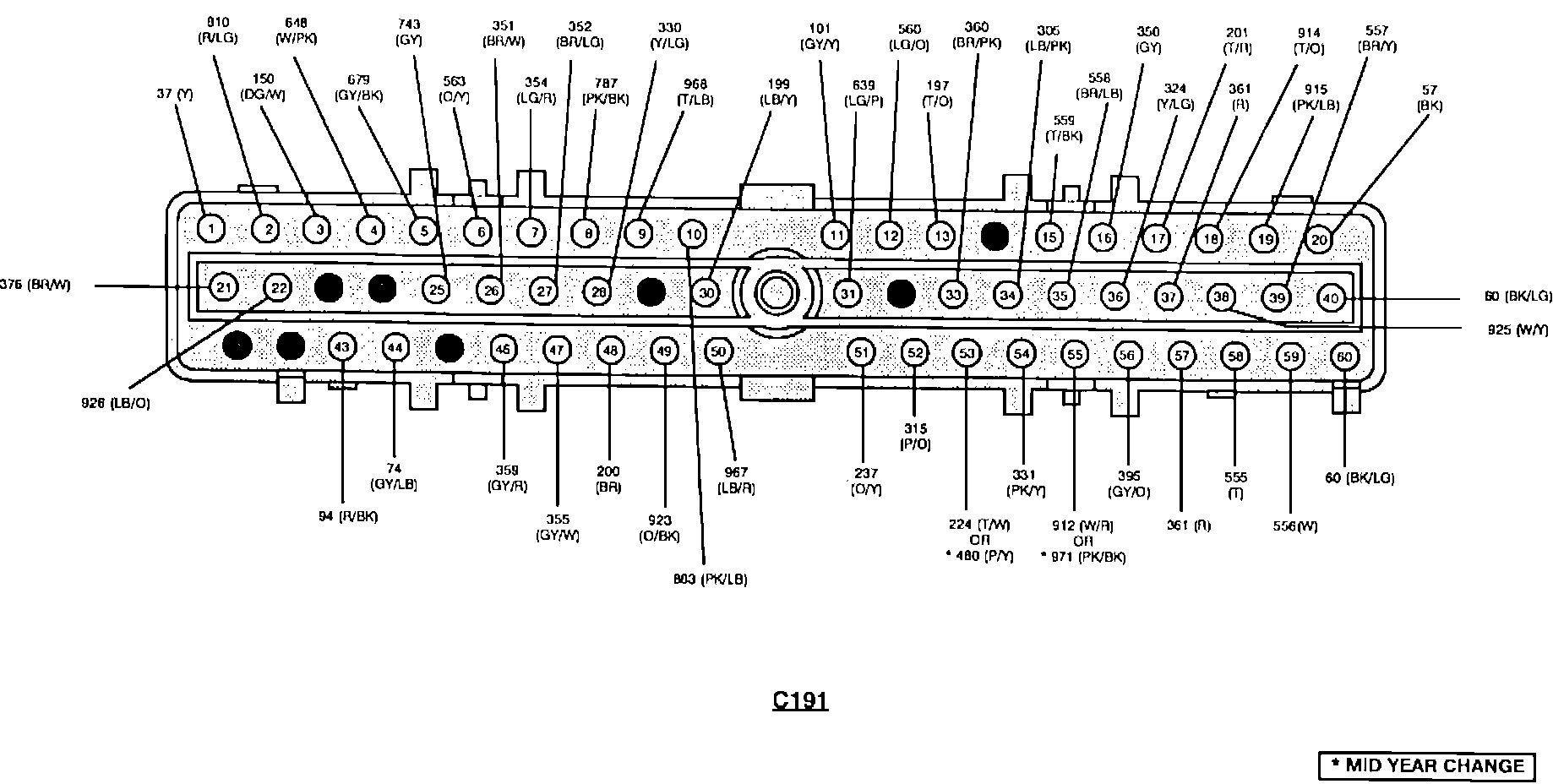

Powertrain Control Module (PCM):






CONNECTOR VIEW

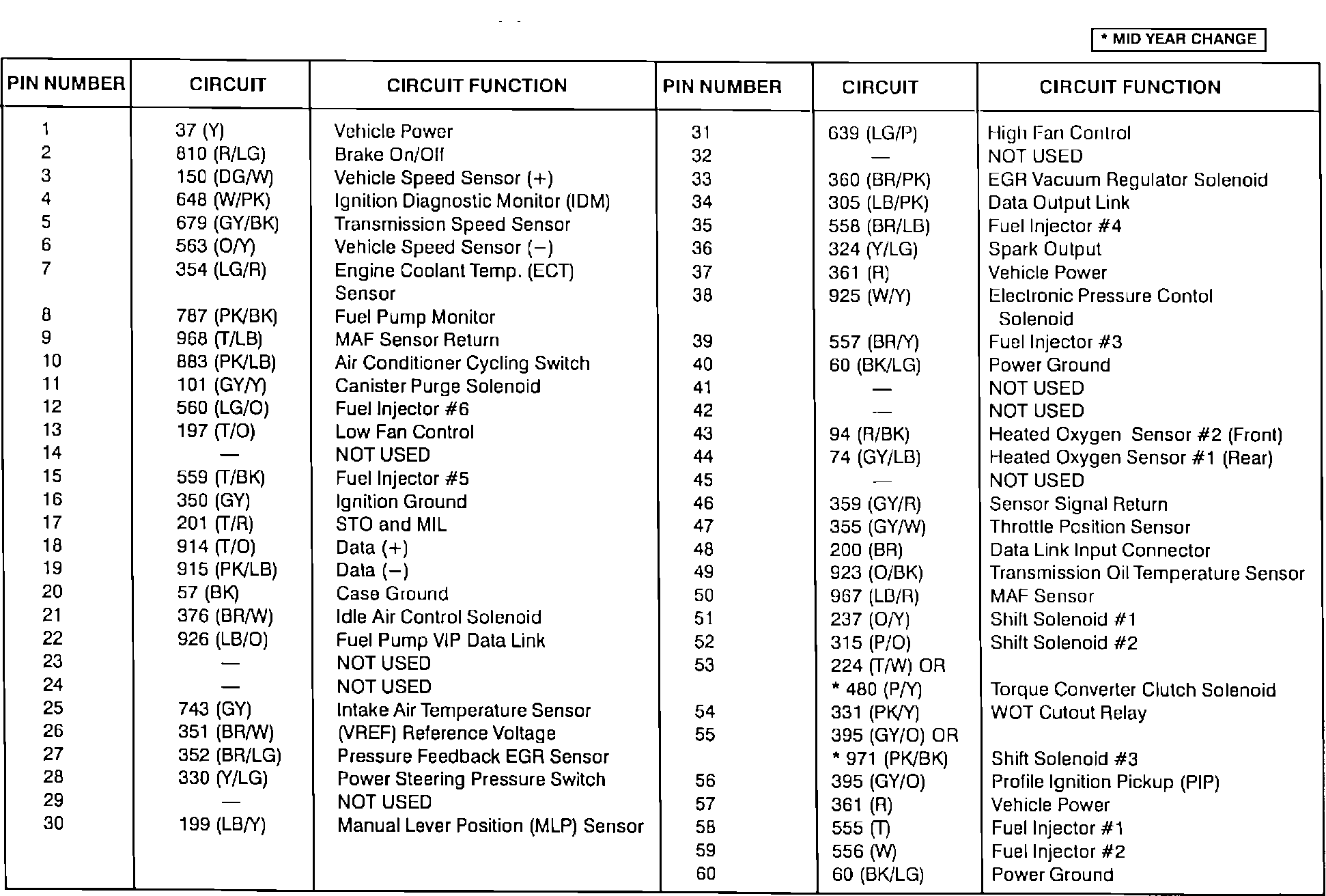

Powertrain Control Module (PCM):






PINOUT IDENTIFICATION
