Home
>>
Ford
>>
1993
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
>>
System Diagram
>>

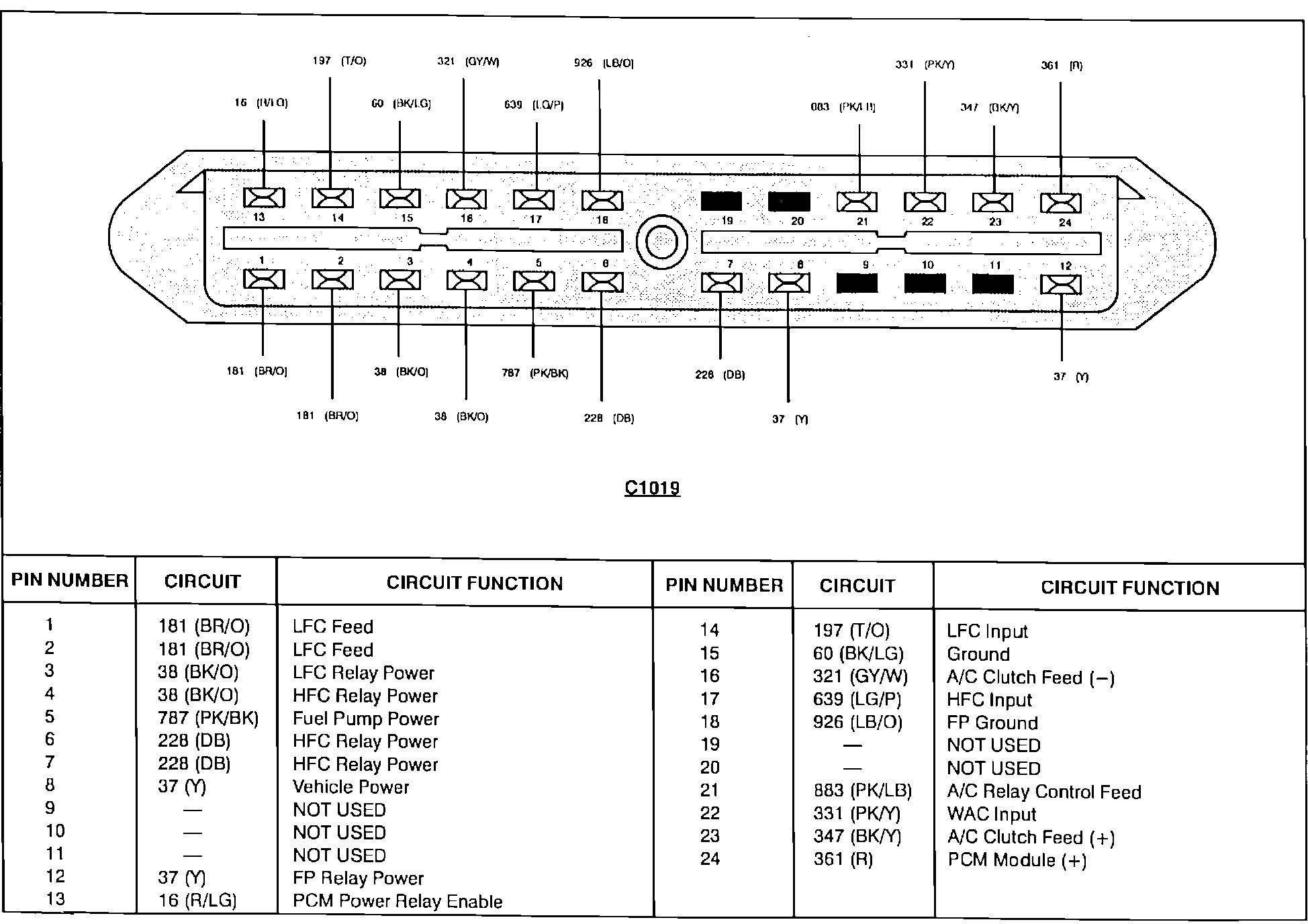

Constant Control Relay Module (CCRM)
Constant Control Relay Module (CCRM)
Constant Control Relay Module:
