Home >> Ford >> 1993 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

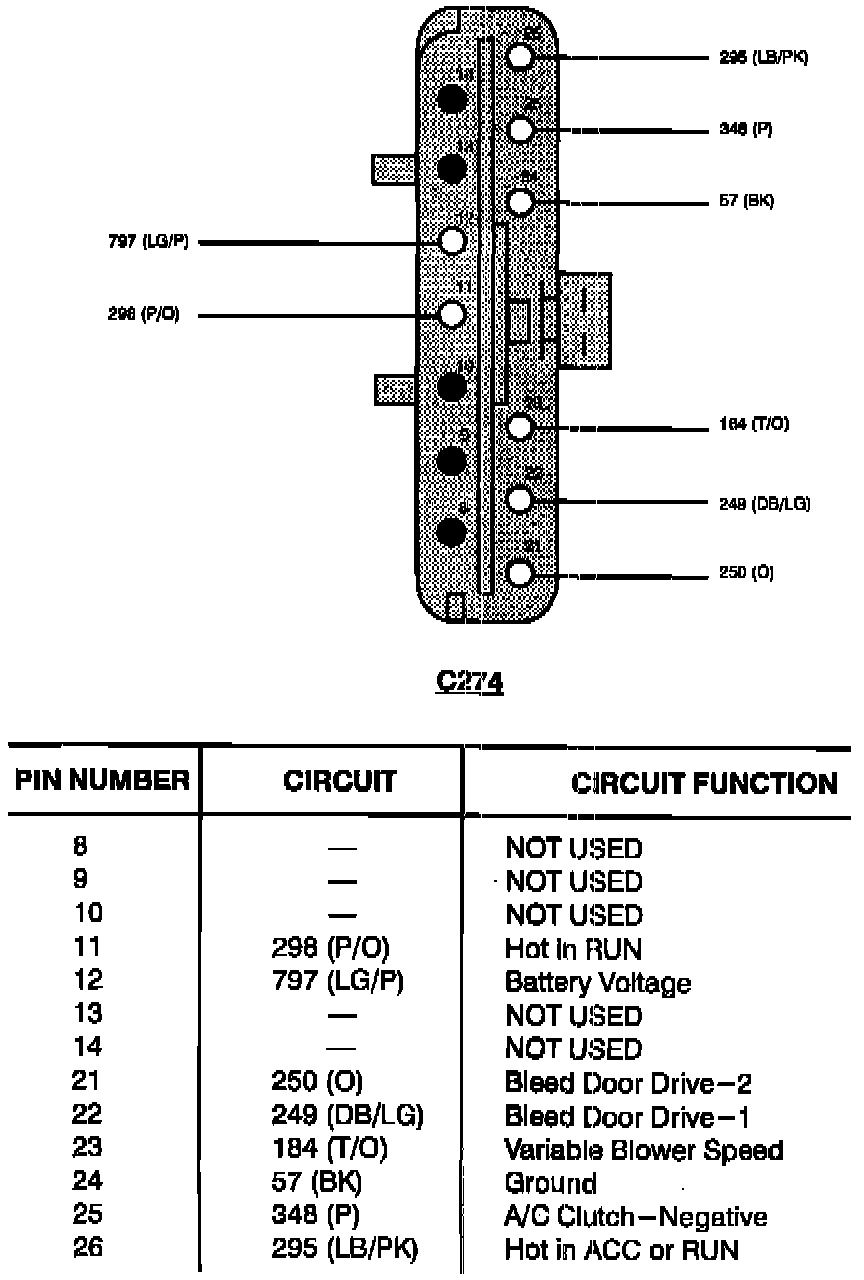

EATC Control Module:



EATC Control Module:
