lemon-mirror
:
Home
>>
Ford
>>
1993
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
>>
Multi-Function Switch Connector Views
Multi-Function Switch Connector Views

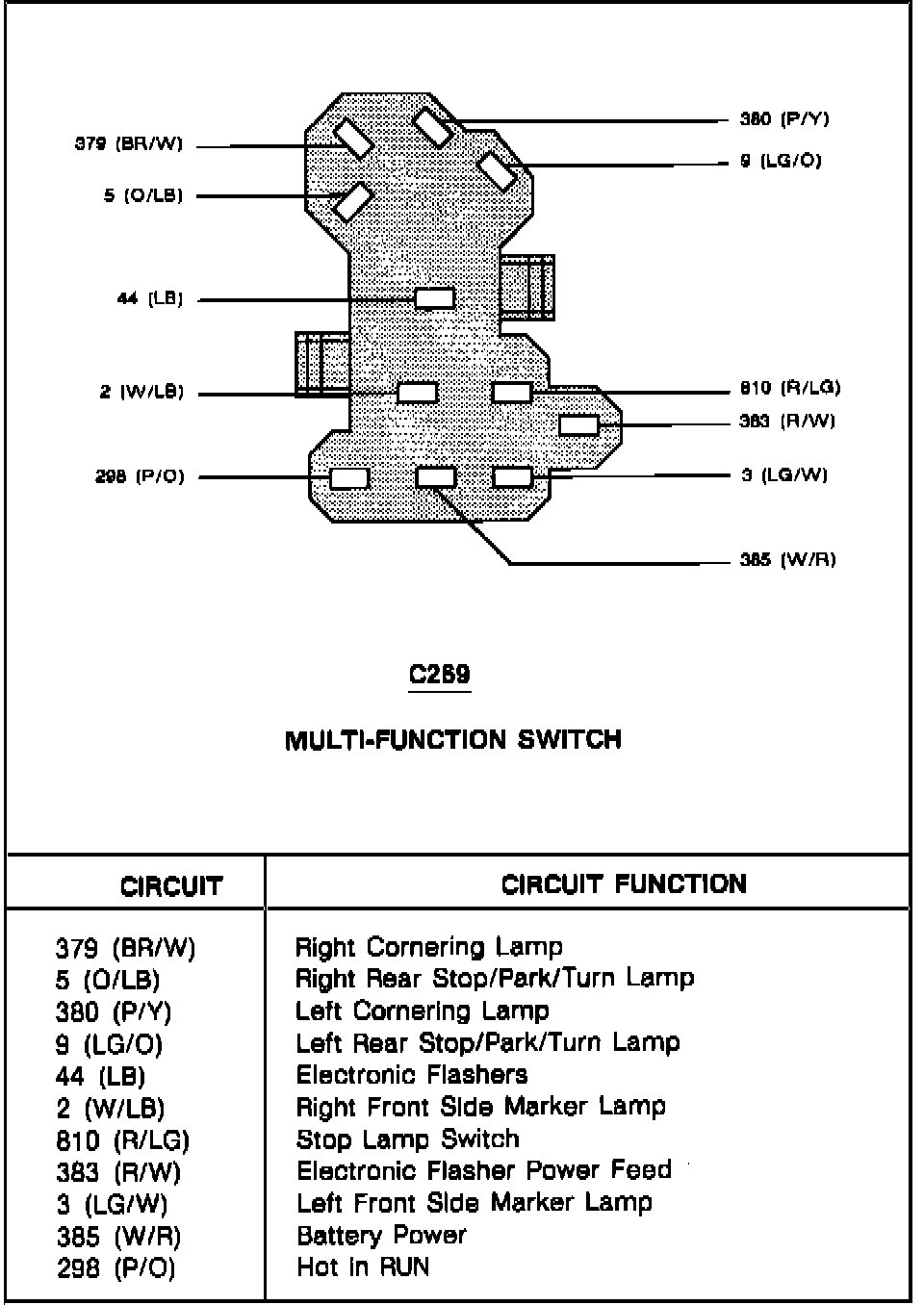

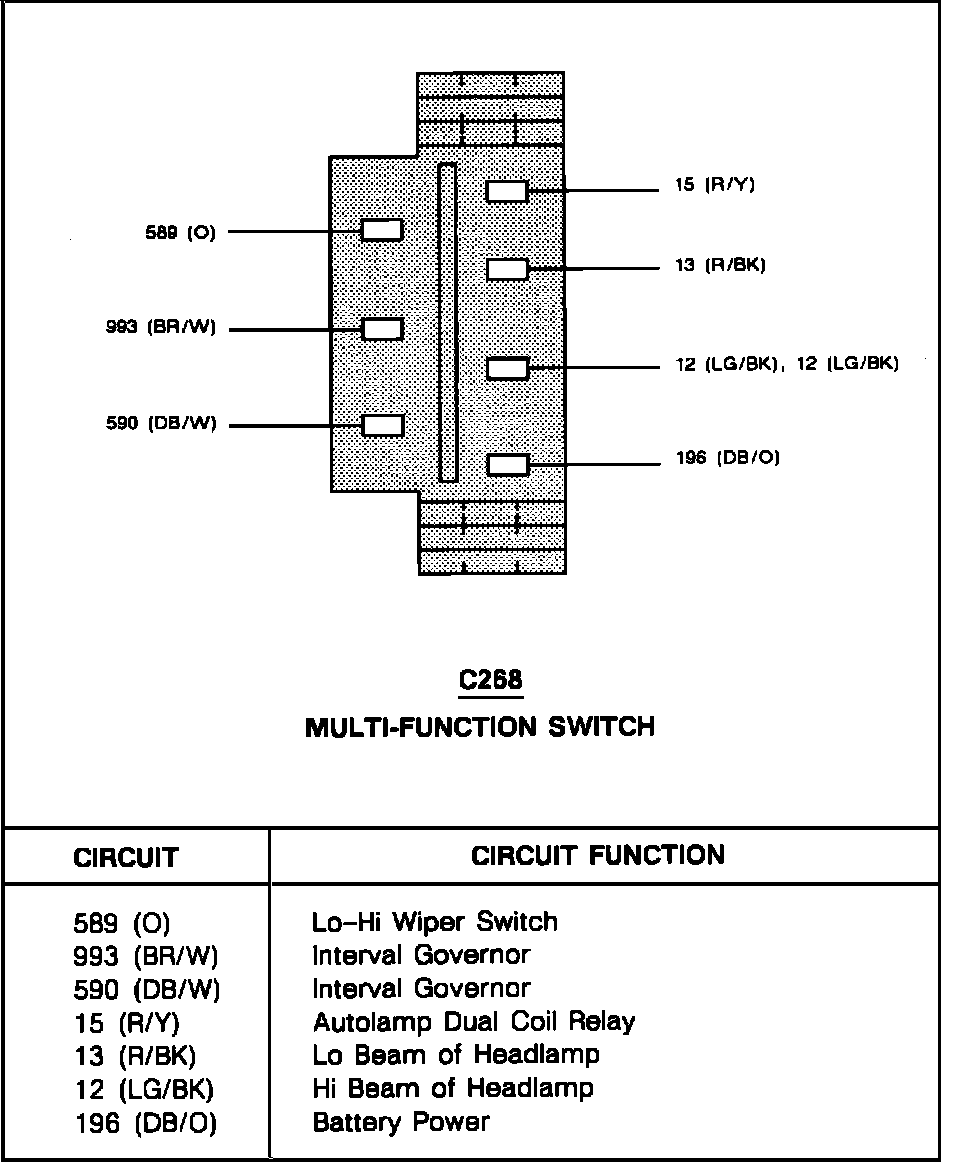

Connector Faces/Pinout Charts:
Connector Faces/Pinout Charts:
