Combination Switch
>>

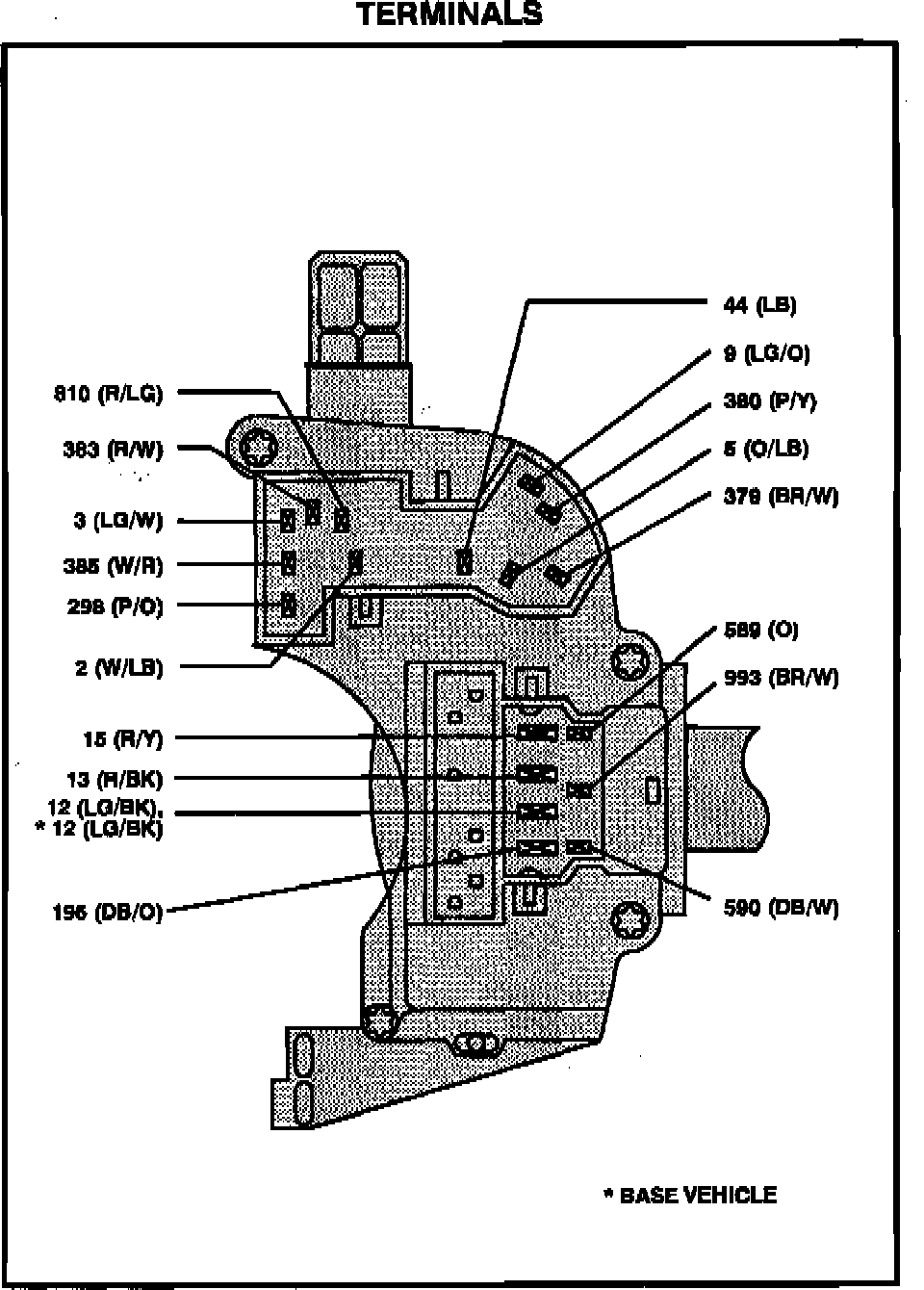

Multi-Function Switch Component Side
Multi-Function Switch Component Side
Terminal ID, Multi-function Switch:
