Probe V6-152 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With Automatic Transmission
With Automatic Transmission

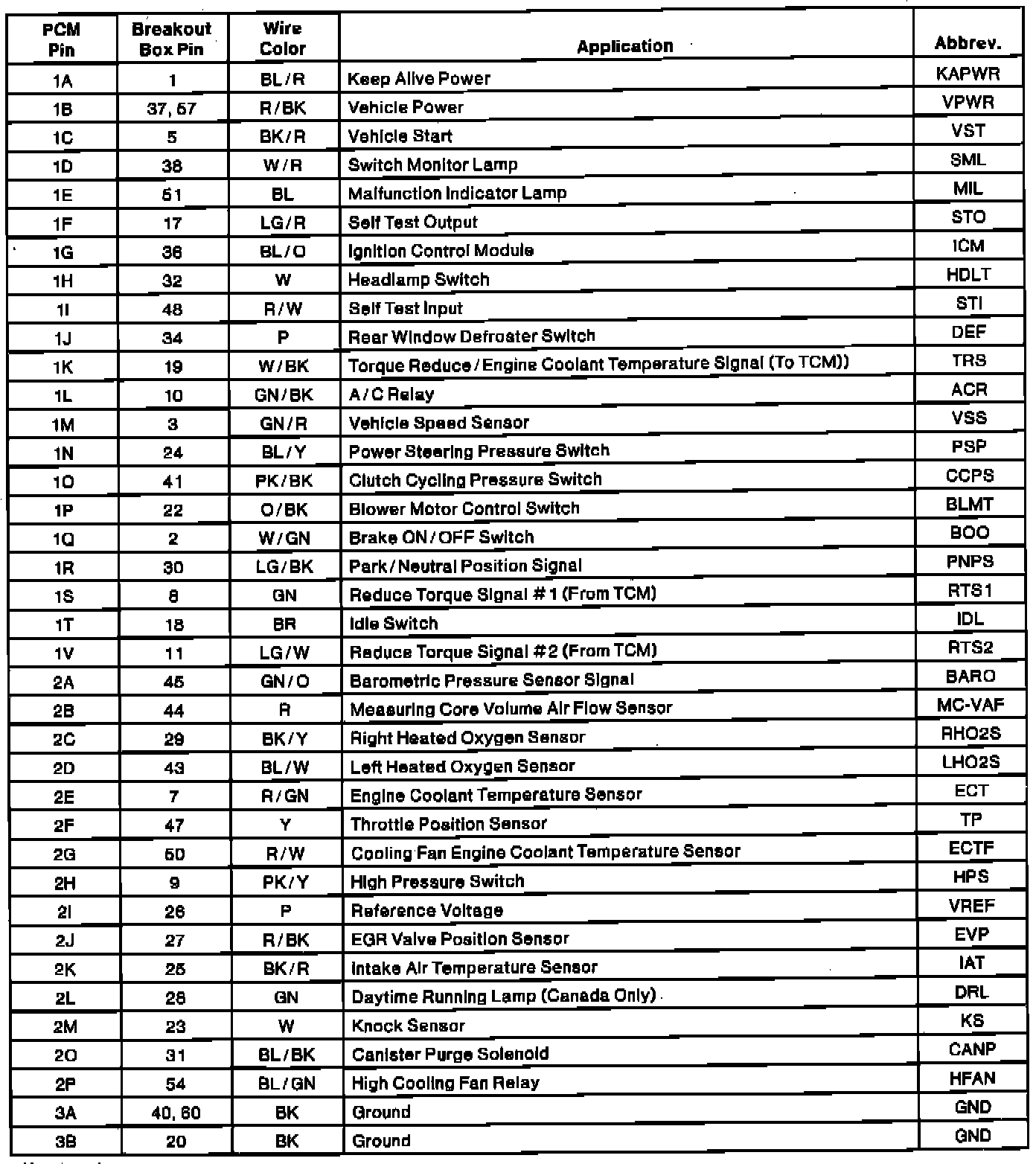

PCM Connector Pin Chart (Part 1, A/T):

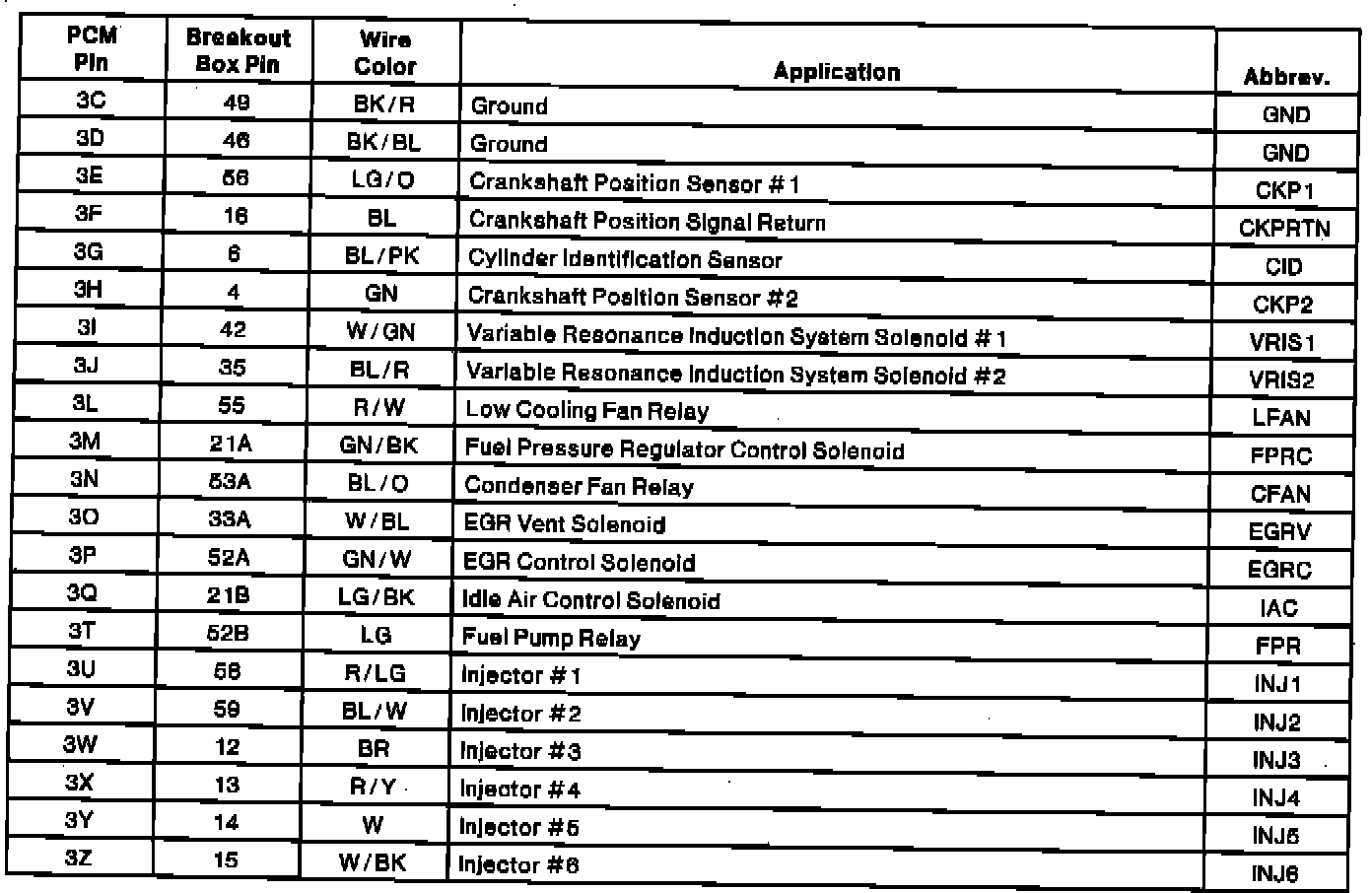

PCM Connector Pin Chart (Part 2, A/T):
