Ignition Control Module: Diagrams

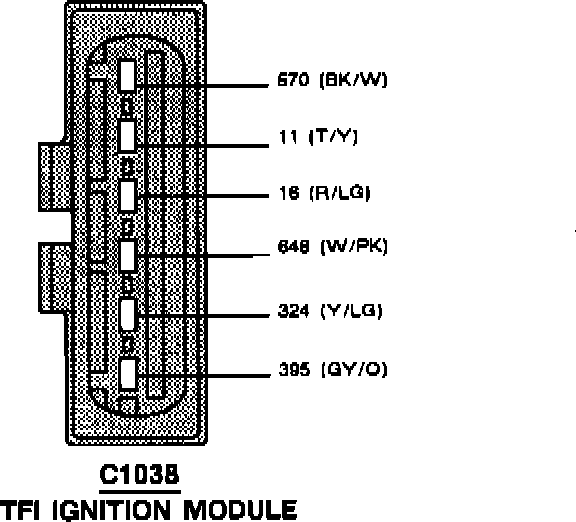

Connector Faces/Pinout Charts:

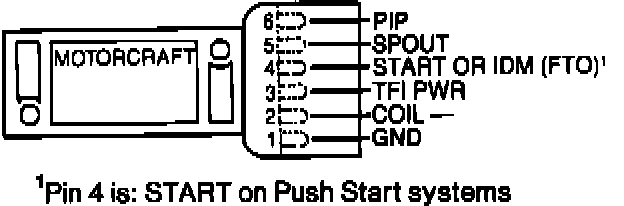

Remote Mounted TFI-IV Ignition Module:
