Ford
>>
1992
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

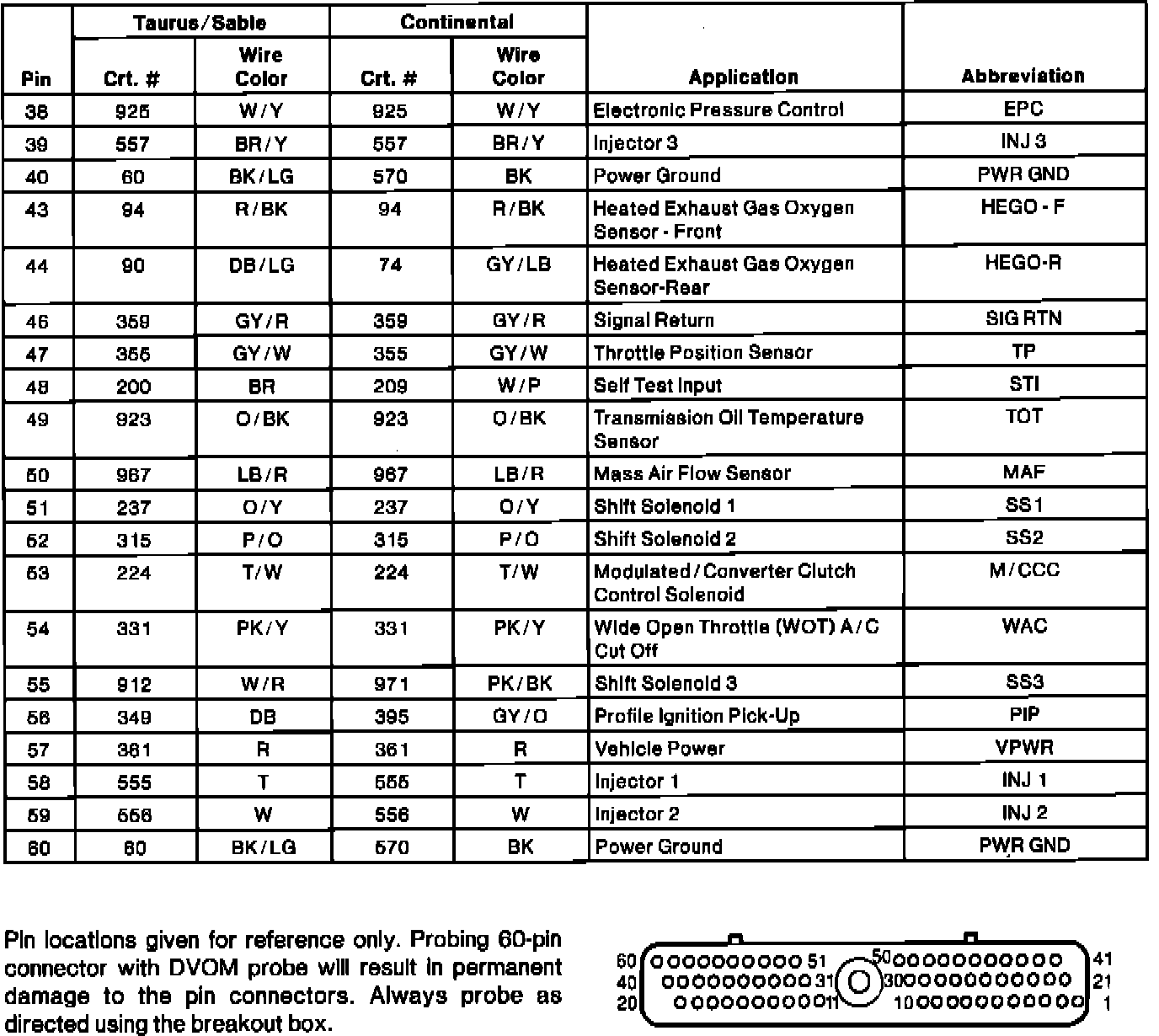

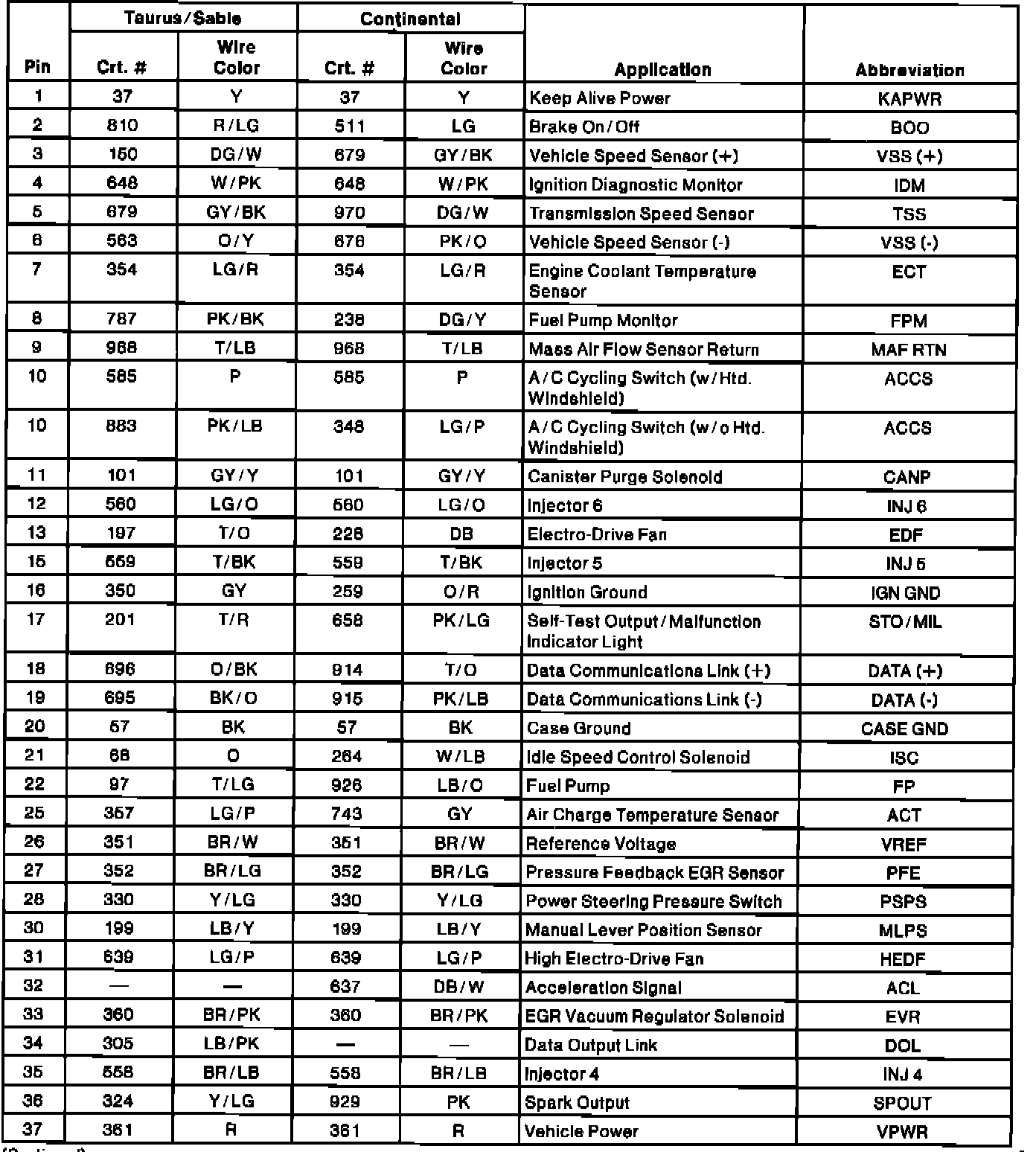

Electronic Engine Controller Connector Pinout:
Electronic Engine Controller Connector Pinout:
