Power Window Switch
>>

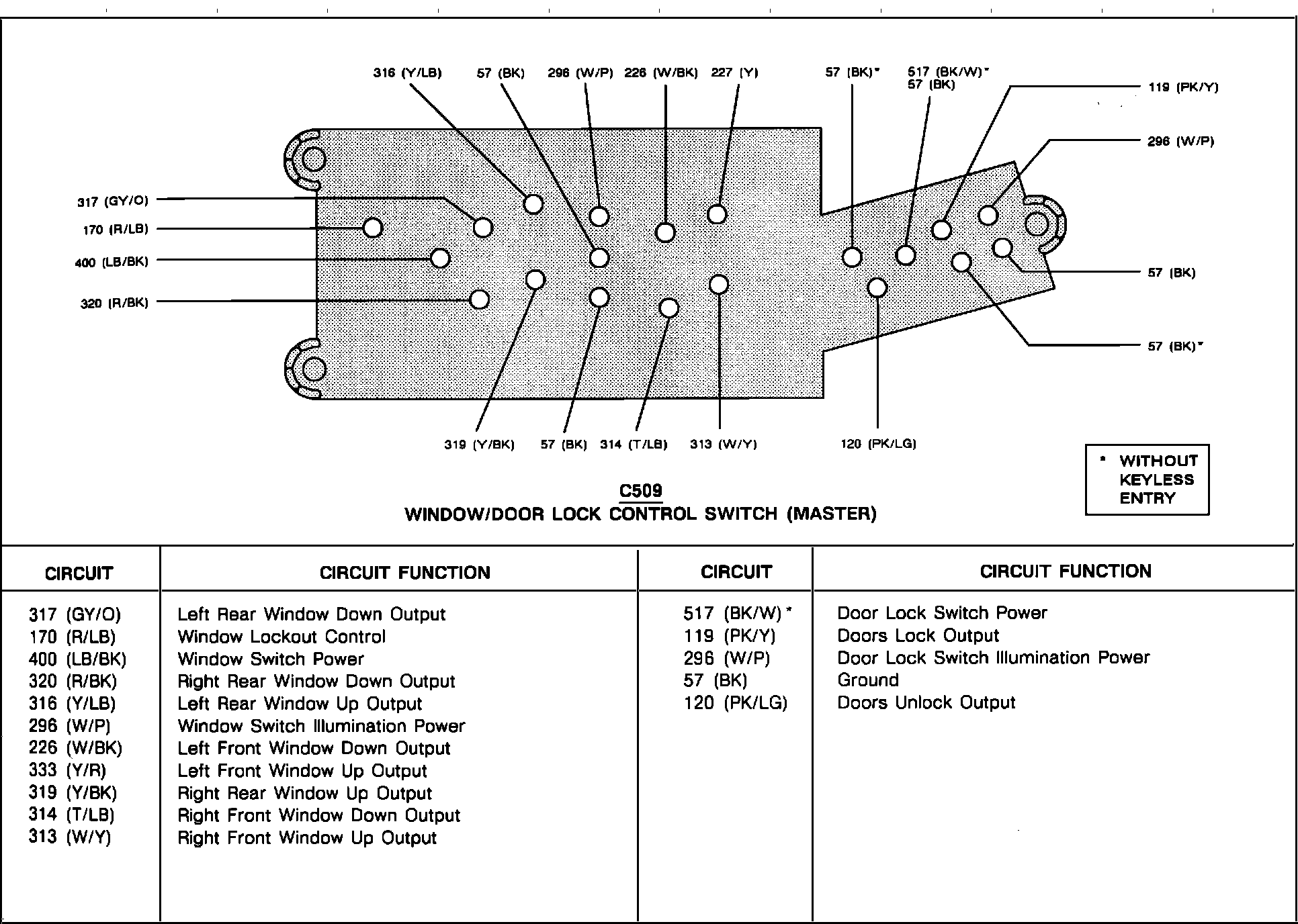

Master Window Control Switch
Master Window Control Switch
Connector Faces/Pinout Charts:
