Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry Module
Keyless Entry Module

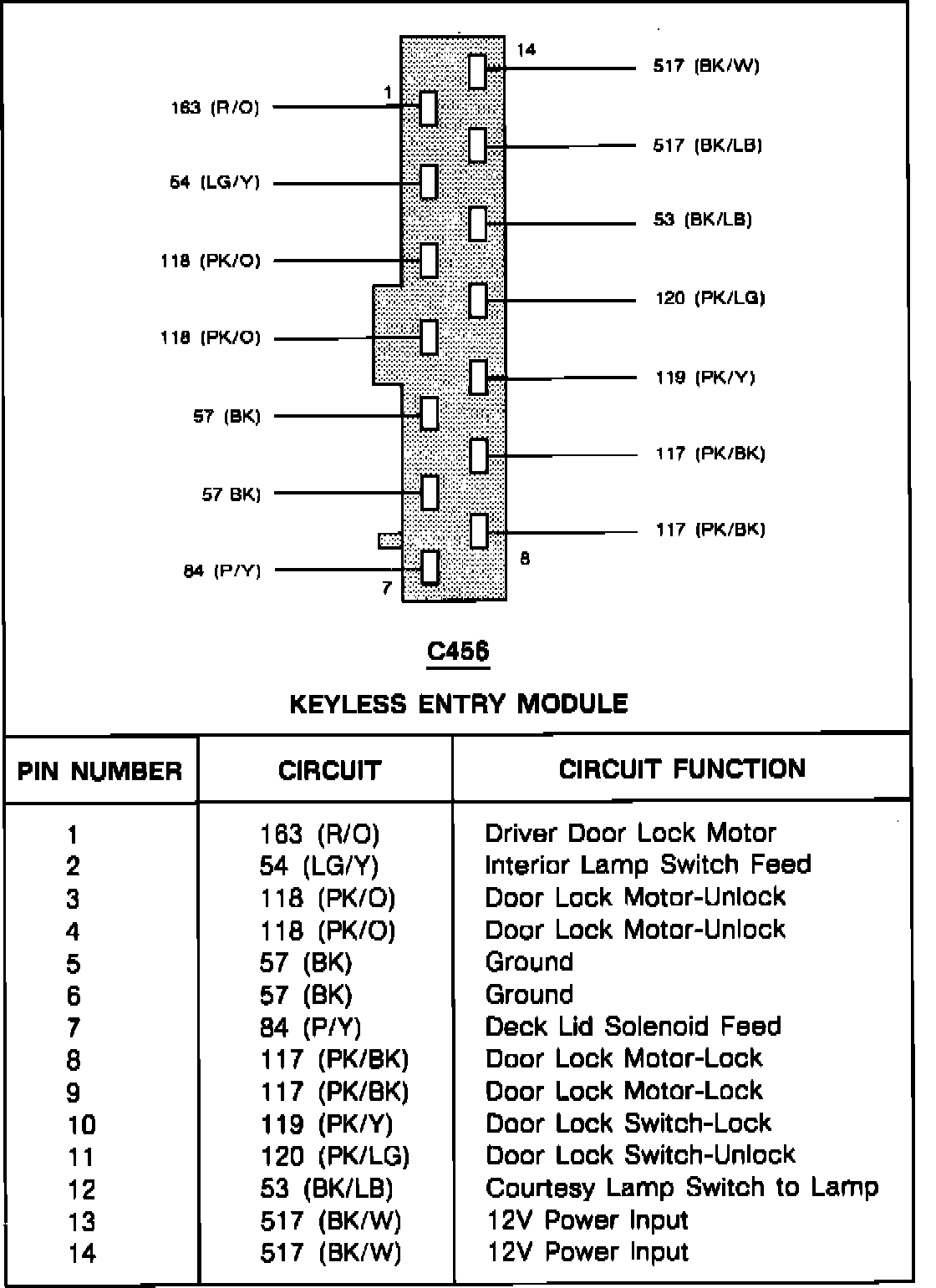

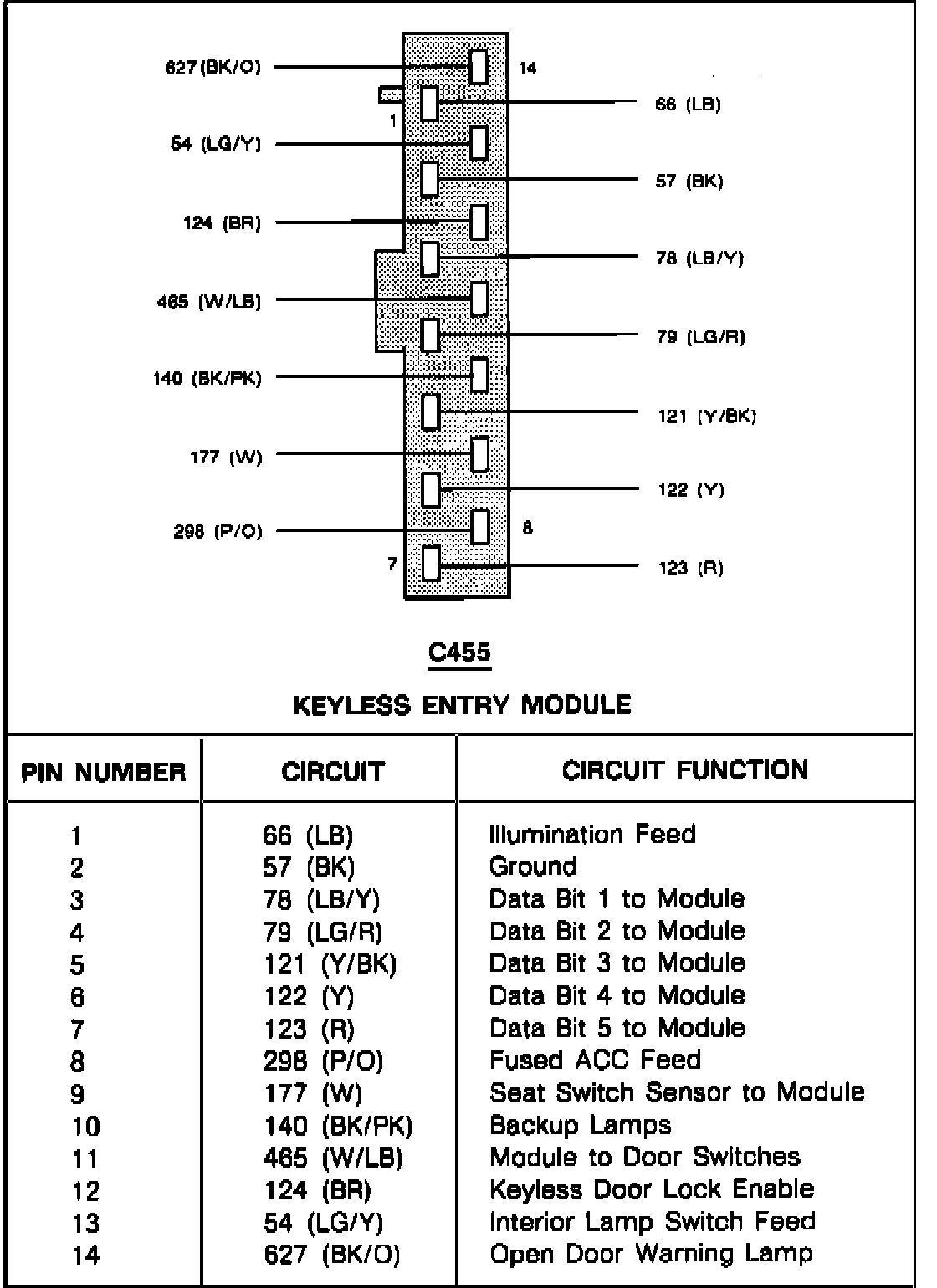

Connector Faces/Pinout Charts:
Connector Faces/Pinout Charts:
