Ford
>>
1992
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cruise Control Module
>>
Without Digital Cluster
Without Digital Cluster

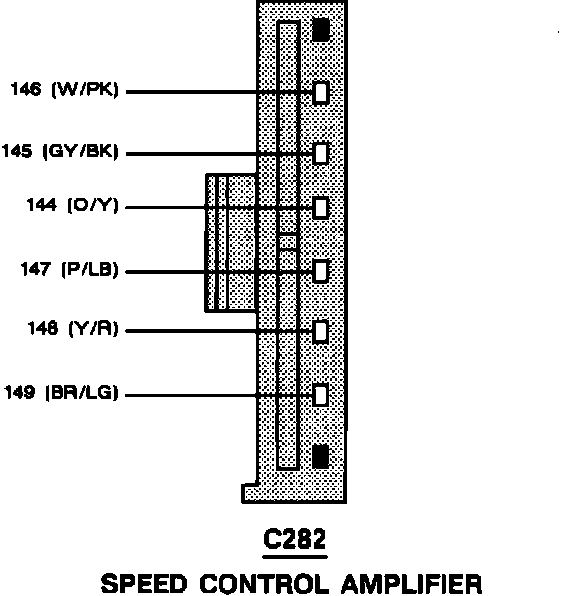

Connector Faces/Pinout Charts:
