Ford
>>
1992
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC

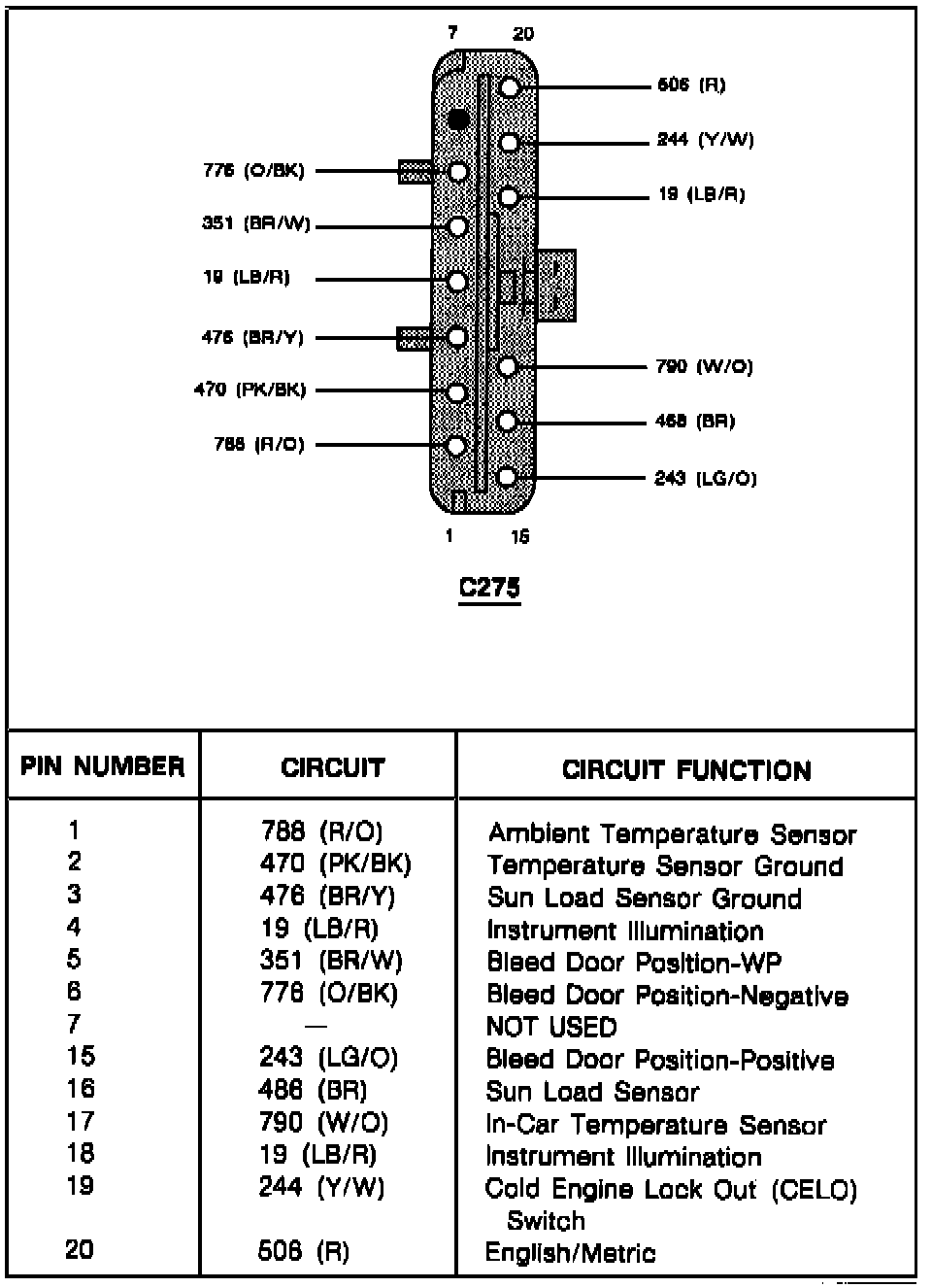

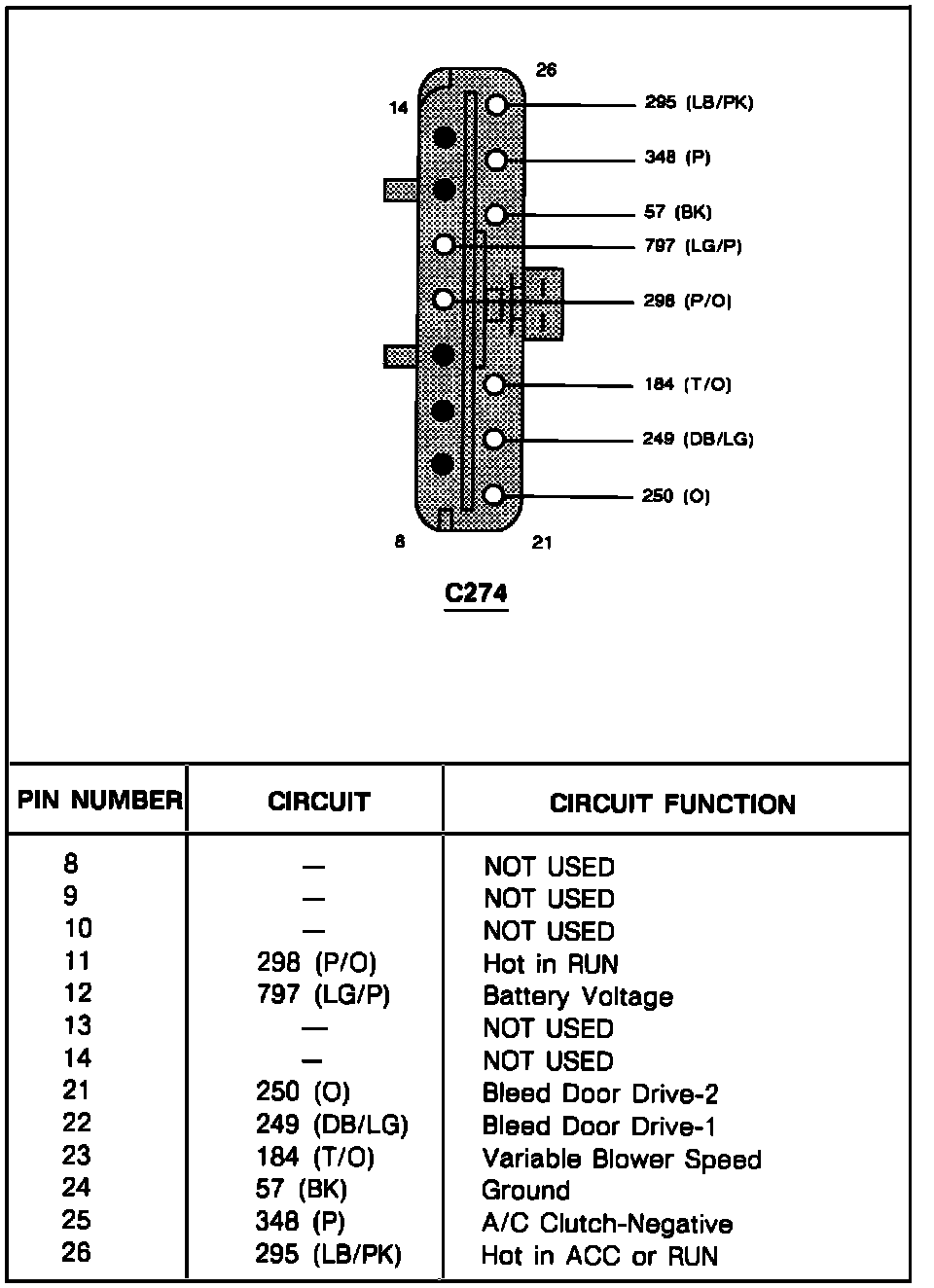

Connector Faces/Pinout Charts:
Connector Faces/Pinout Charts:
