Air Bag Control Module
Air Bag Control Module

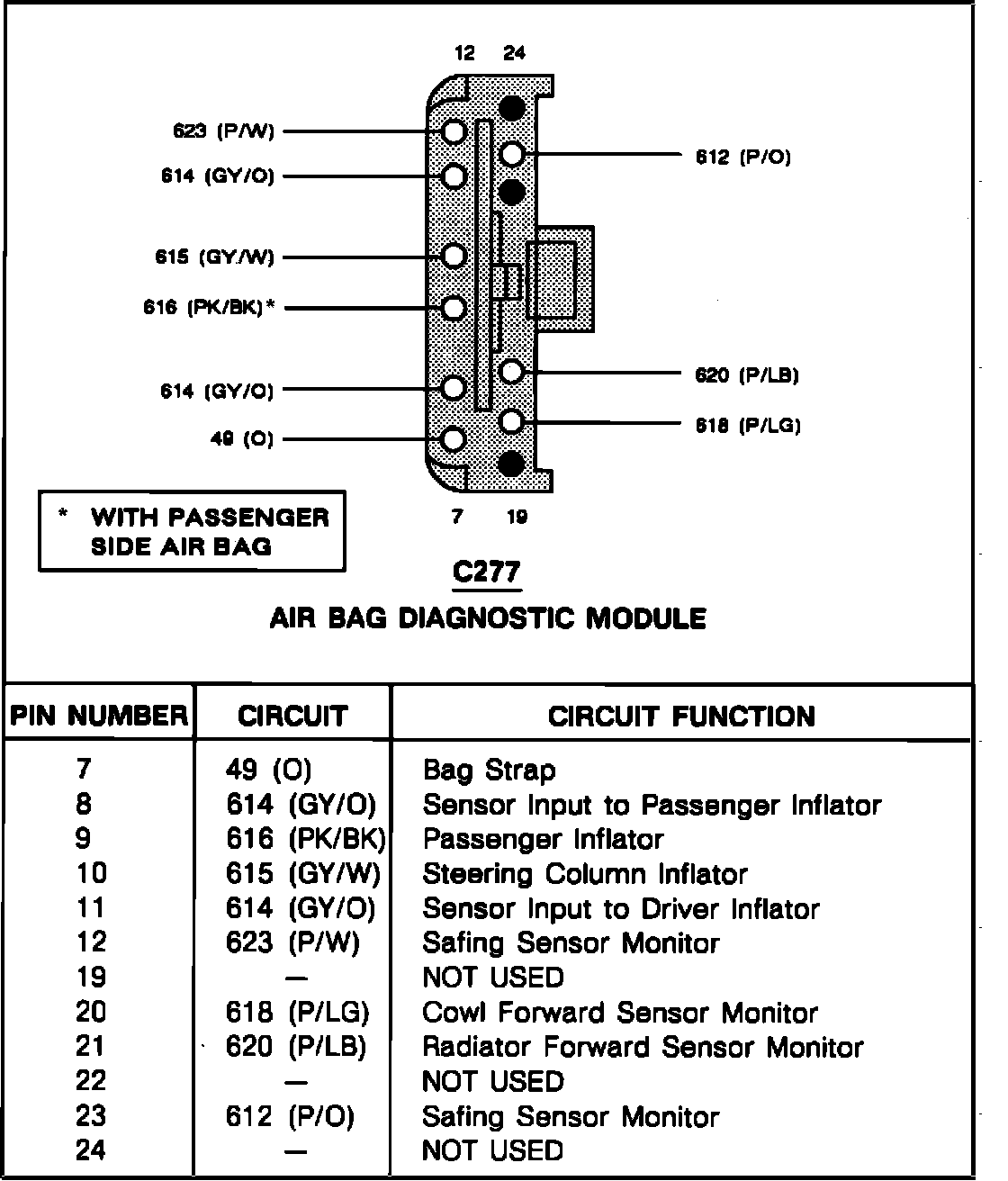

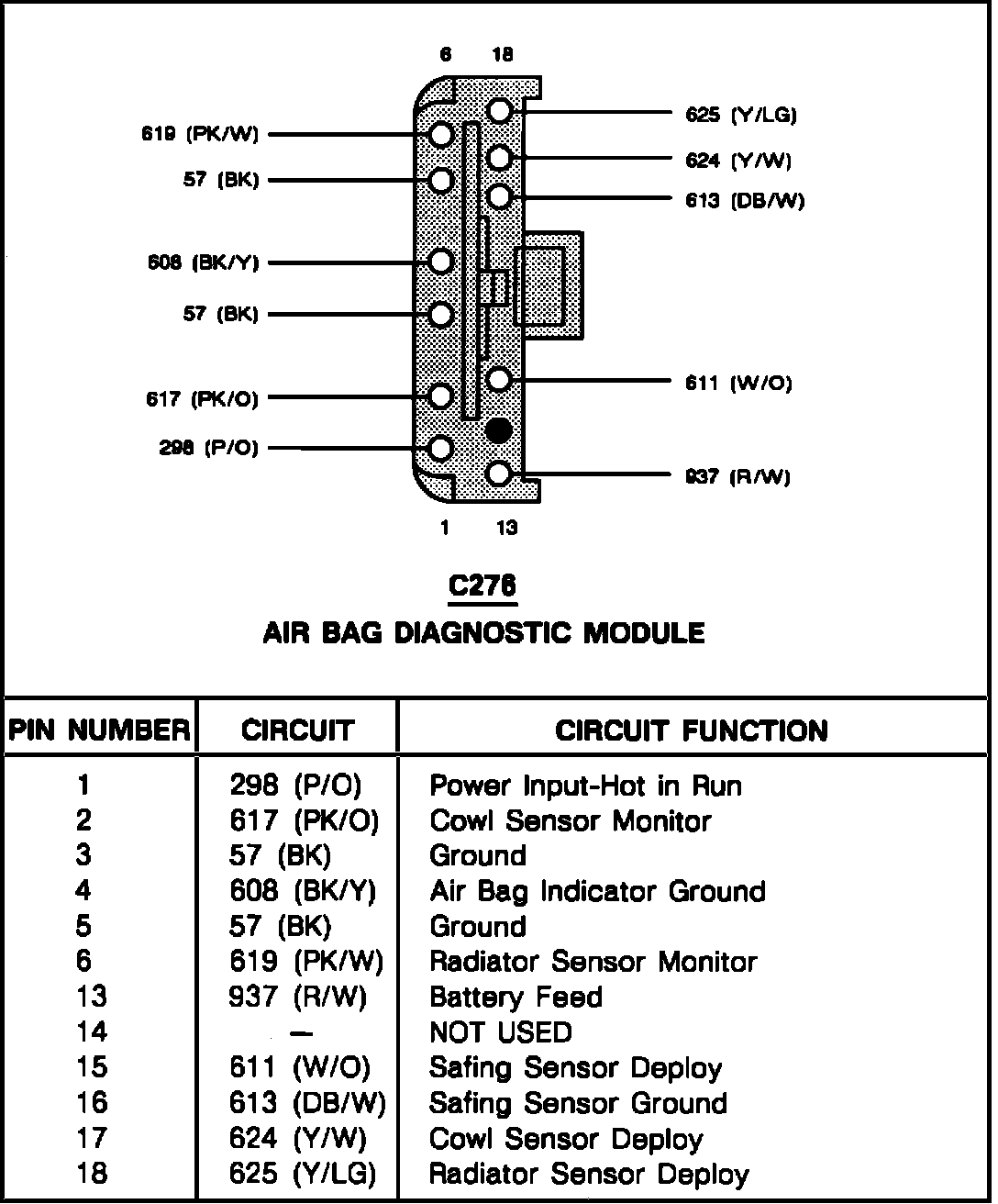

Connector Faces/Pinout Charts:
Connector Faces/Pinout Charts:
