Home >> Ford >> 1992 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

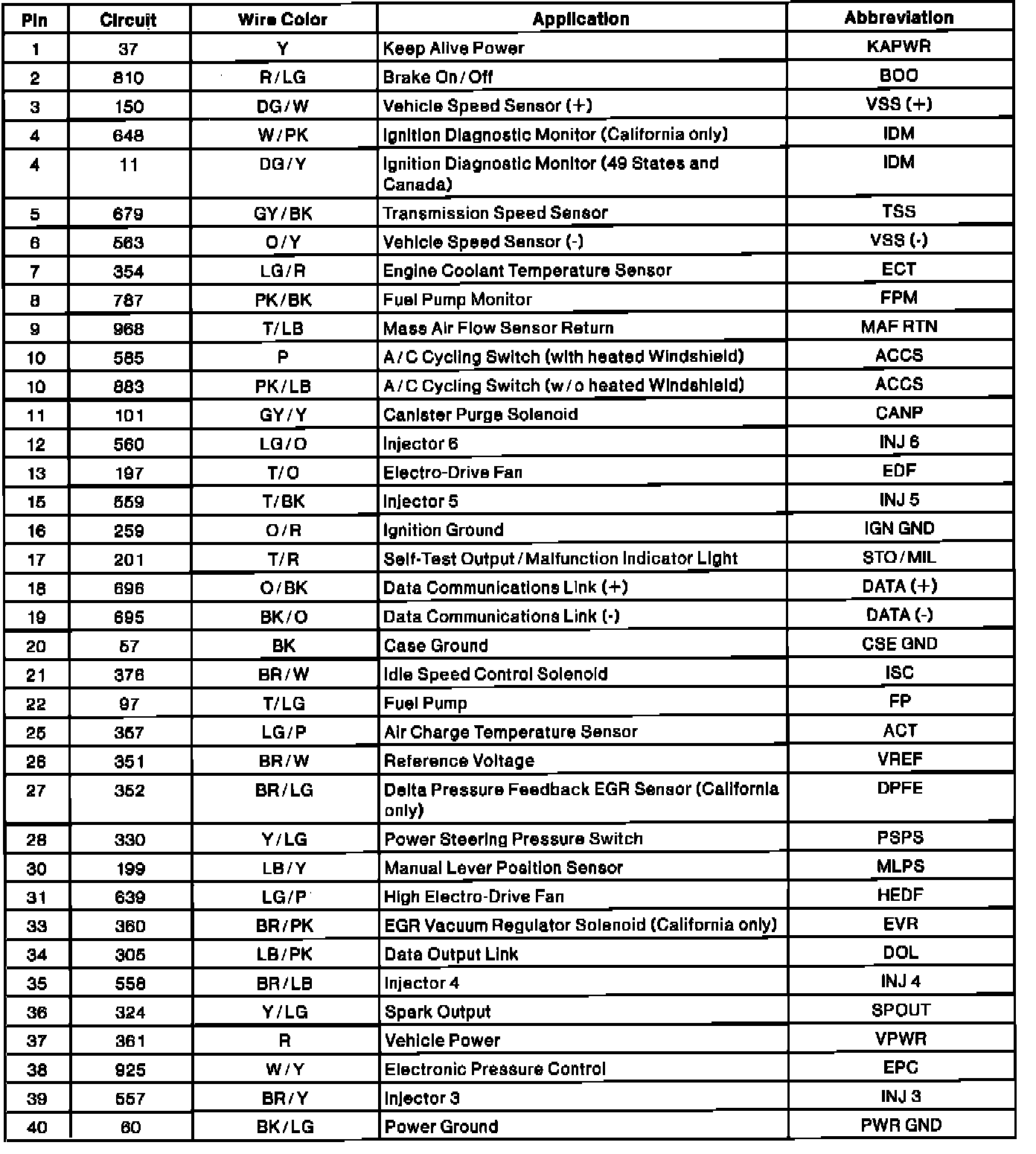

Electronic Engine Controller Connector Pinout:

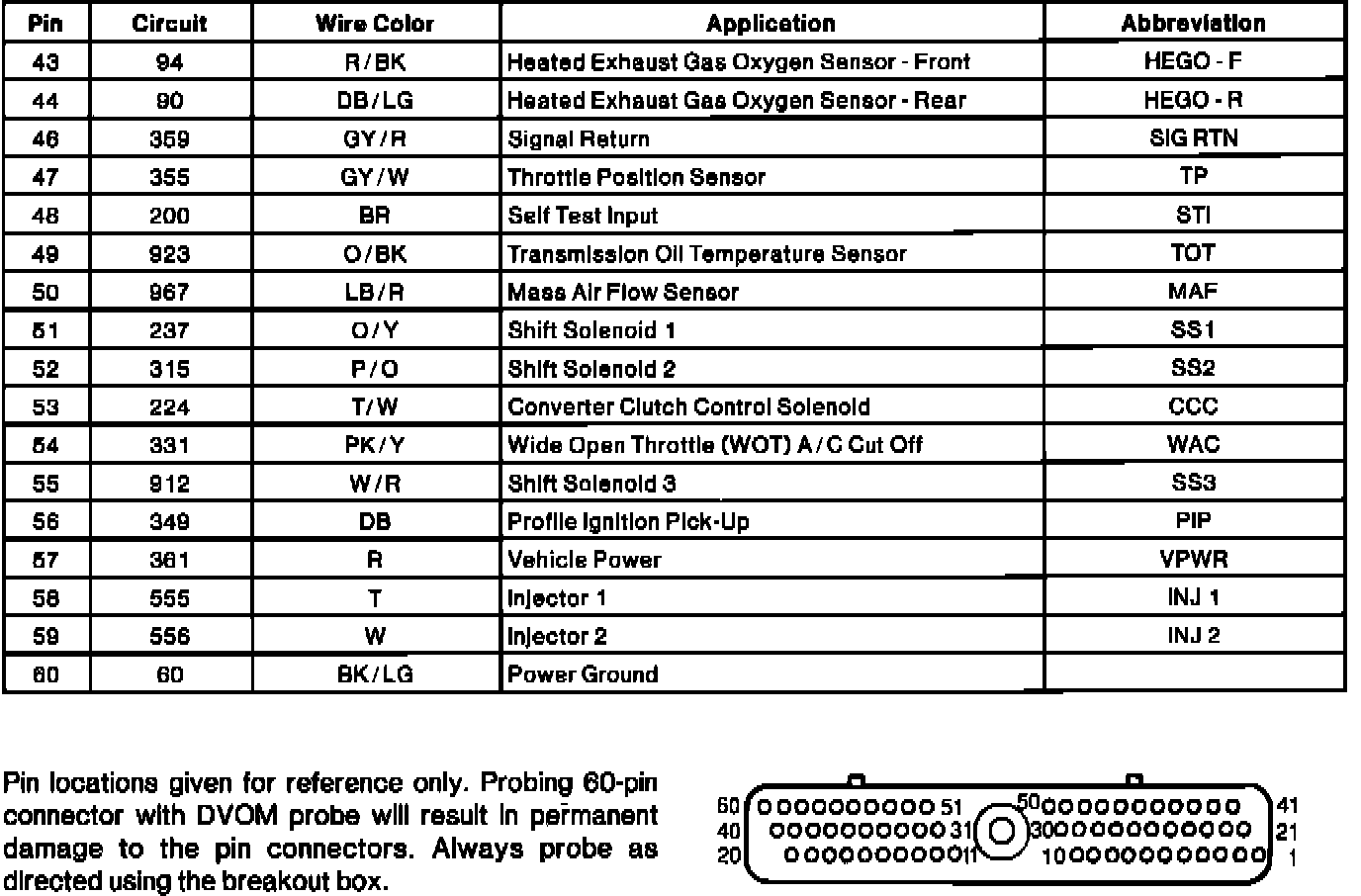

Electronic Engine Controller Connector Pinout:
