Ignition Switch: Testing and Inspection

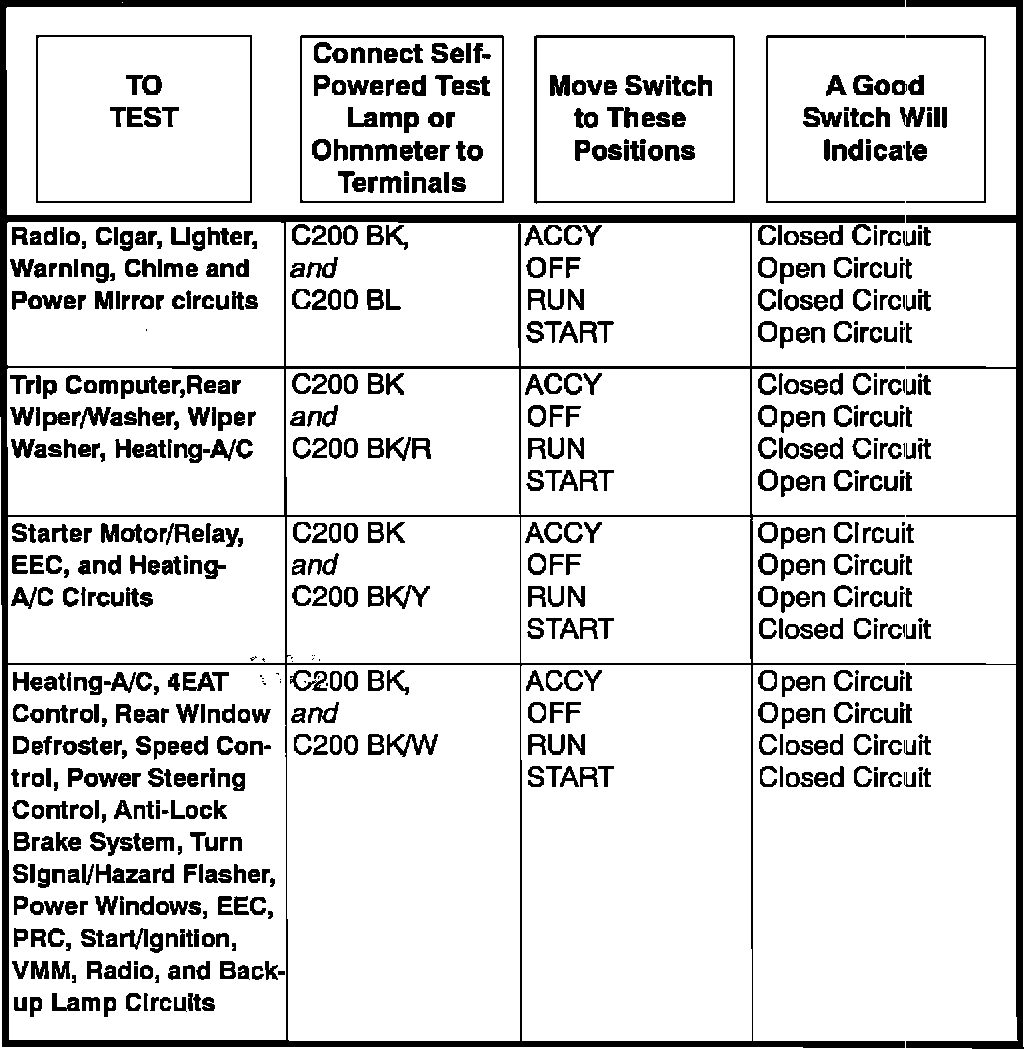

COMPONENT TESTING PROCEDURE


Component Testing Procedure:

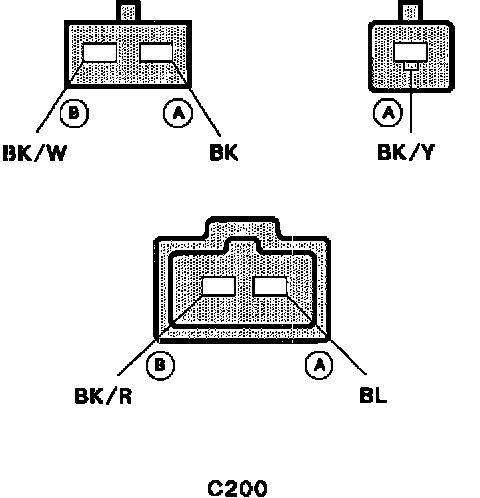

TERMINAL IDENTIFICATION


Terminal Locations:

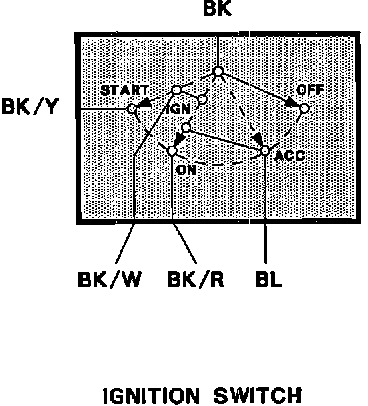

SCHEMATIC


Schematic:
