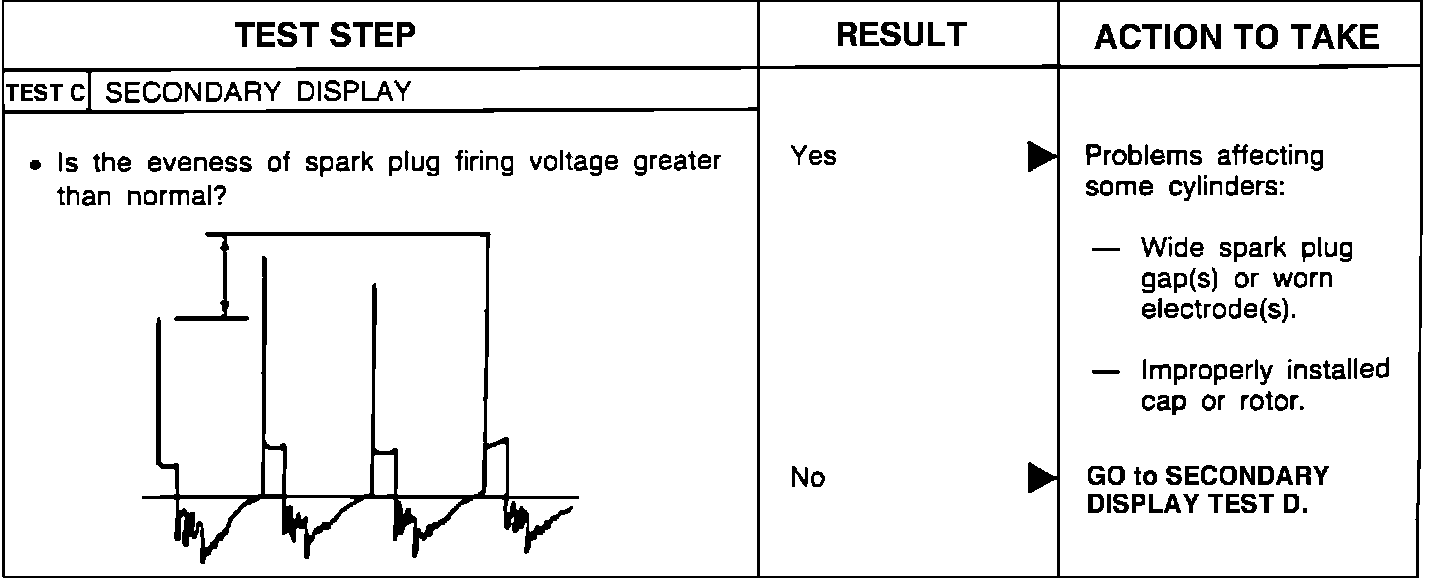

Home >> Ford >> 1992 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Oscilloscope Patterns and Waveforms >> Secondary Display Patterns >> Test C
