Primary Display Patterns
>>
Push Start Ignition Control Module
Push Start Ignition Control Module

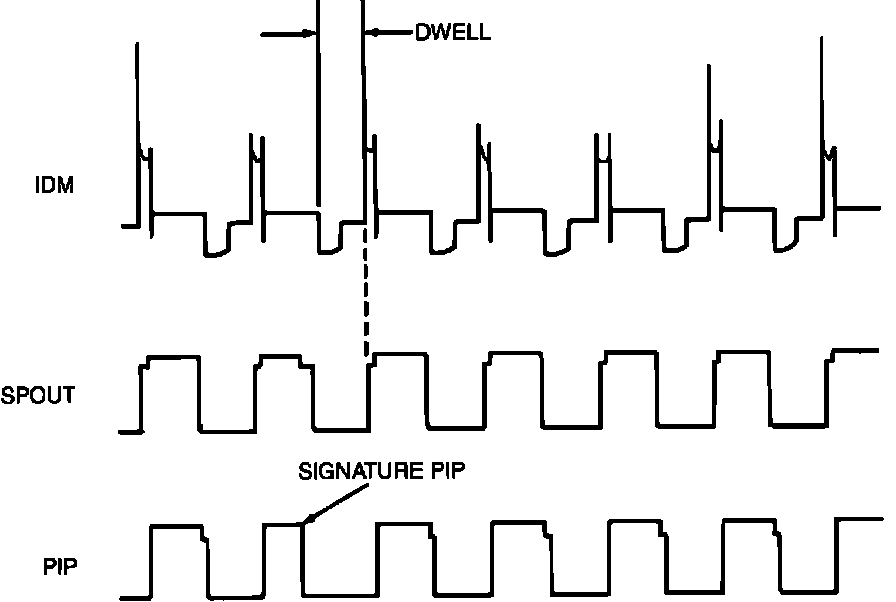

Push Start TFI-IV Waveforms:
