Home >> Ford >> 1992 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> Antilock Brake Control Module

Antilock Brake Control Module

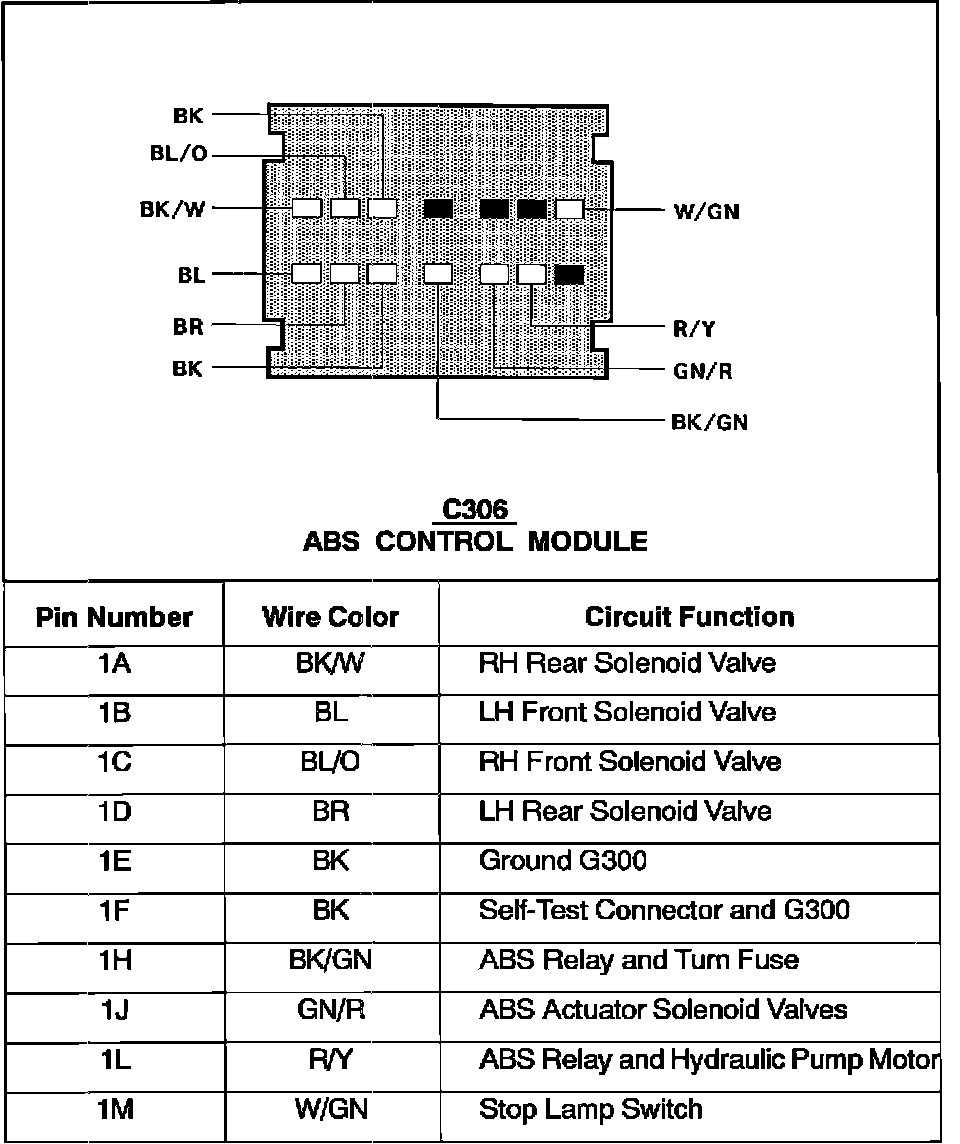

ABS Control Module:

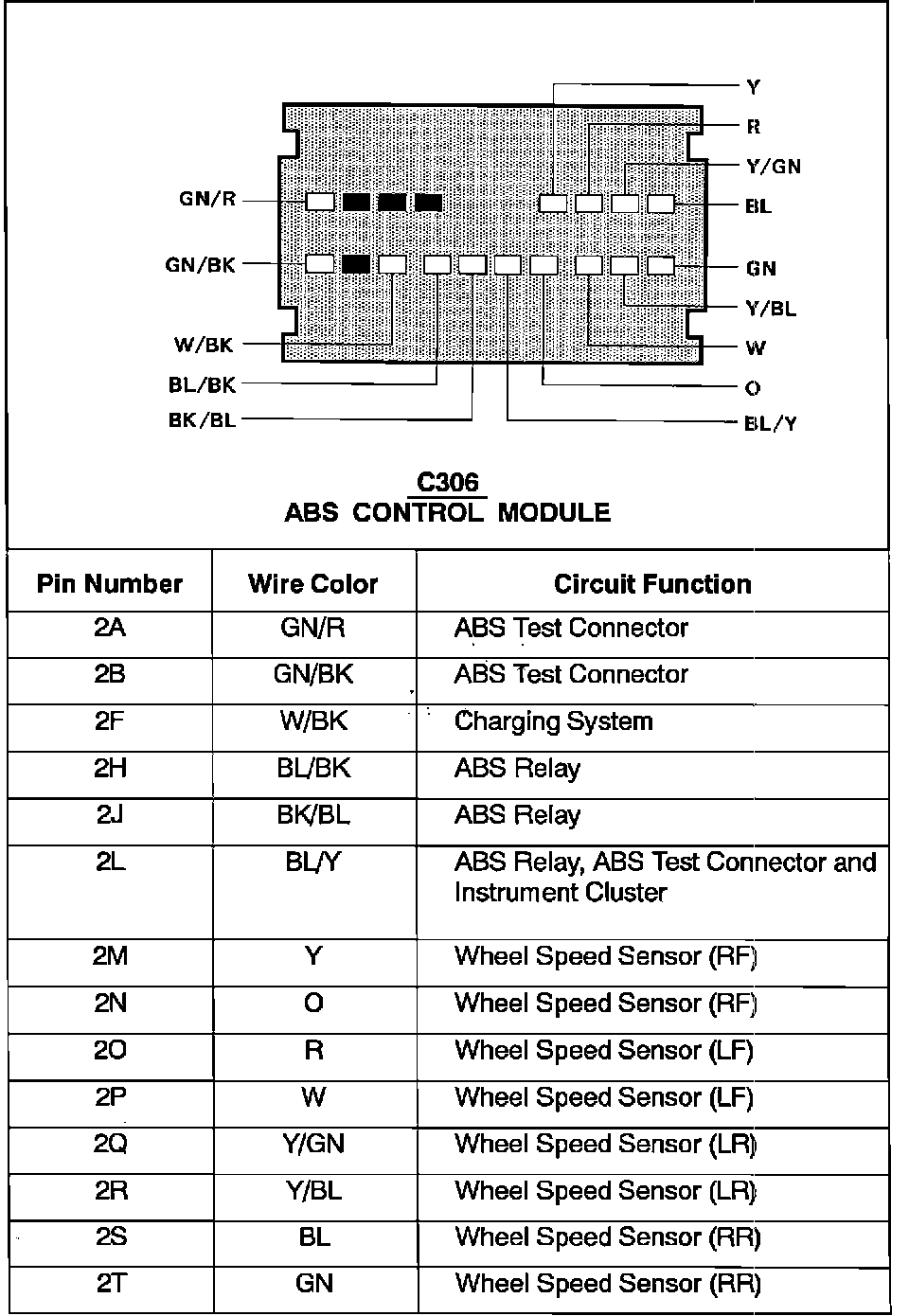

ABS Control Module:
