Home >> Ford >> 1992 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

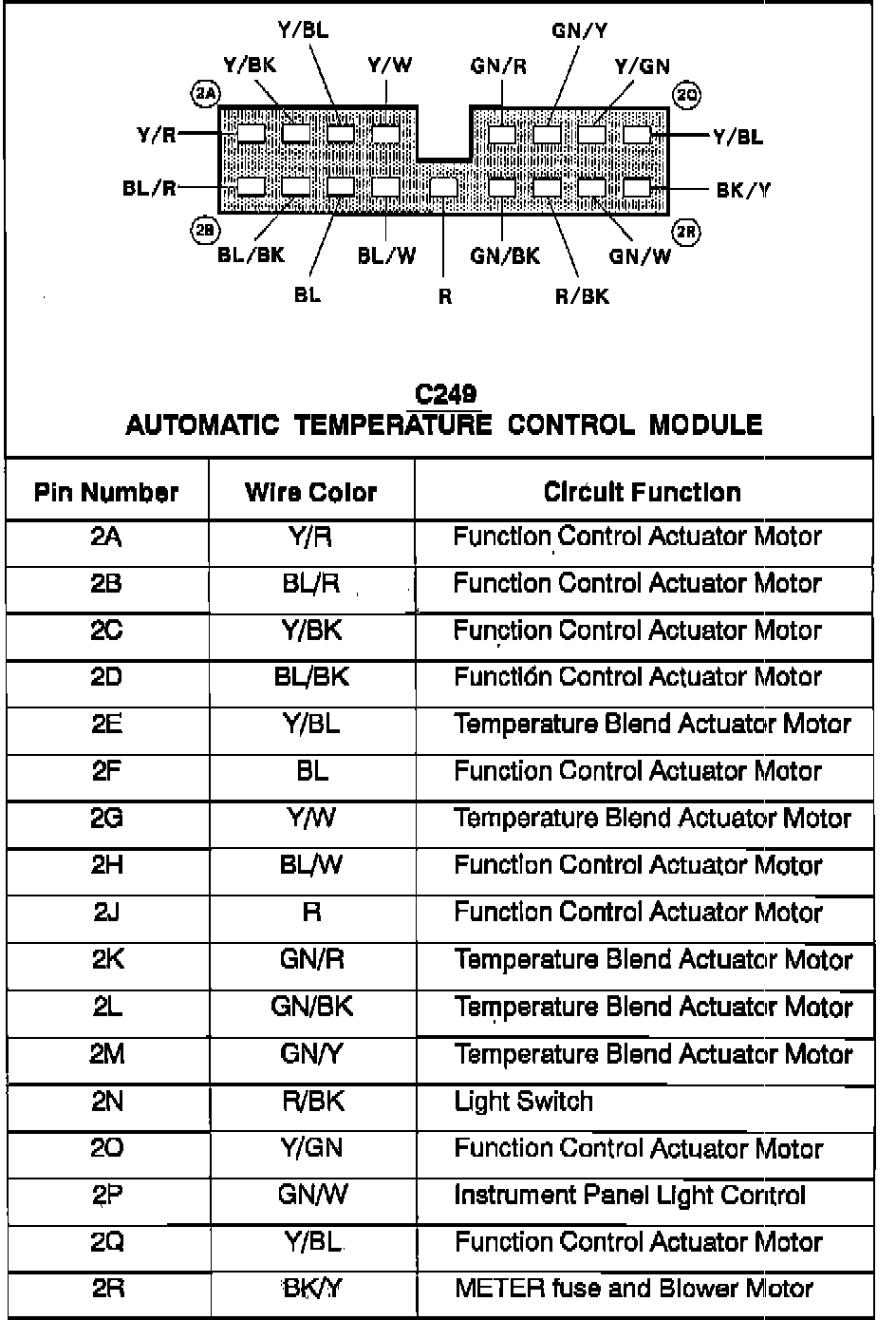

Automatic Temperature Control Module:

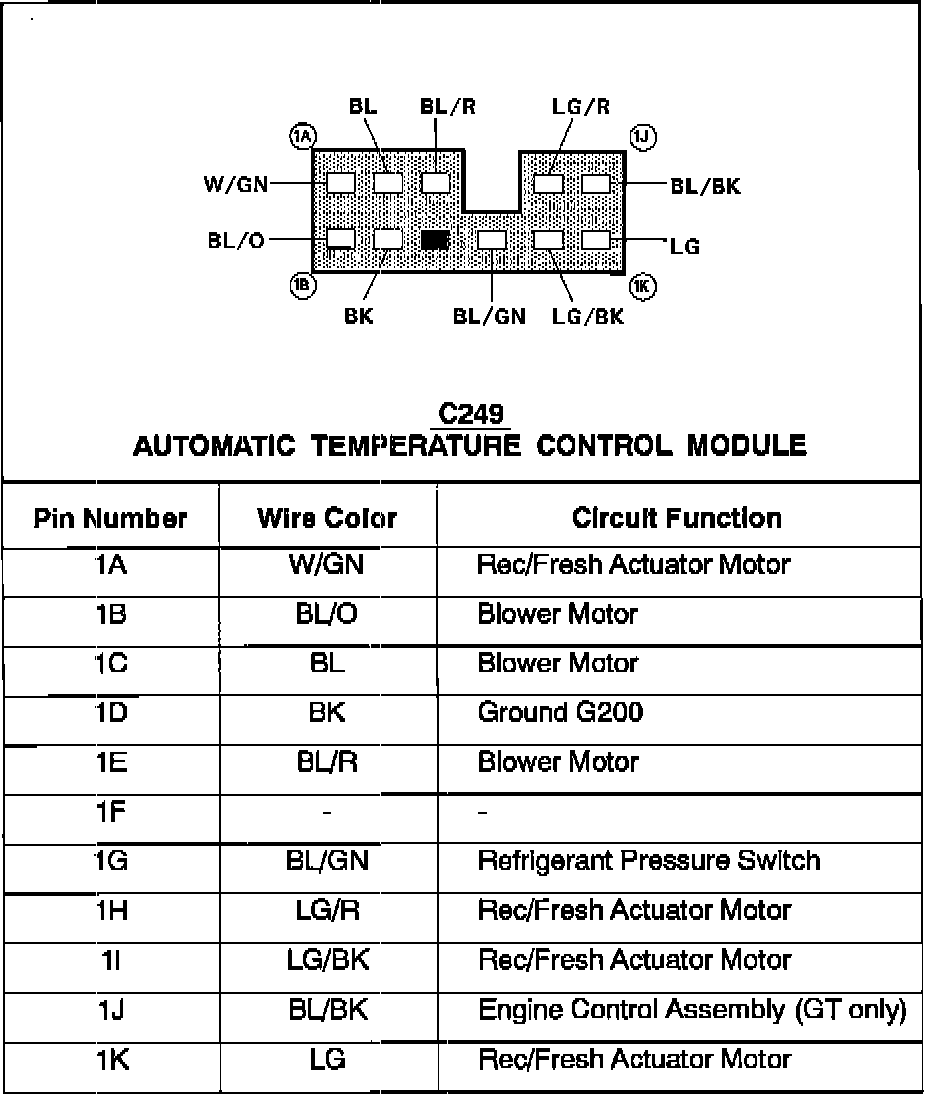

Automatic Temperature Control Module:
