Home >> Ford >> 1992 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Specifications

Throttle Position Sensor: Specifications

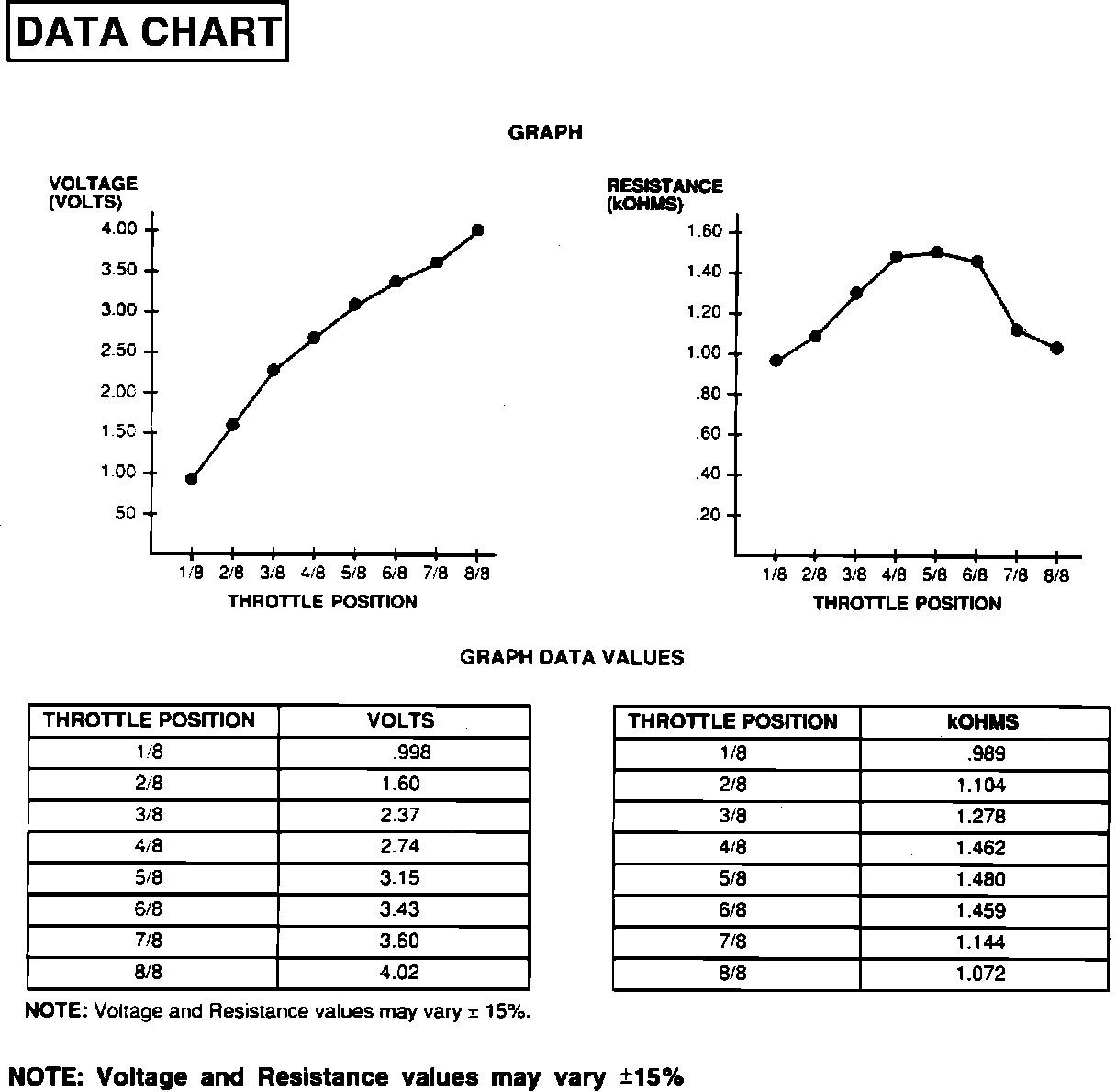

Throttle Position (TP) Sensor Data Chart:

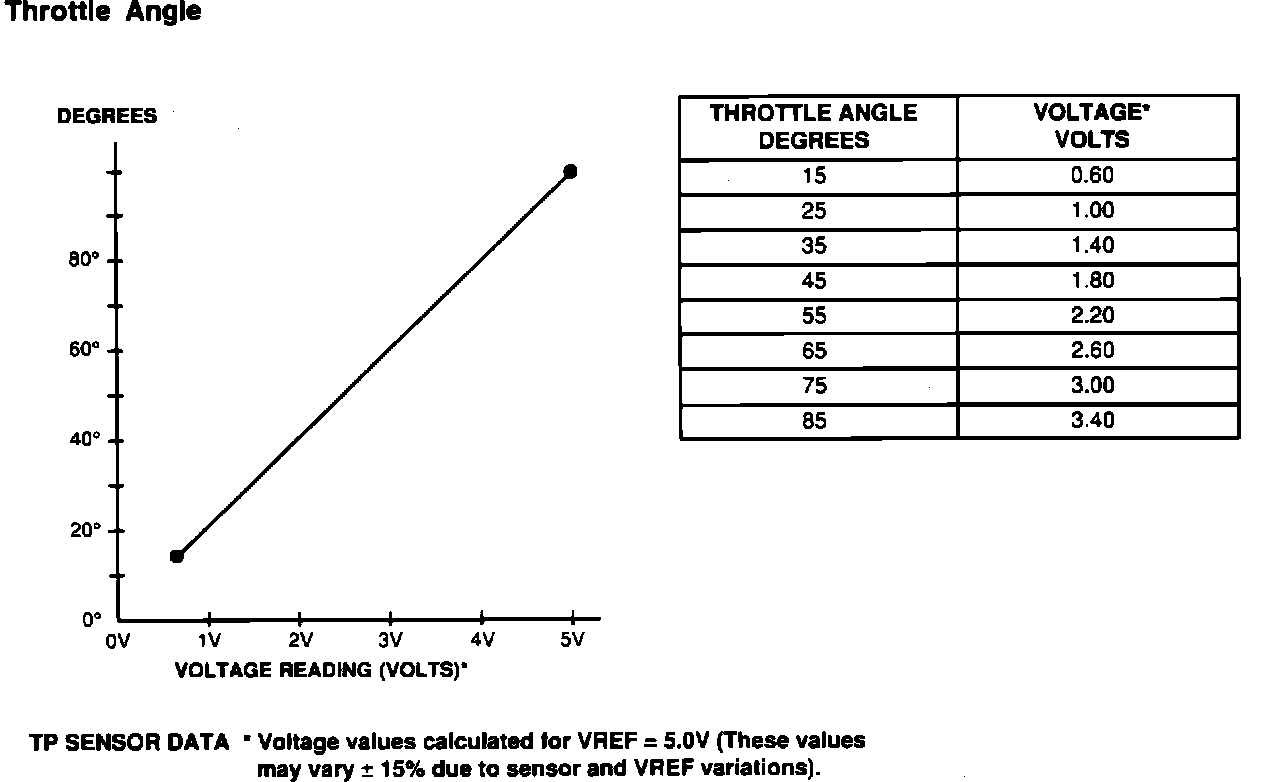

Pinpoint Test TP Data Chart:
