Ford
>>
1992
>>
Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Part 1 of 2
Part 1 of 2

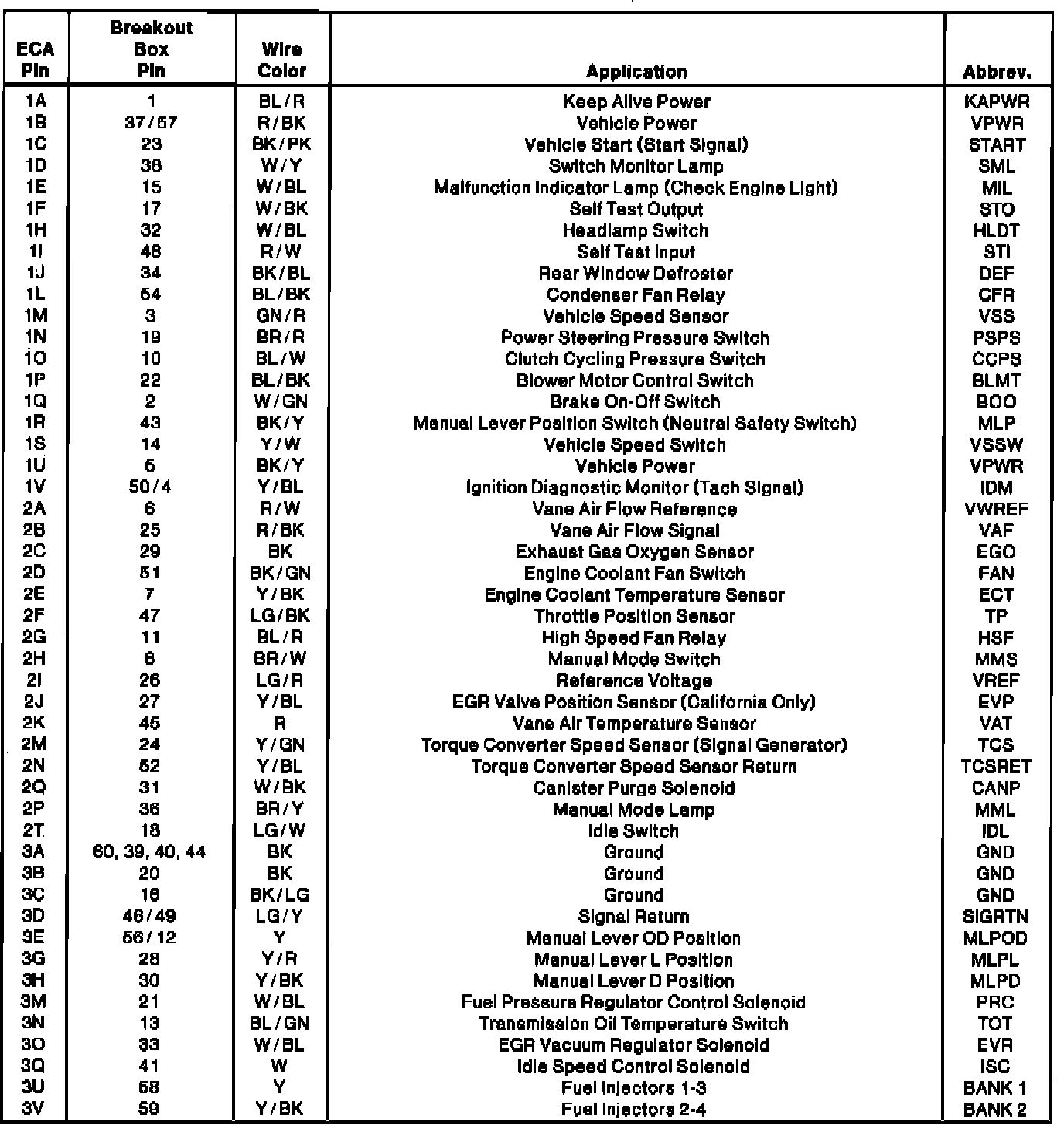

Electronic Control Assembly Connector Terminal I.D.:
