Home >> Ford >> 1991 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

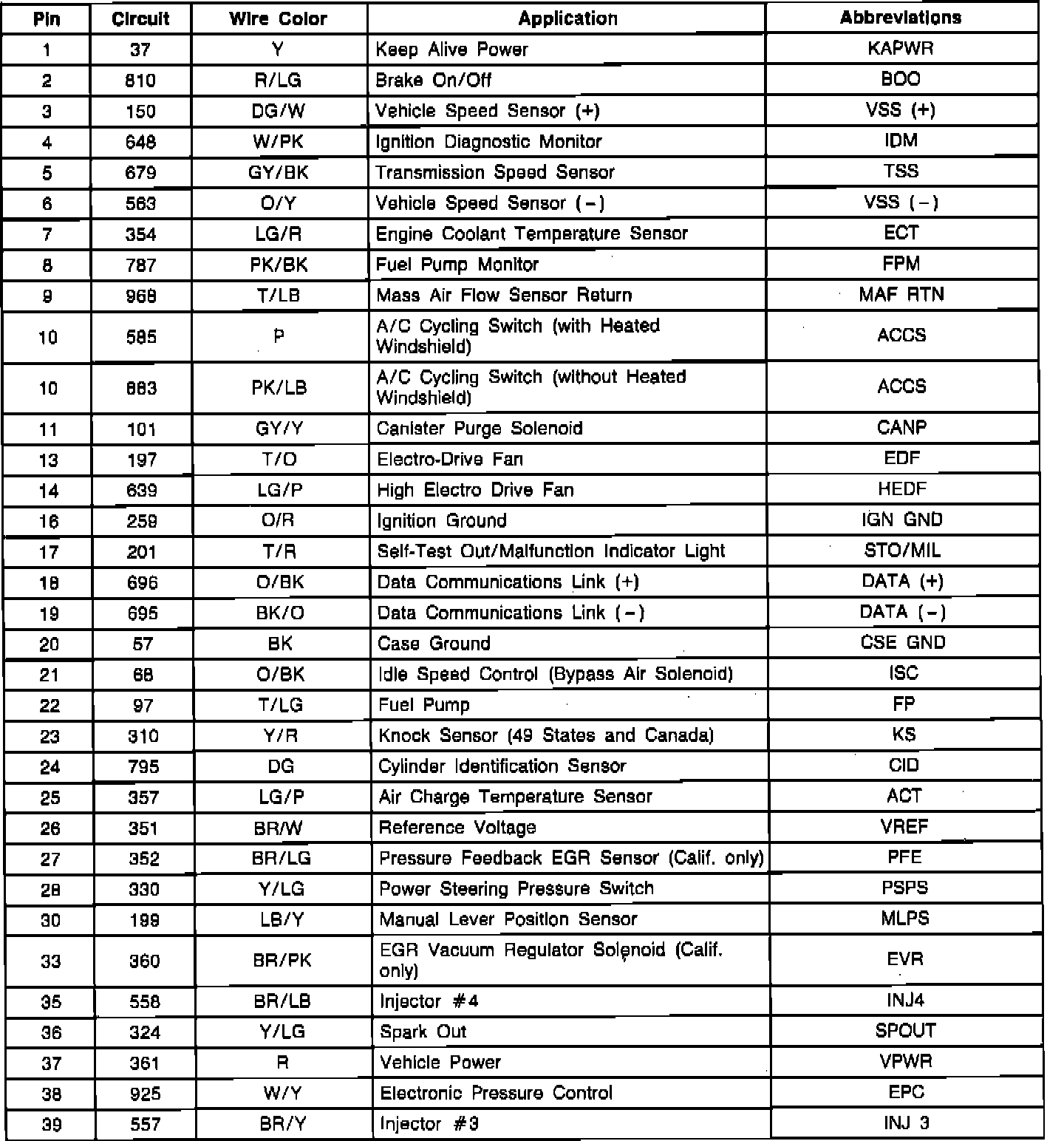

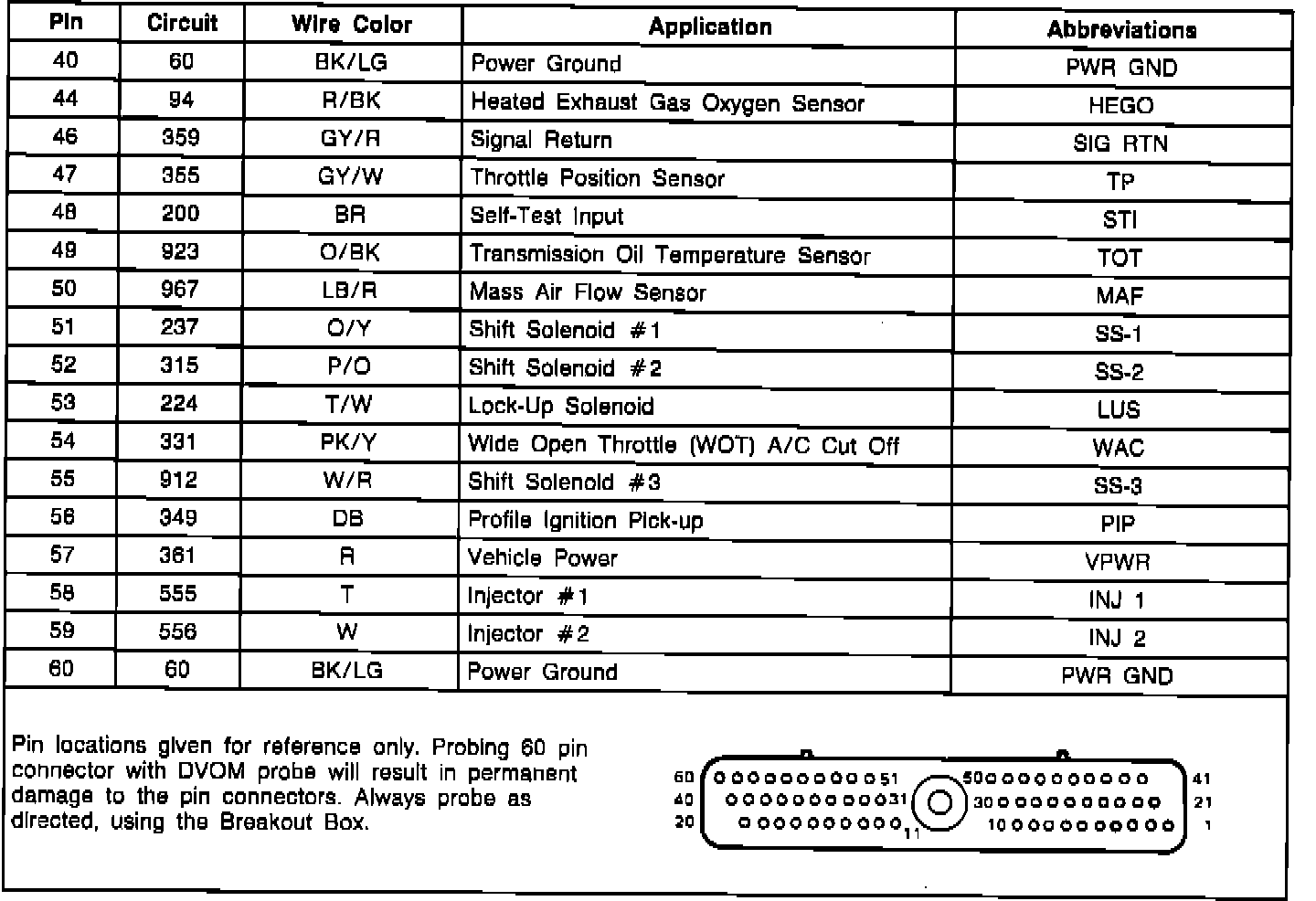

Electronic Control Assembly (ECA) Connector Pinout:



Electronic Control Assembly (ECA) Connector Pinout:
