Home >> Ford >> 1991 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

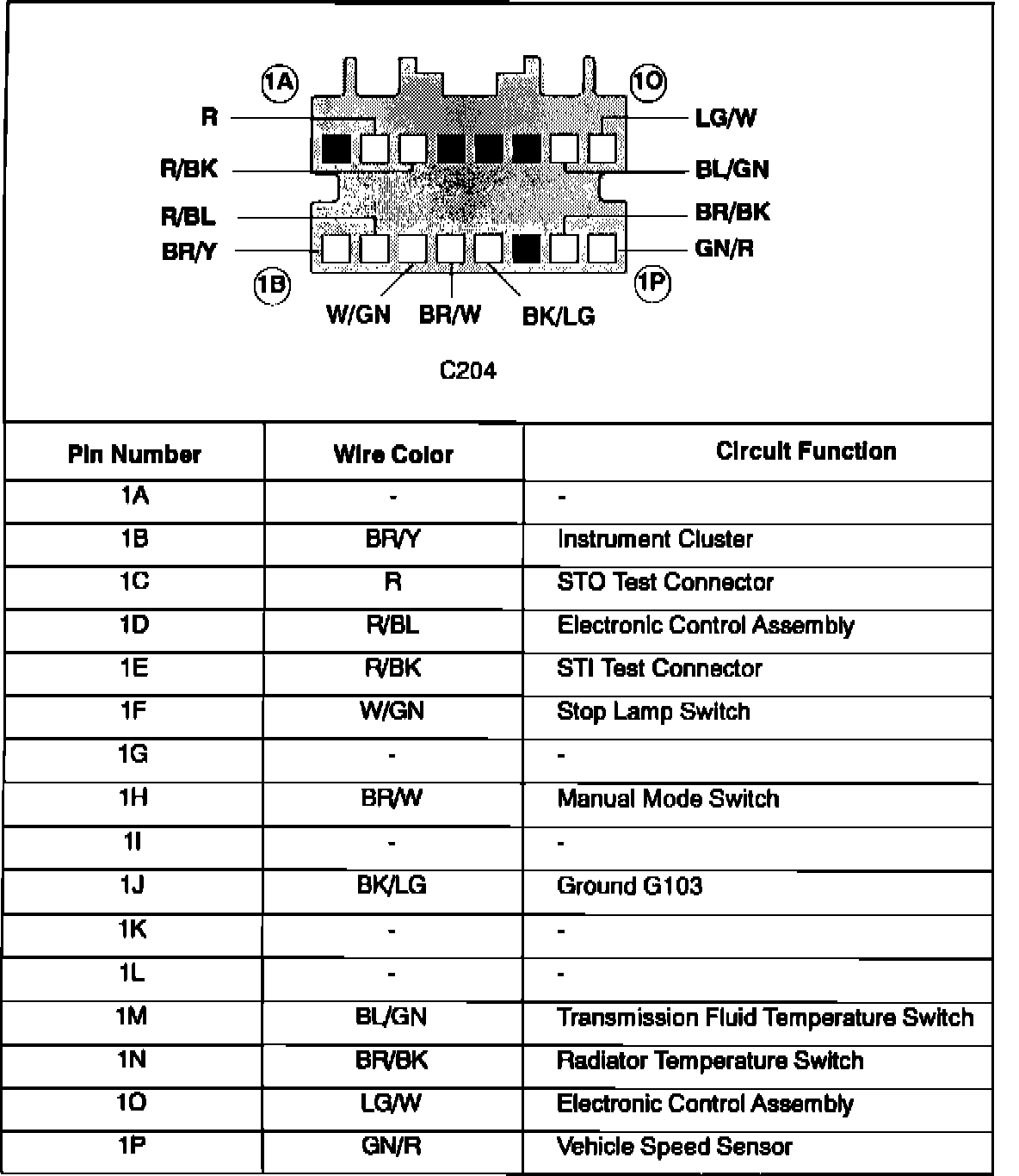

4EAT Control Module Connector:

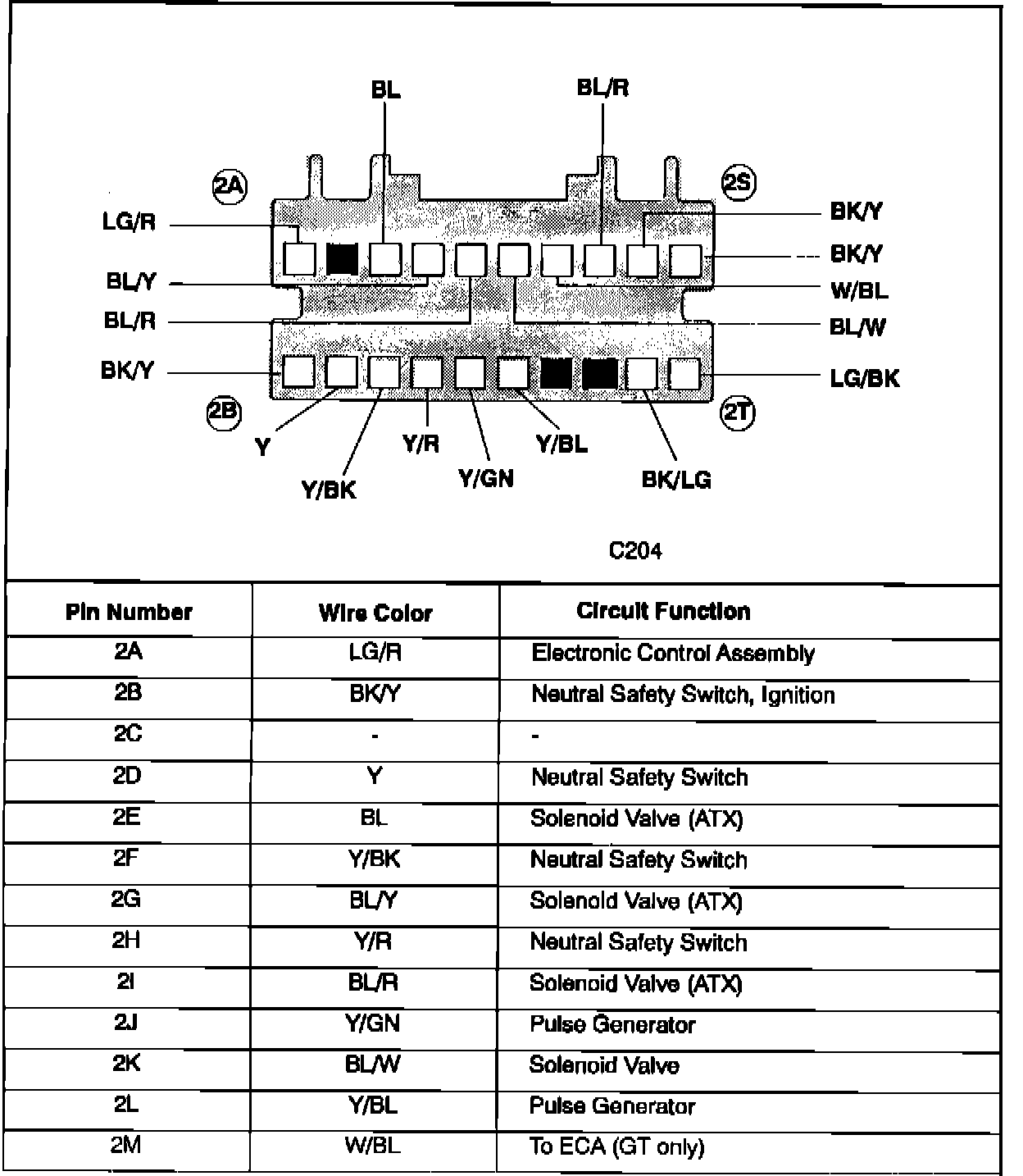

4EAT Control Module Connector:

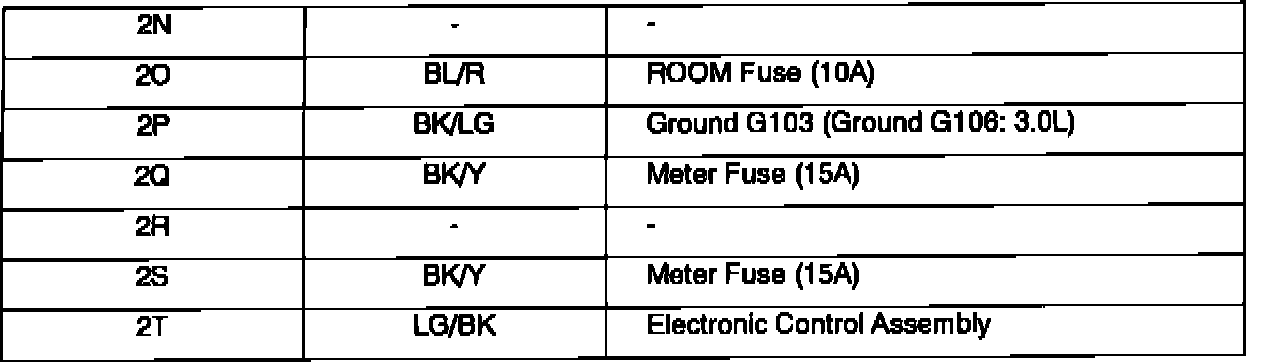

4EAT Control Module Connector:
