Ford
>>
1991
>>
Explorer 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>

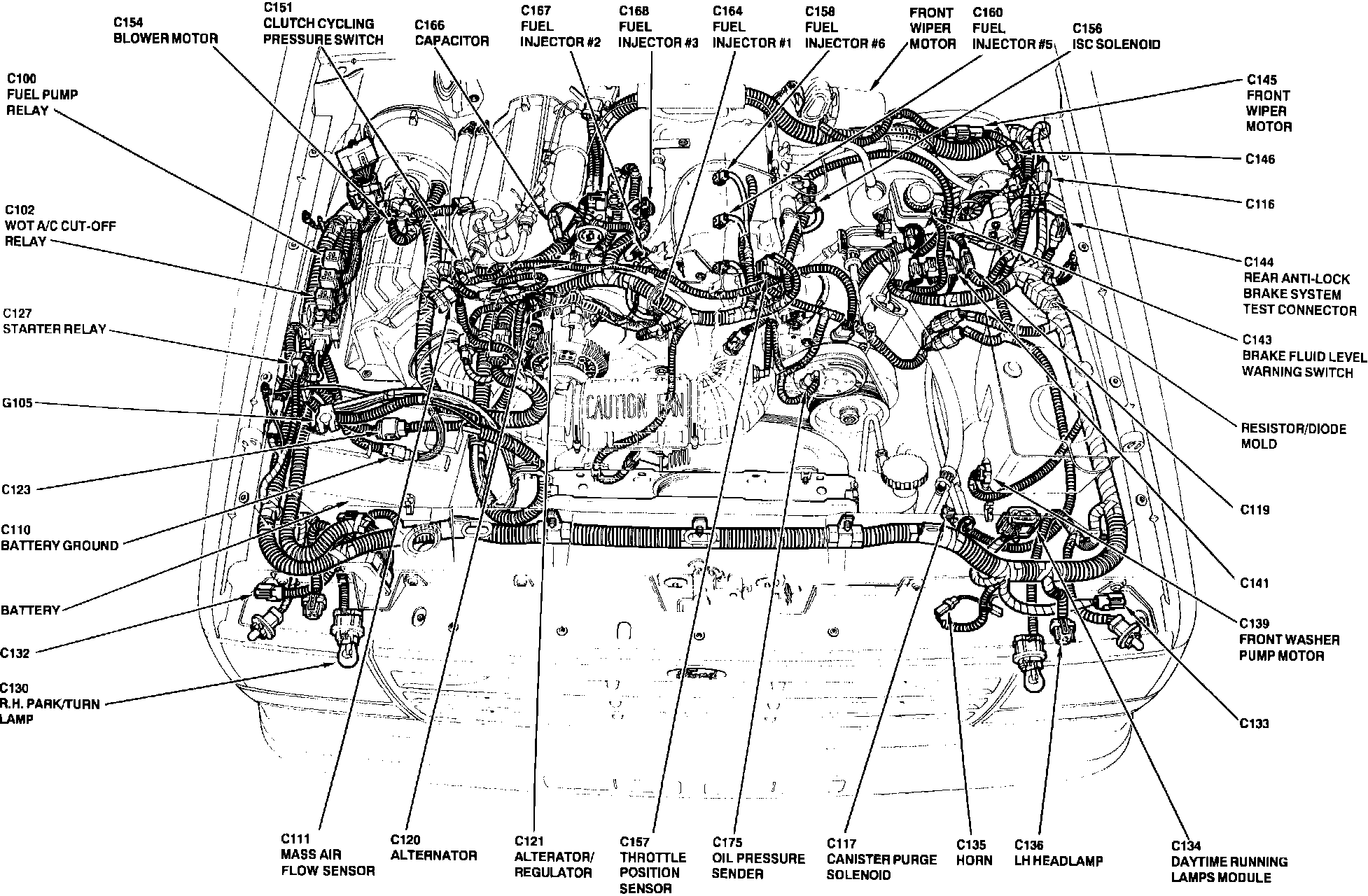

Engine Compartment View
Engine Compartment View

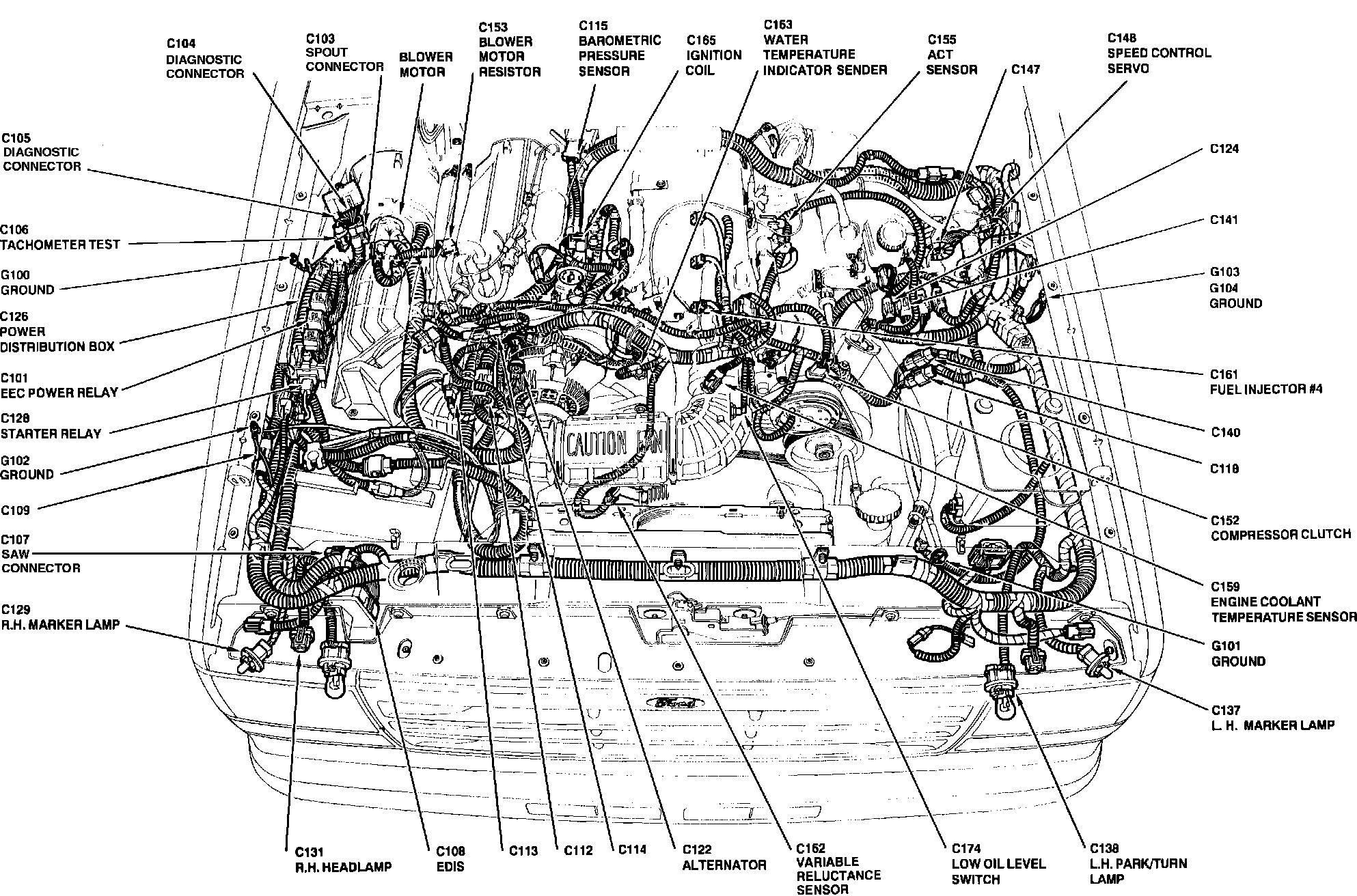

Under Hood View:
Under Hood View:
