Ford
>>
1991
>>
Explorer 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Control Module
Ignition Control Module

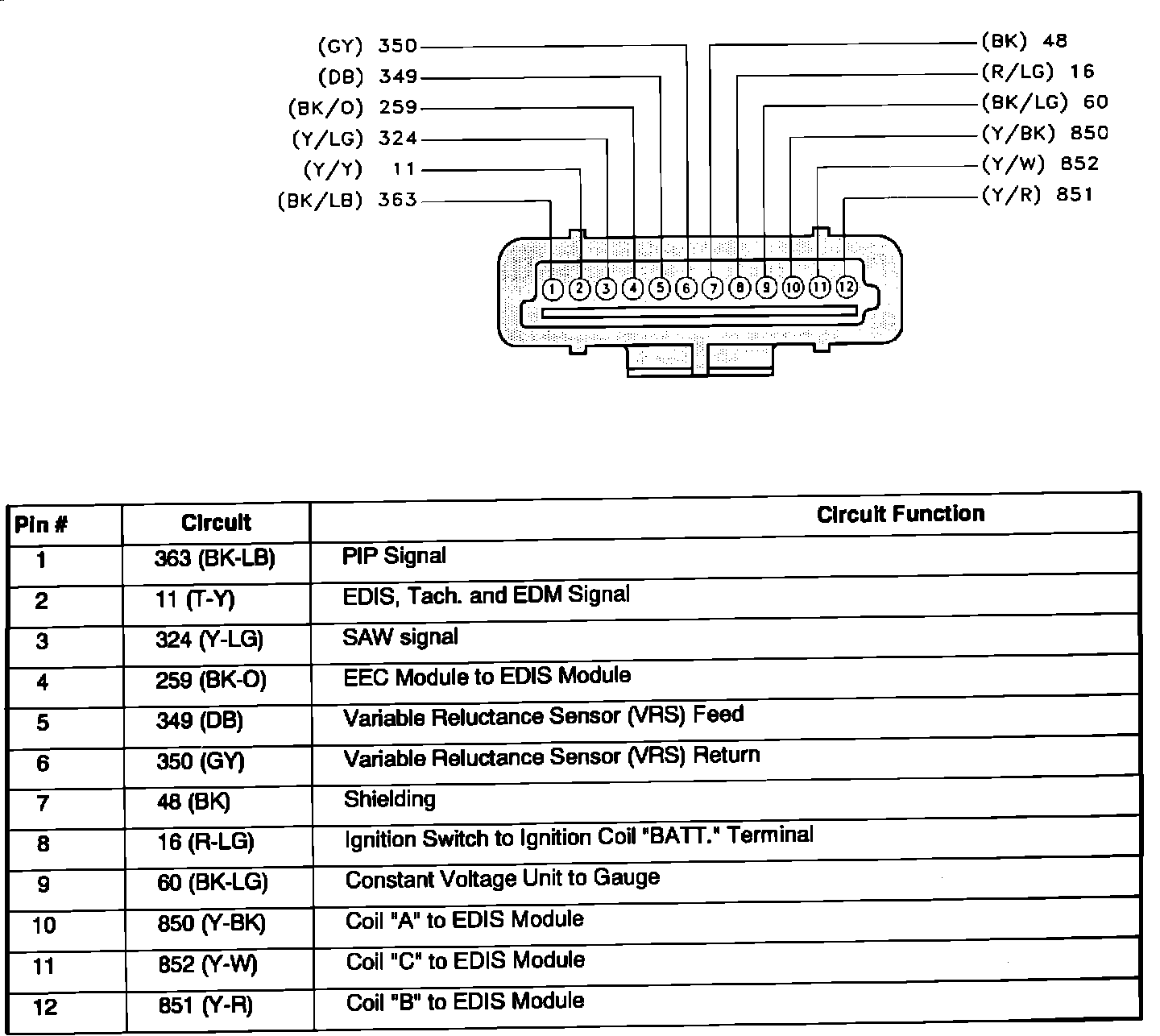

Electronic Distributorless Ignition System (EDIS) Module Connector:
