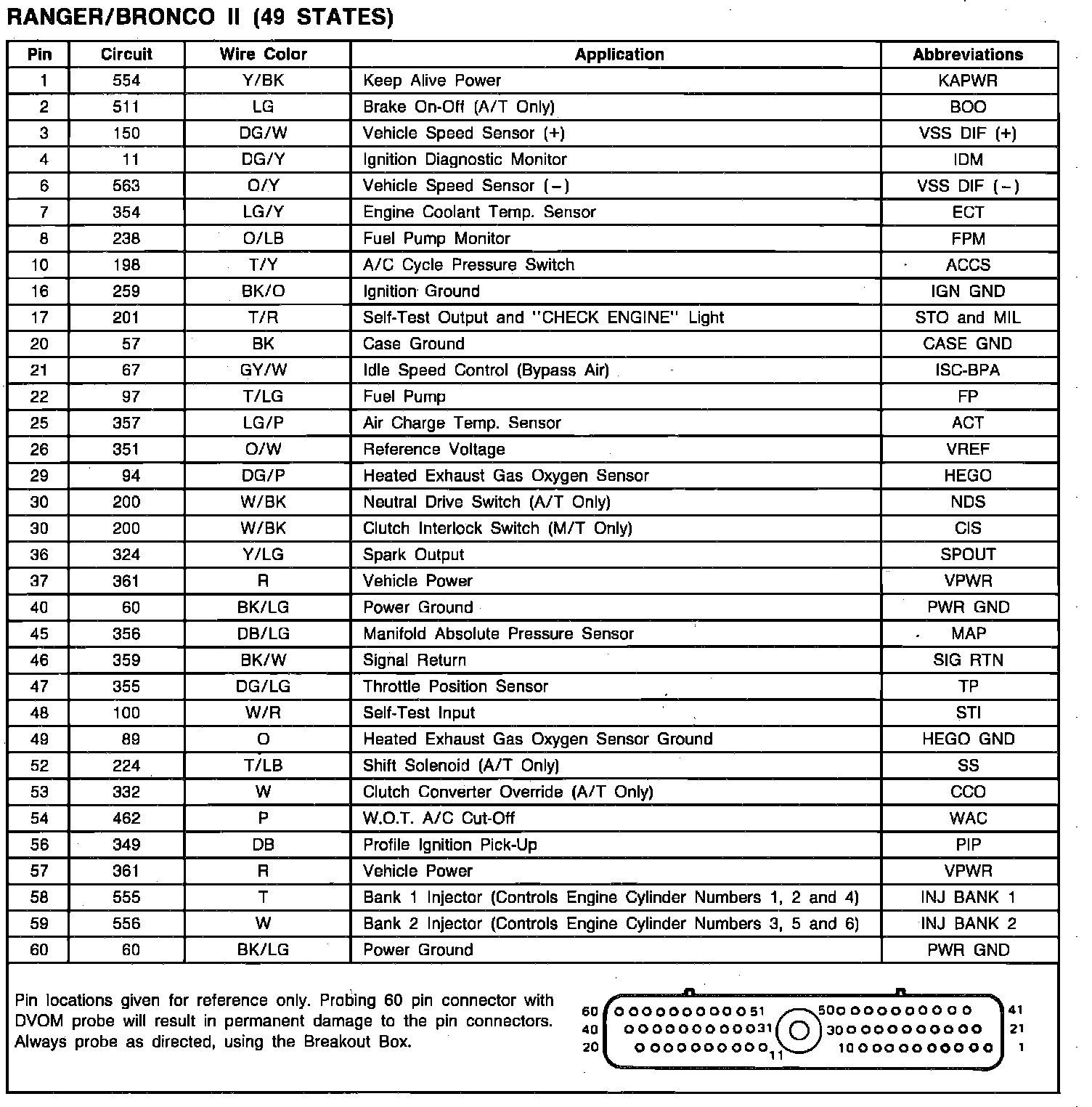

Home >> Ford >> 1990 >> Ranger 2WD V6-177 2.9L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> With Federal Emissions
