X18 - X21

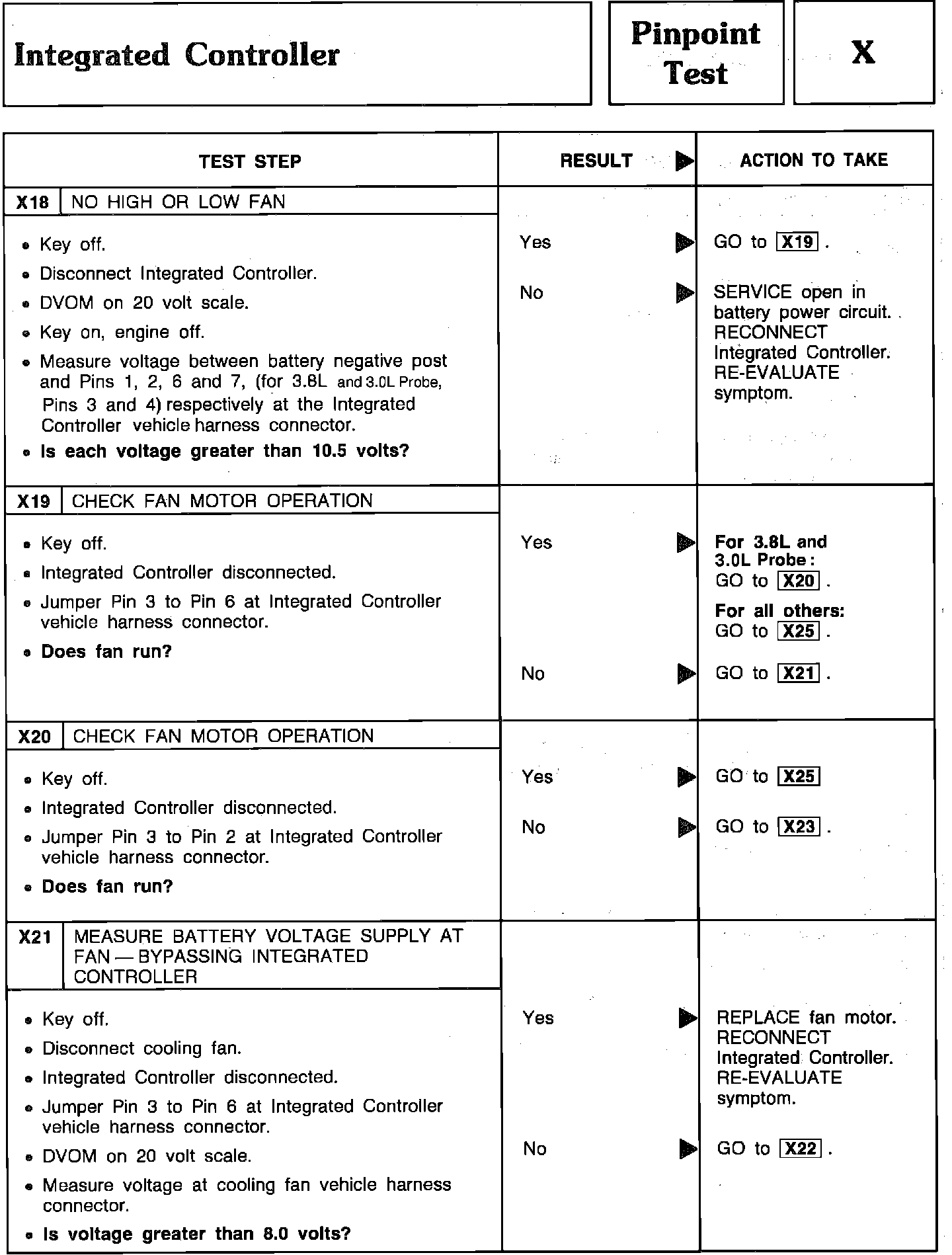

Pinpoint Test X18 Thru X21 - Integrated Controller:





*** UPDATED BY TSB #906B16 03-23-90
