BME14: Check Transistor Continuity
BME14: Check Transistor Continuity

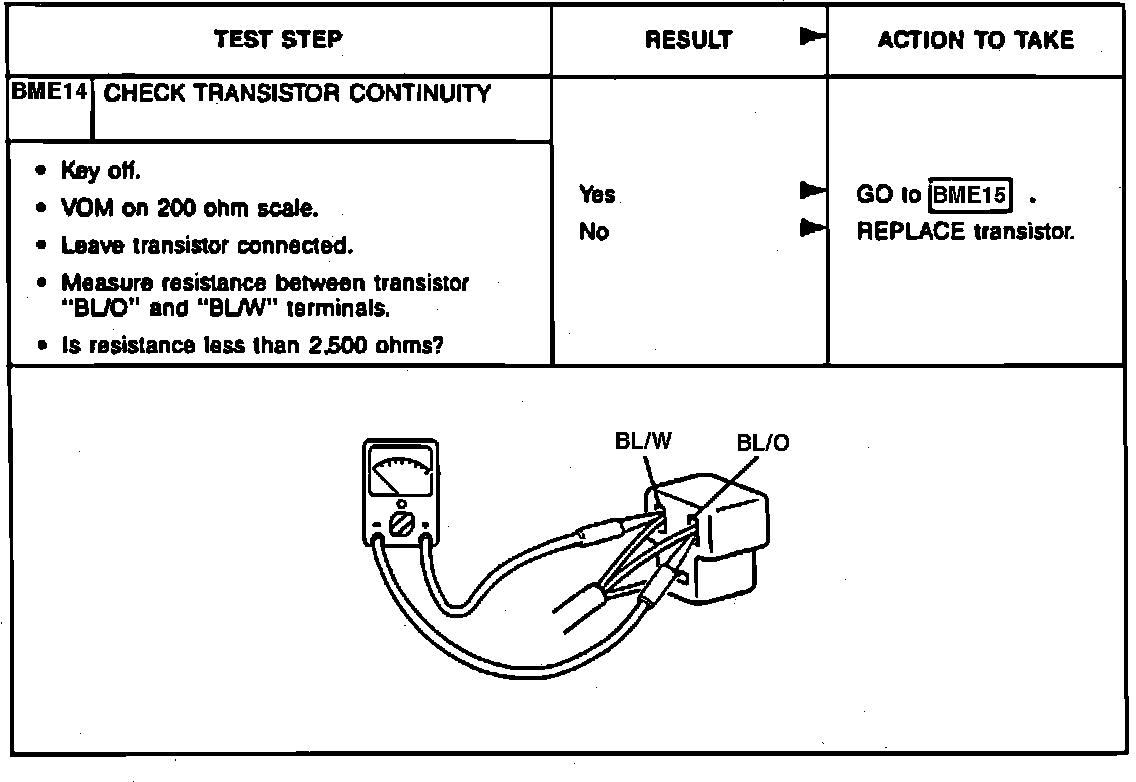

Fig. 16 Blower Motor Diagnosis (BME14).:
