Windshield Washer Control Module: Locations

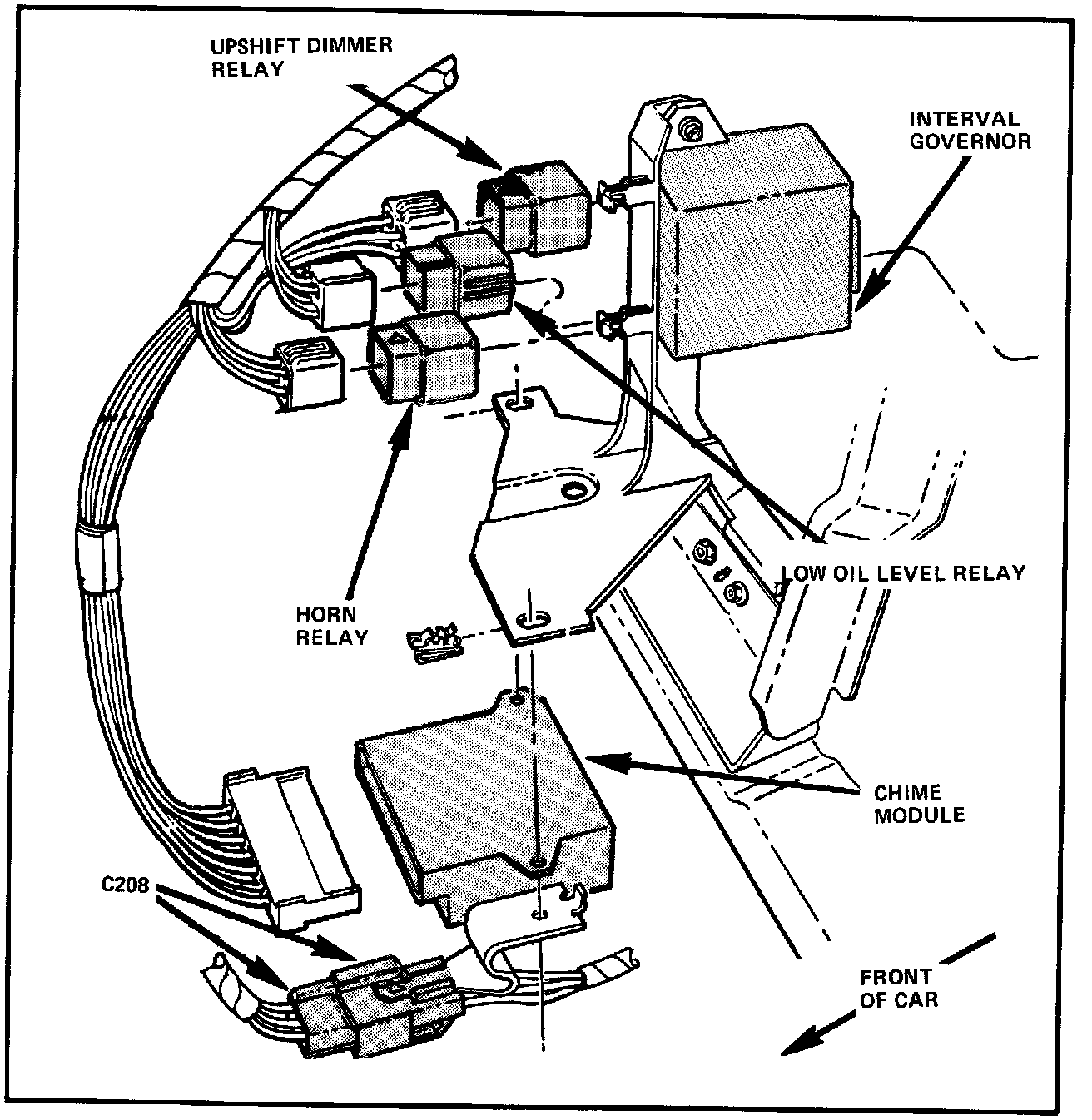

View 121-1 Behind Center Of I/P:

The Windshield Wiper/Washer Interval Governor is located behind the center of the Instrument Panel, on the Instrument Panel brace.
