Ford
>>
1989
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Switch
>>

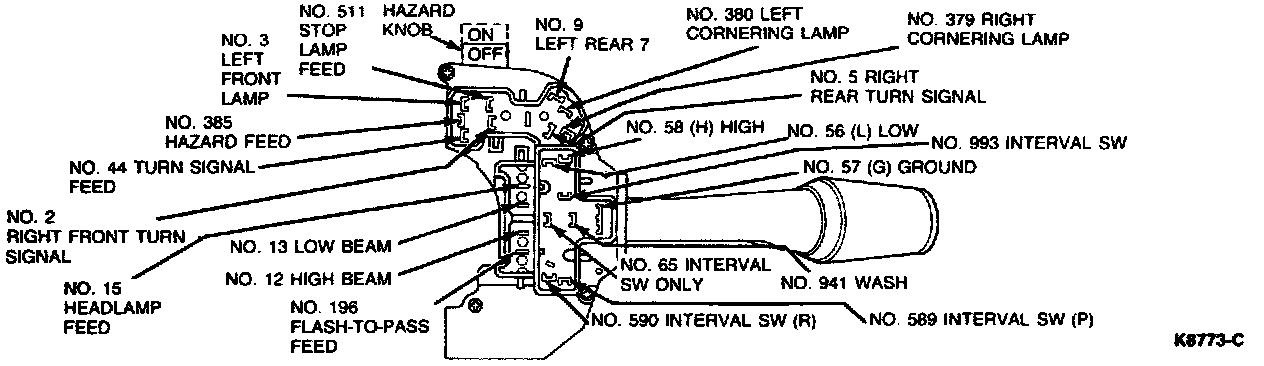

Multifunction Switch
Multifunction Switch

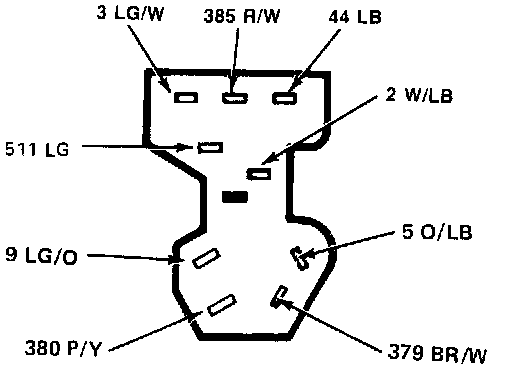

Multi-Function Switch Connector View:
