Integrated Control Relay Module
>>
Manual Transaxle
Manual Transaxle

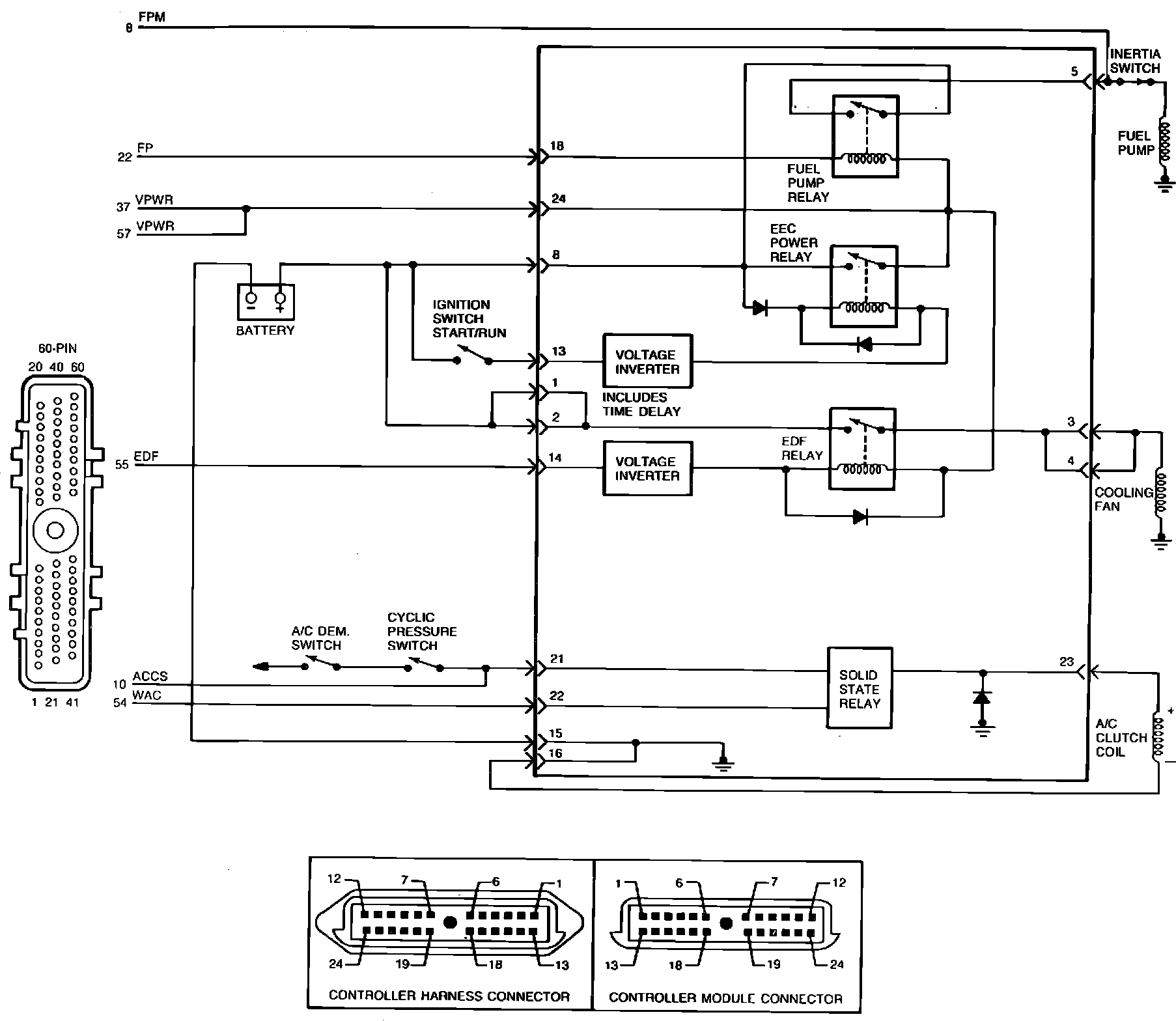

Wiring Schematic - Integrated Controller:

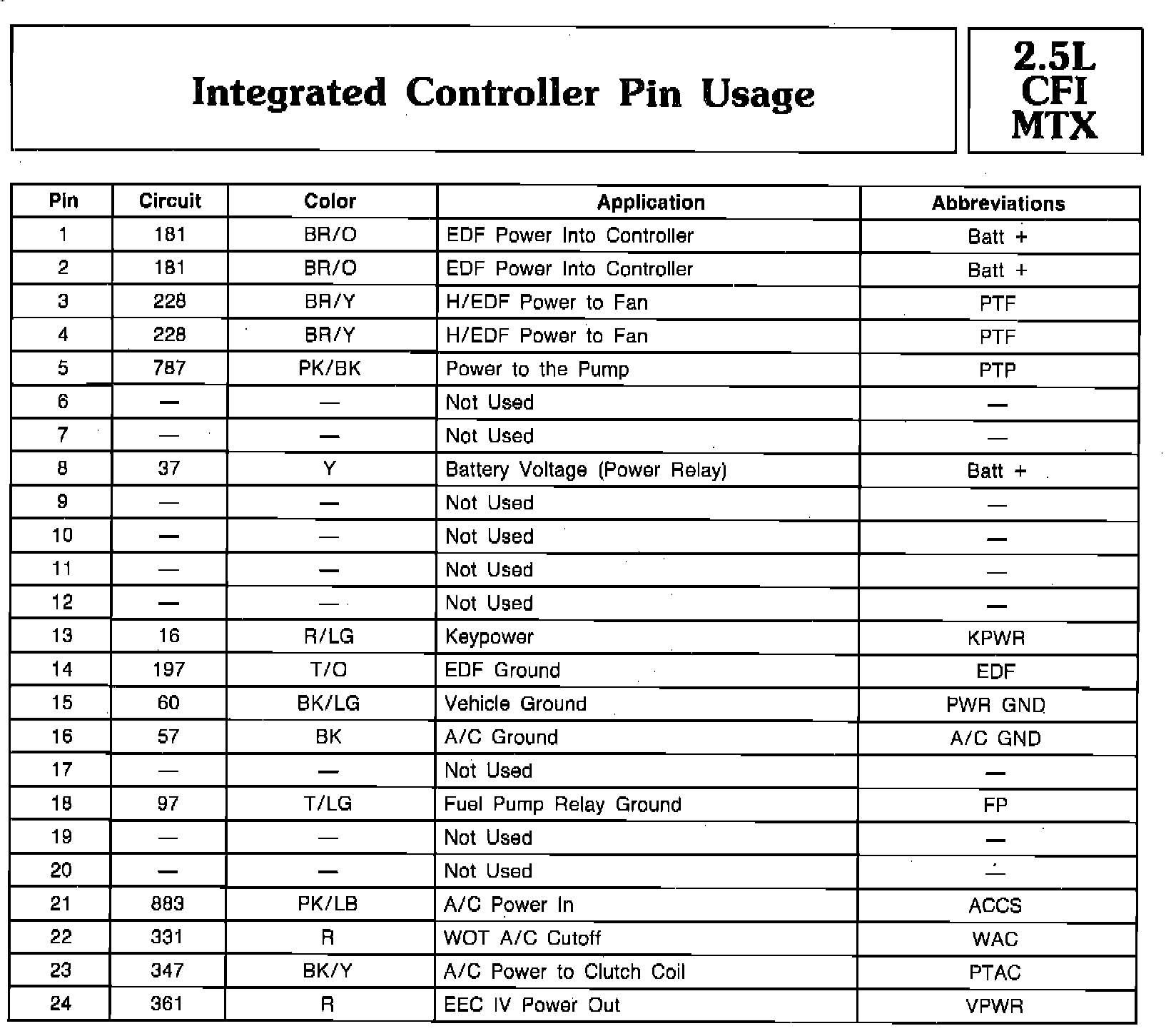

Pin Usage - Integrated Controller:
