Engine Control Module
Engine Control Module

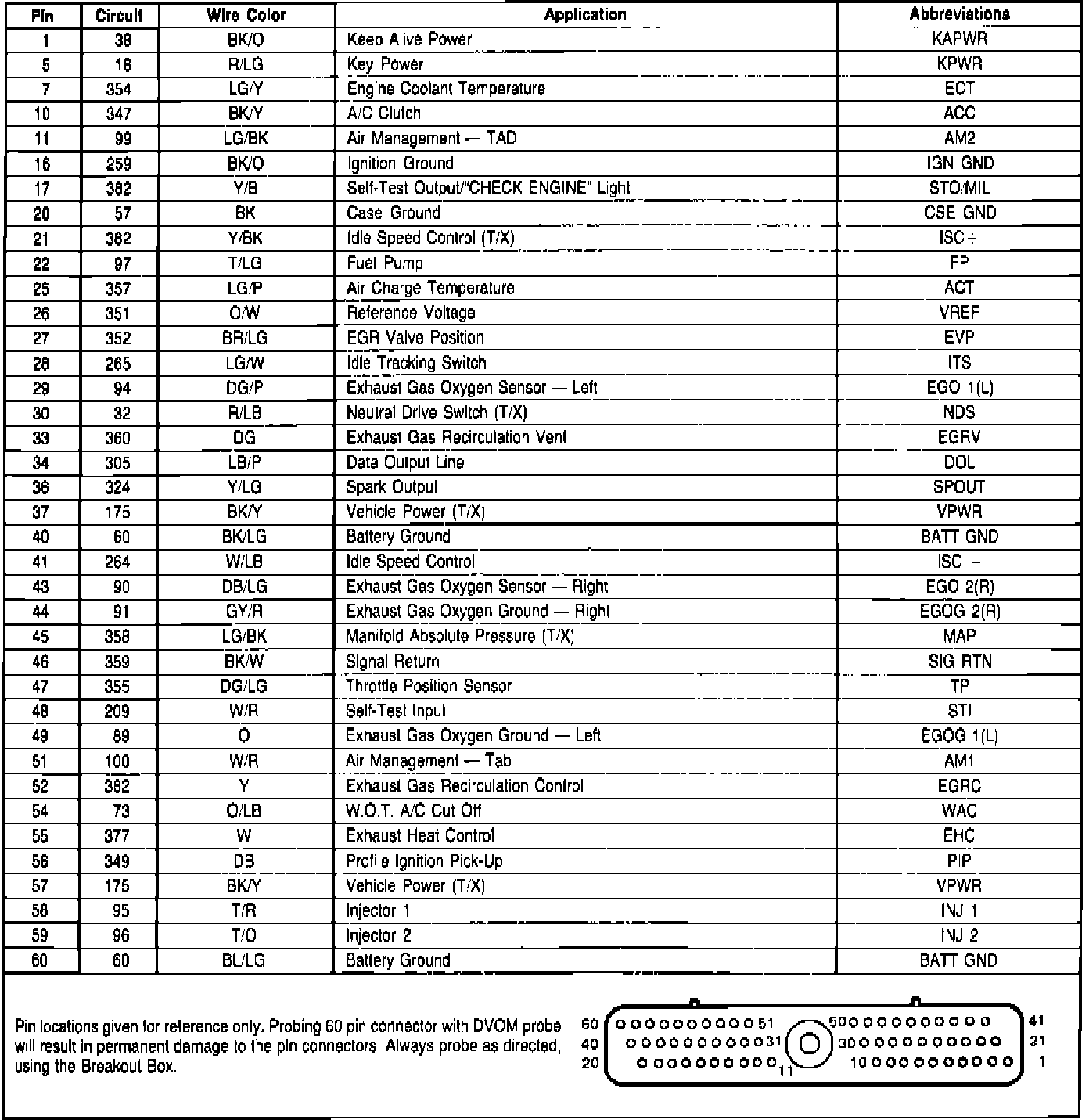

Fig. 317 EEC-IV module connector pin usage. 1987 V6-232 CFI engine:
