Integrated Controller Schematic

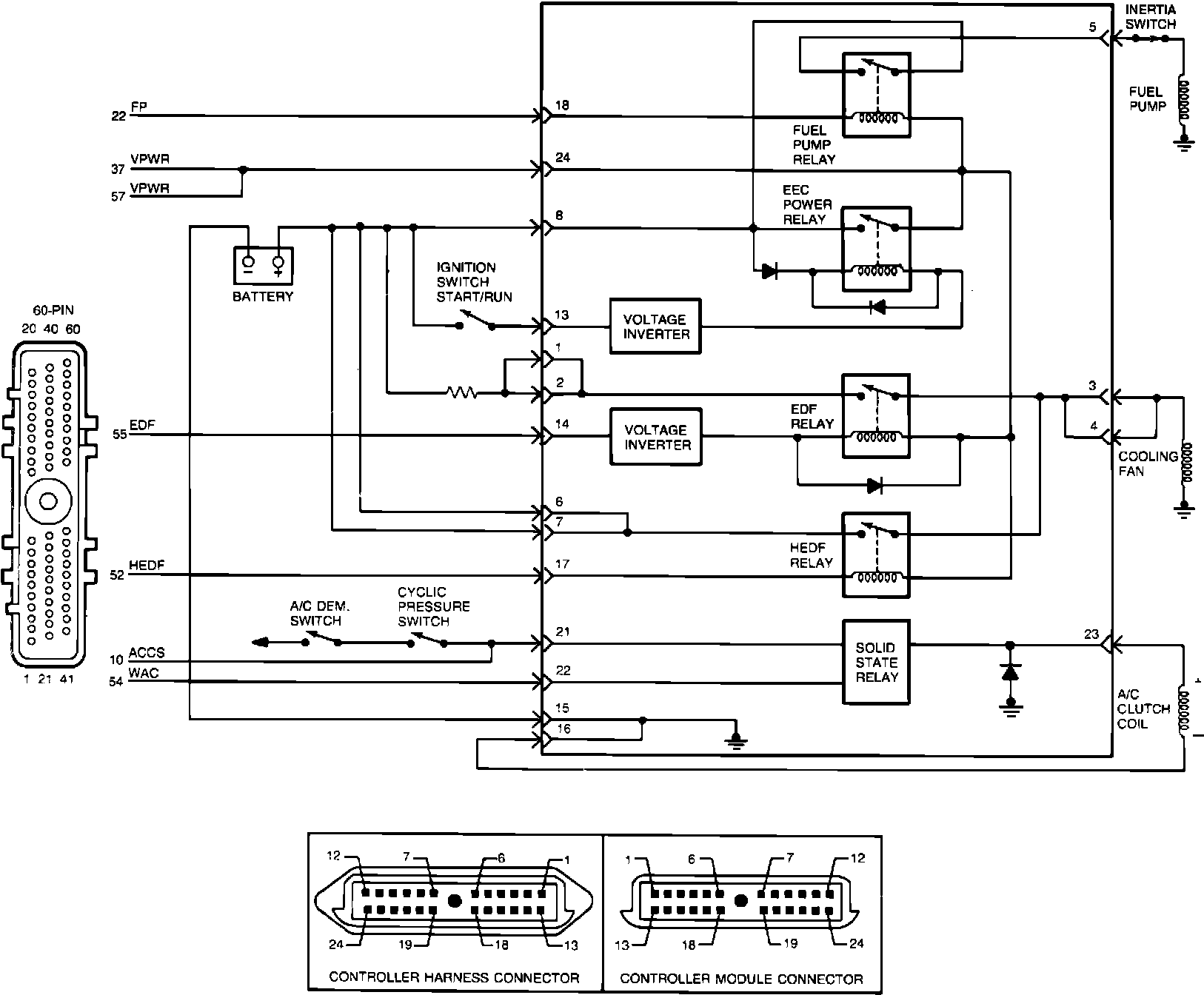

Wiring Schematic - Integrated Controller:

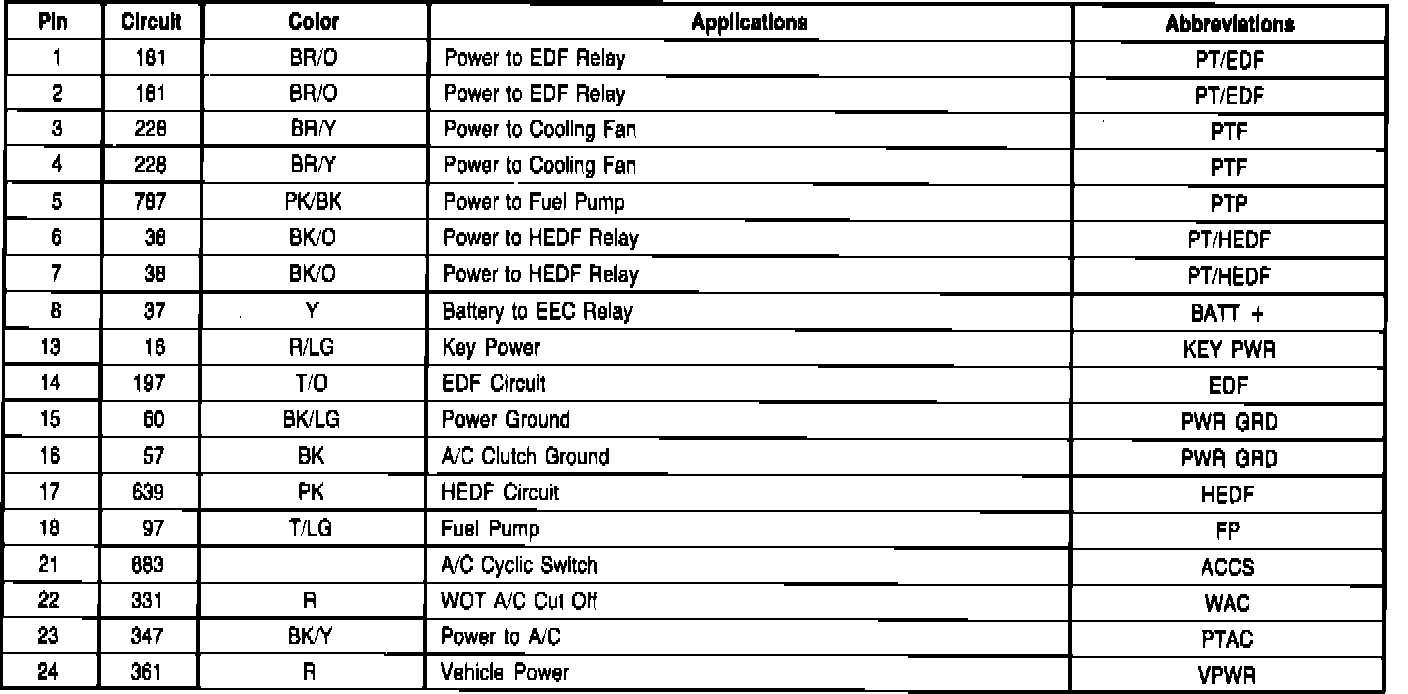

Pin Usage - Integrated Controller:
