Connector Views
>>
Engine Control Module
>>
With Automatic Transmission
With Automatic Transmission

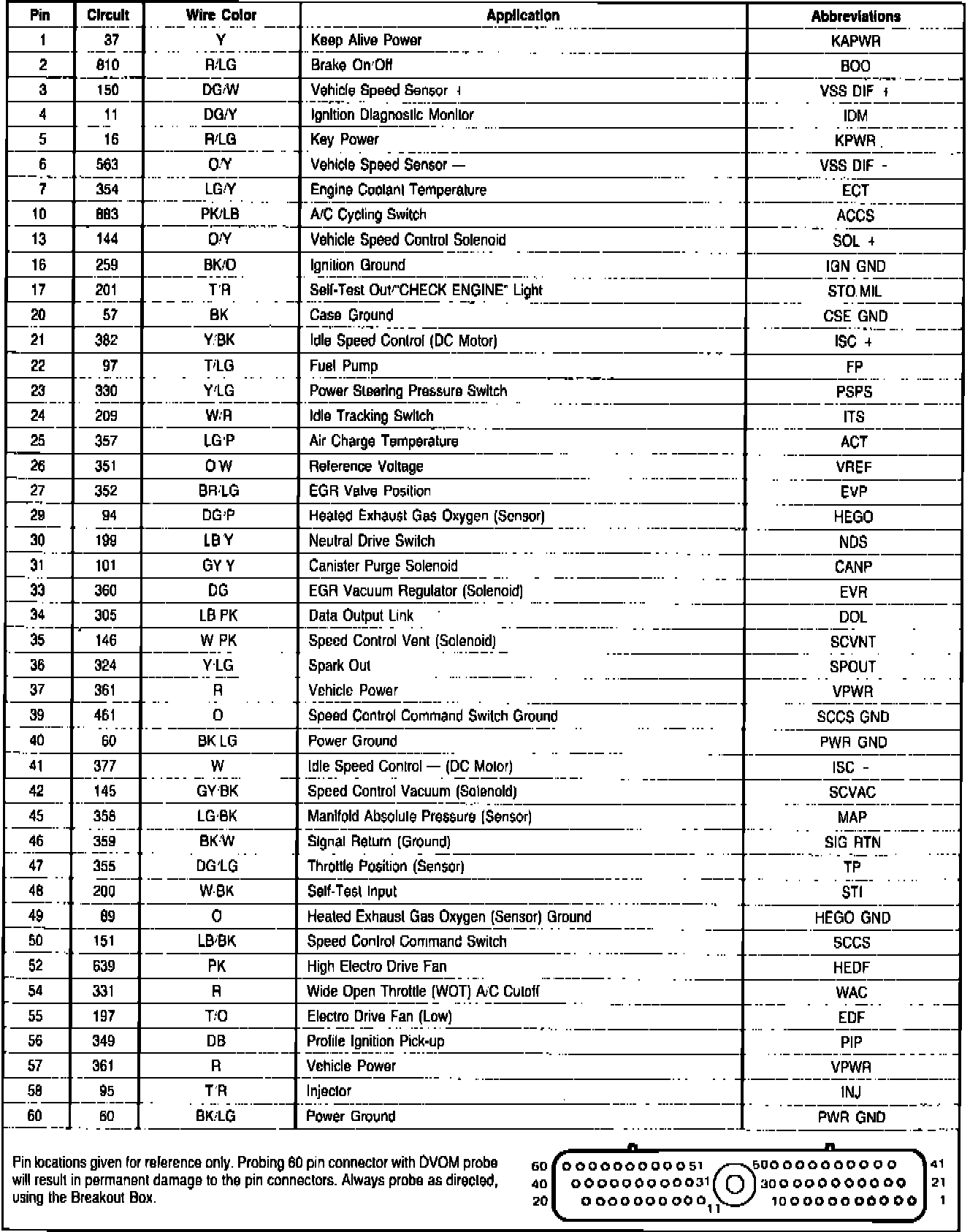

Pin Usage - EEC-IV Module Connector:
